Elo 2002L Monitöründeki VESA Montajı Nedir?

Bu makale Elo 2002L monitörde hangi tür montaj olduğunu sağlar

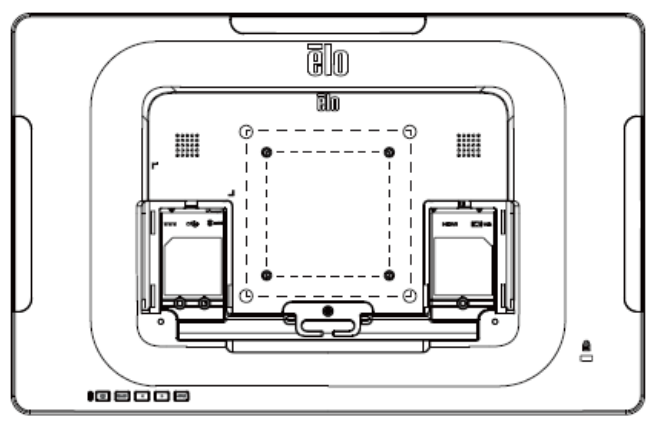

Elo ET2002L üzerindeki Arka VESA Montajı:

2002L dokunmatik monitörlerde, monitörün arkasında M4 vidaları için dört delikli 75x75mm ve 100x100mm montaj deseni sağlanmaktadır. Bu montaj arayüzüne erişmek için bir Phillips tornavida kullanarak standı çıkarın. VESA FDMI uyumlu montaj şu şekilde kodlanmıştır: VESA MIS-B, 75, C ve VESA MIS-B, 100, C.
