Elo 1717L Monitörde VESA Montajı Nedir?

Bu makale, Elo 1717L monitöründeki montaj seçeneğini sağlar

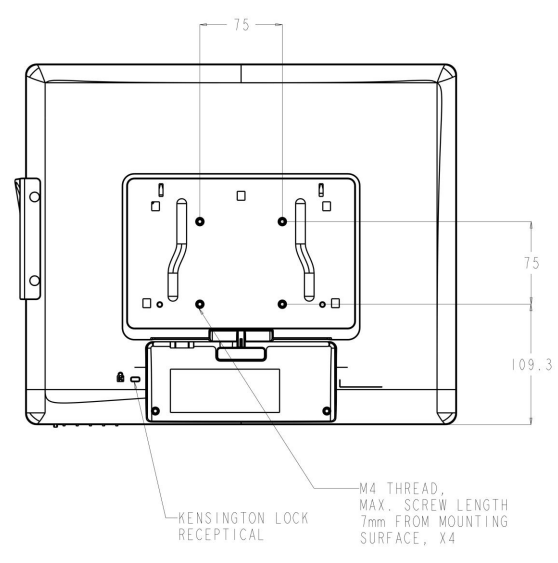

Elo 1717L monitördeki Arka VESA Montajı:

1717L dokunmatik monitör için monitörün arkasında M4 vidaları için dört delikli 75x75mm montaj deseni sağlanmıştır. Bu montaj arayüzüne erişmek için bir yıldız tornavida kullanarak standı çıkarın. VESA FDMI uyumlu montaj şu şekilde kodlanmıştır: VESA MIS-B, 75, C.
