EloPOS Pack cihazındaki RJ-50 seri portunun pin düzeni nedir?

Bu makale, EloPOS Pack Cihazındaki RJ-50 Comport'un pin tanımını ve işlevini açıklar

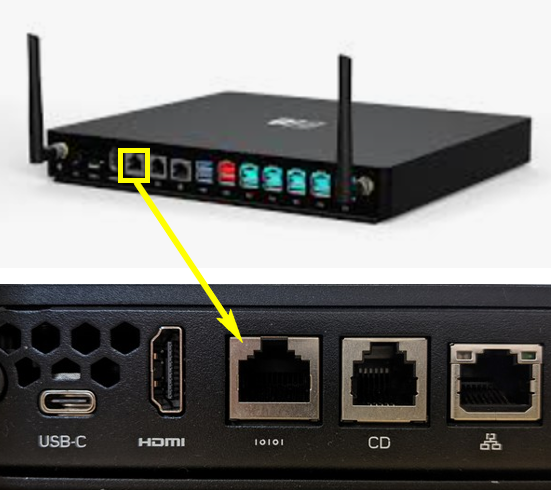

Aşağıdaki fotoğraflar, EloPOS Pack cihazındaki RJ-50 Comport'un yerini göstermektedir.

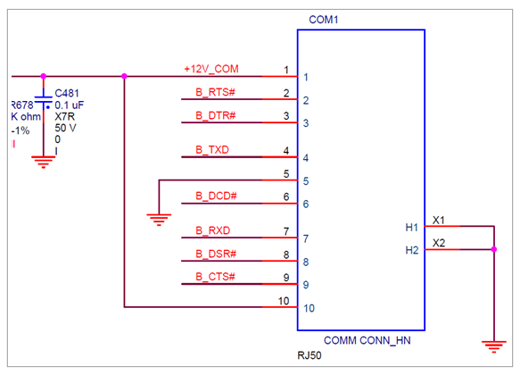

RJ-50 Comport Pin Tanımı ve sinyal hatları

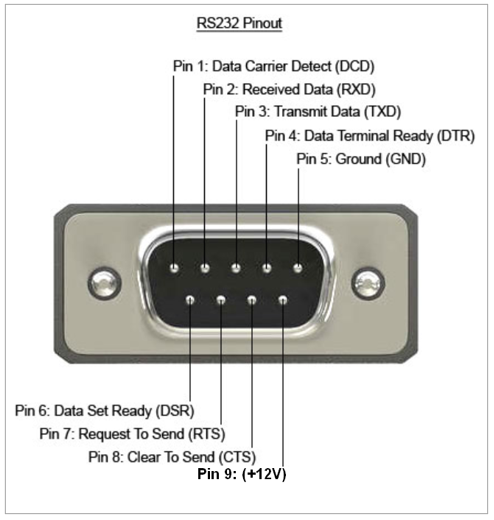

EloPOS Pack, RJ-50'den DB-9'a bir kablo ile birlikte gönderilmektedir. Aşağıda DB-9 konnektörünün pin çıkışı gösterilmektedir.
