1502LM Montaj Seçenekleri Nelerdir?

Bu makale 1502LM monitörünün montajı hakkında bilgi sağlamaktadır

Elo 1502LM için montaj yöntemleri

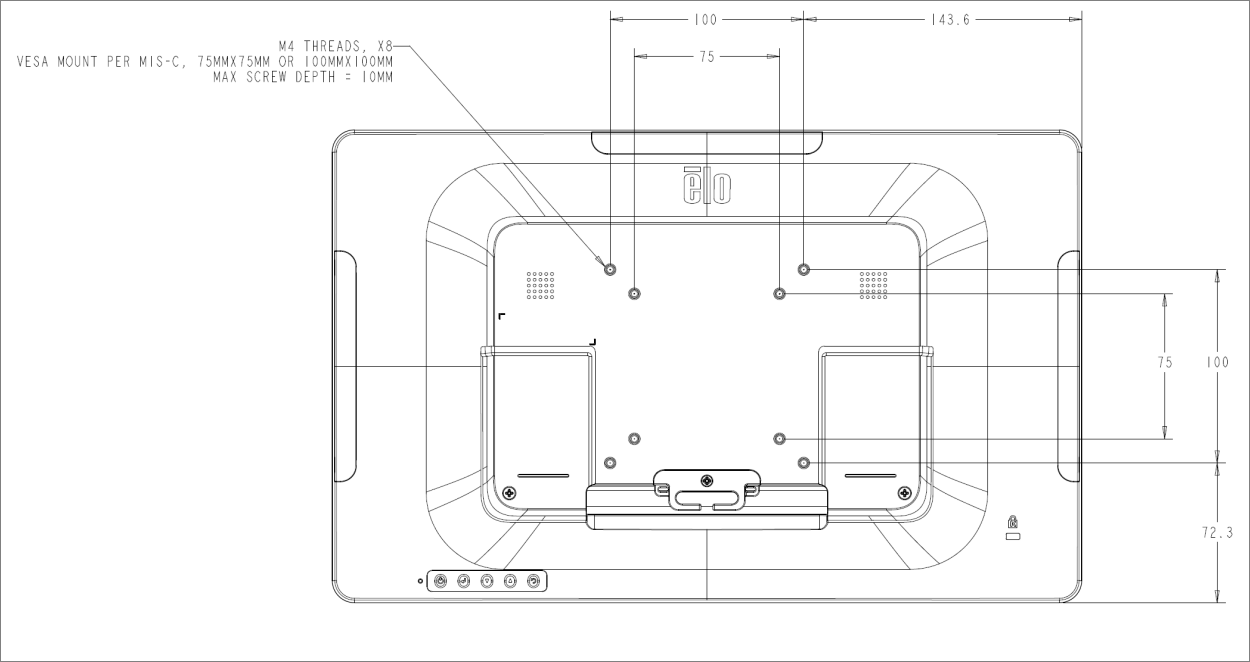

Arka VESA Montajı

  • Monitörün arkasına sabitlemek için M4 vidalar için 4 adet, 10mm uzunluğunda 75x75mm ve 100x100mm montaj deseni sağlanmıştır.
  • Bu montaj arayüzüne erişmek için bir yıldız tornavida kullanarak standı çıkarın. VESA FDMI uyumlu montaj kodu: VESA MIS-D, 75, C ve VESA MIS-D, 100, C olarak belirtilmiştir.

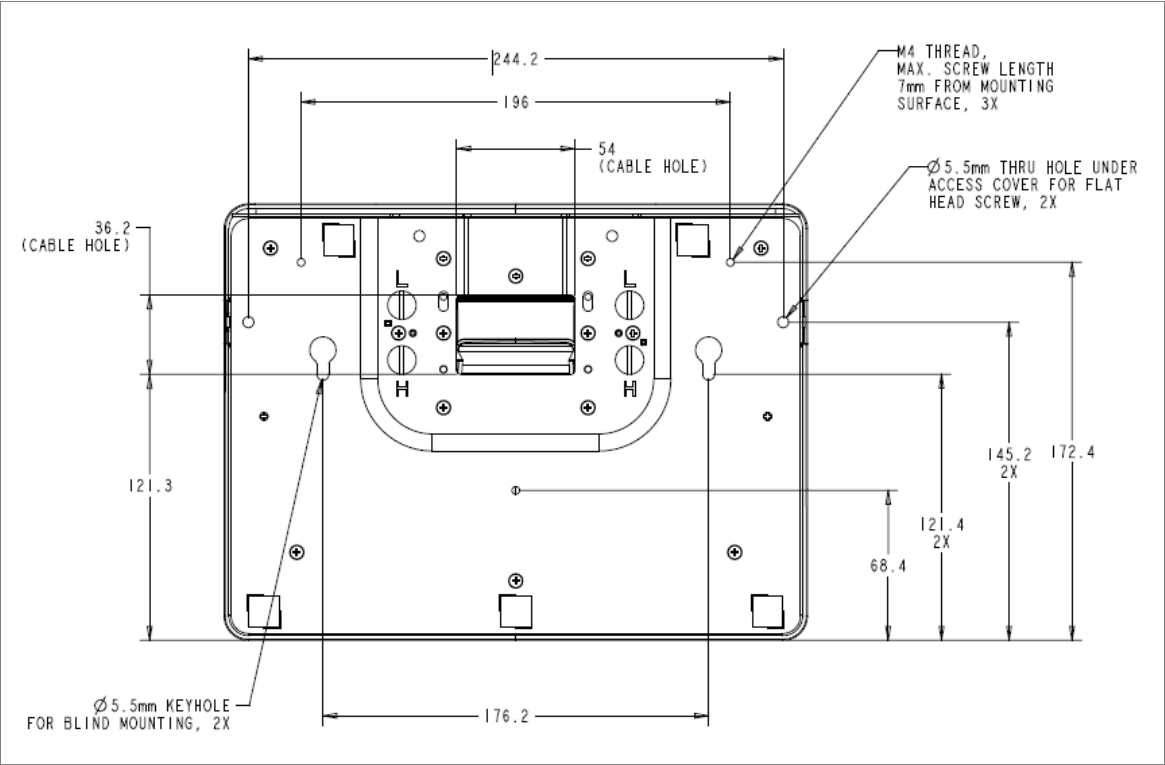

Stand taban montaj seçenekleri aşağıda gösterilmiştir.
