Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

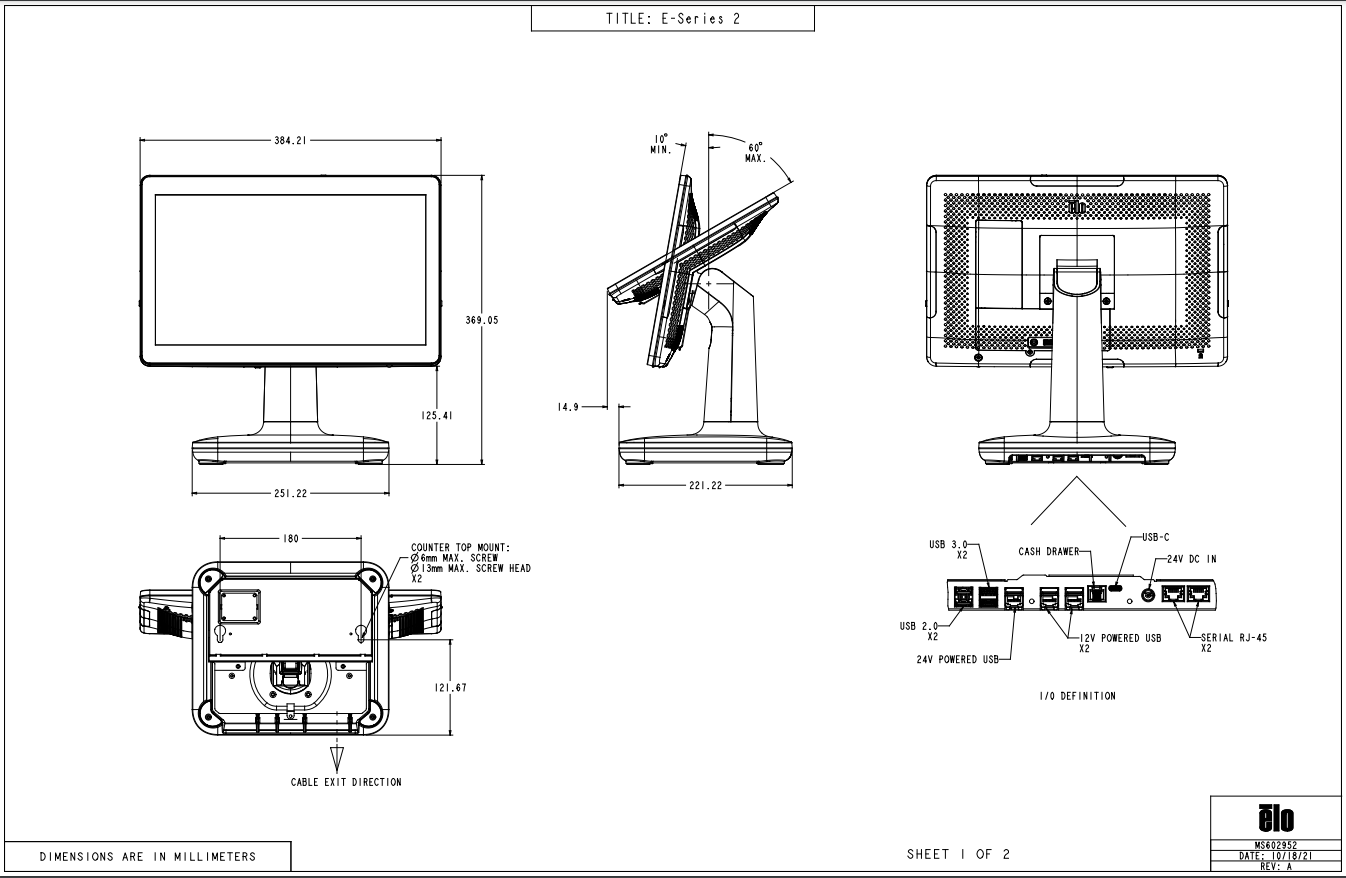

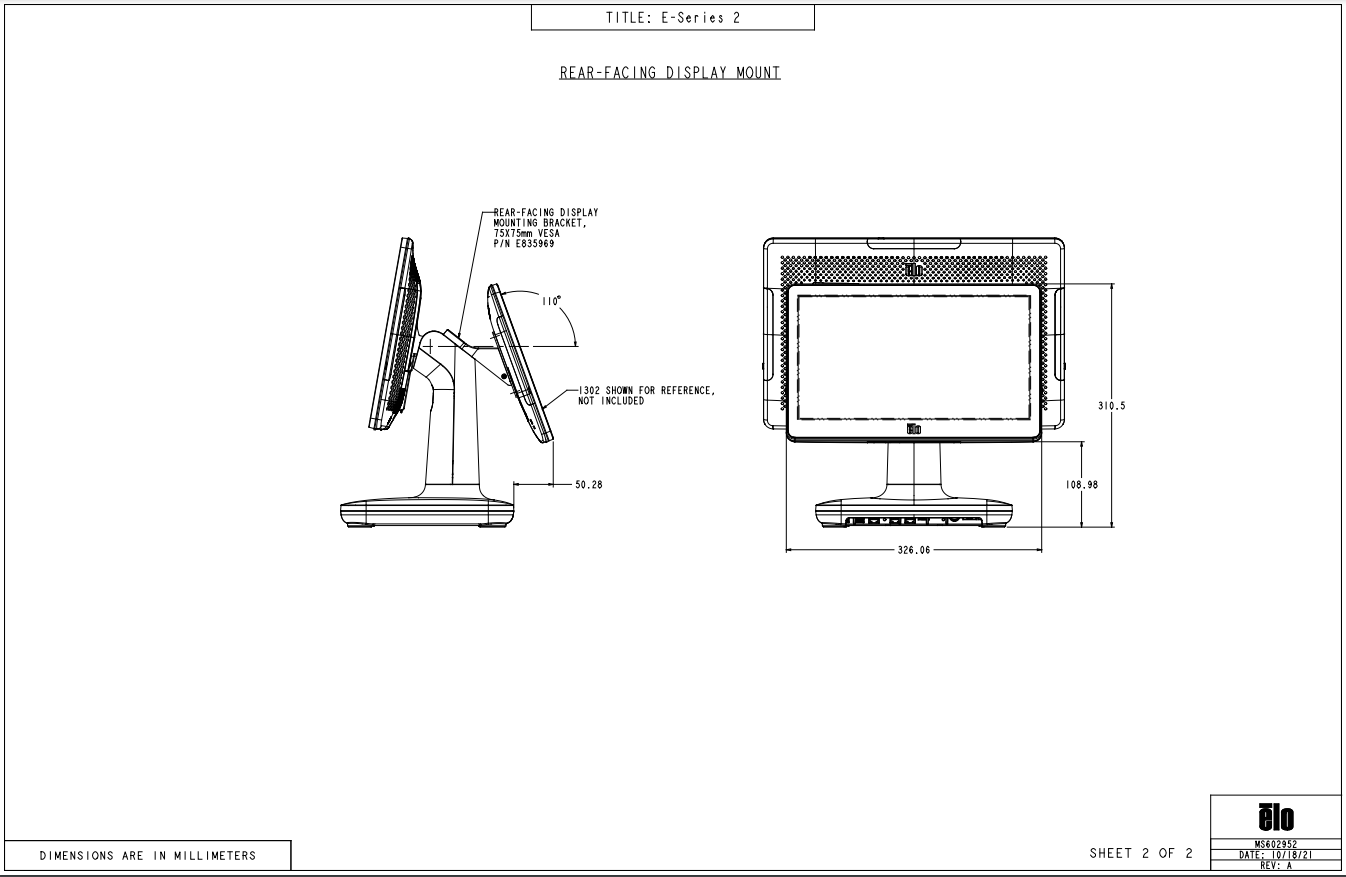

E-Seri 2 cihazı için boyutlandırma çizimini nerede bulabilirim?

Bu makale E-Serisi 2 AIO dokunmatik bilgisayar için boyut çizimini sağlamaktadır.

Çizim ayrıca Elo web sitesinden indirilebilir


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
