Elo Destek'e Hoş Geldiniz

Sürücüler, Ürün Bilgileri, Teknik Cevaplar ve daha fazlası.

EloPOS DB9'dan RJ45 kablosu ile X-Serisi DB9'dan RJ45 kablosu arasındaki farklar nelerdir?

Bu makale, EloPOS DB9'dan RJ45 kablosu ile X-Series DB9'dan RJ45 kablosu arasındaki farklarla ilgili bilgi içermektedir

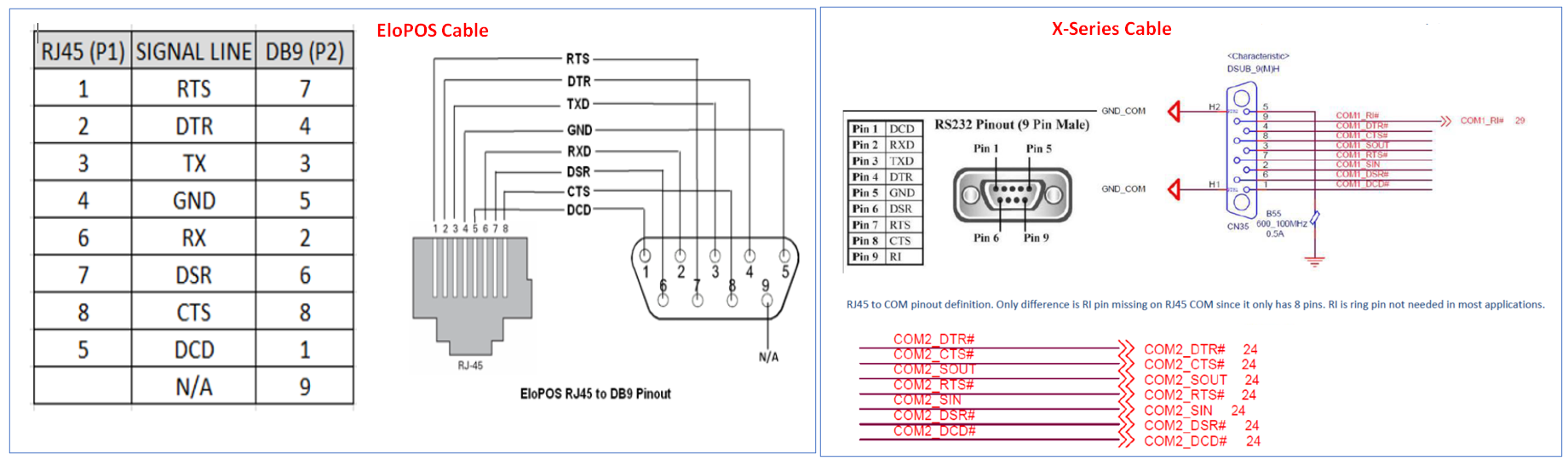

Aşağıda, EloPOS DB9'dan RJ45 kablosu ile X-Series DB9'dan RJ45 kablosu arasındaki pinout farkları gösterilmektedir. Bu iki kablo değiştirilebilir DEĞİLDİR.

Bu kabloların detaylı teknik özelliklerini aşağıdaki makalelerde görebilirsiniz:
