我在哪里可以找到2701 RSU IntelliTouch控制器的接口图和尺寸？

本文章提供了2701 RSU IntelliTouch控制器的引脚分配和尺寸

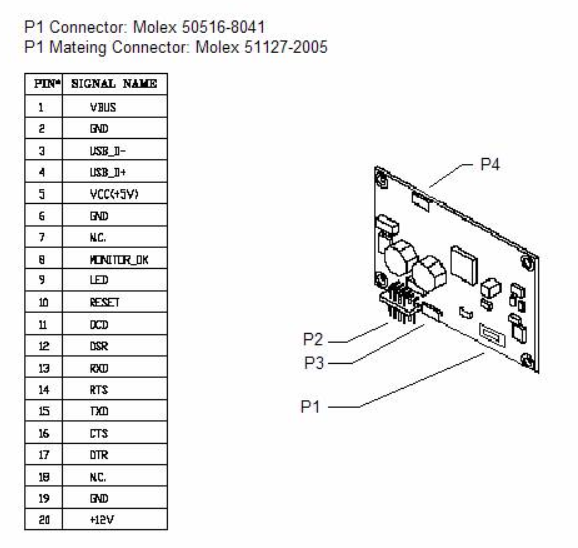

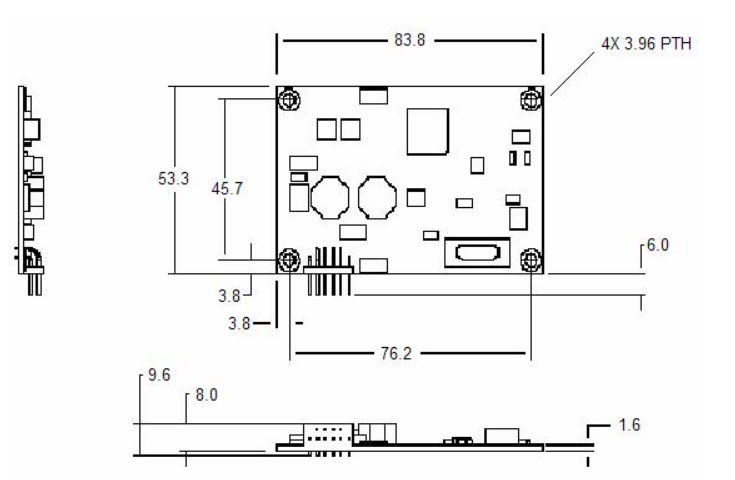

请参见下方2701 RSU IntelliTouch控制器的引脚分配和尺寸。
