欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到 IntelliTouch 2500S SmartSet 串行控制器的跳线和引脚布局？

本文提供了IntelliTouch 2500S SmartSet串行控制器的跳线和针脚分配

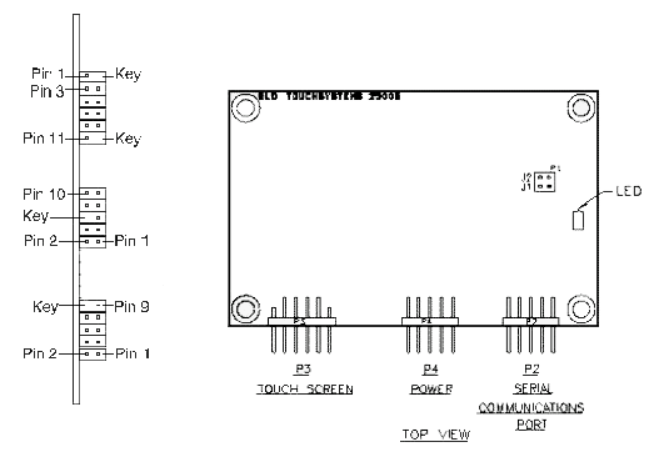

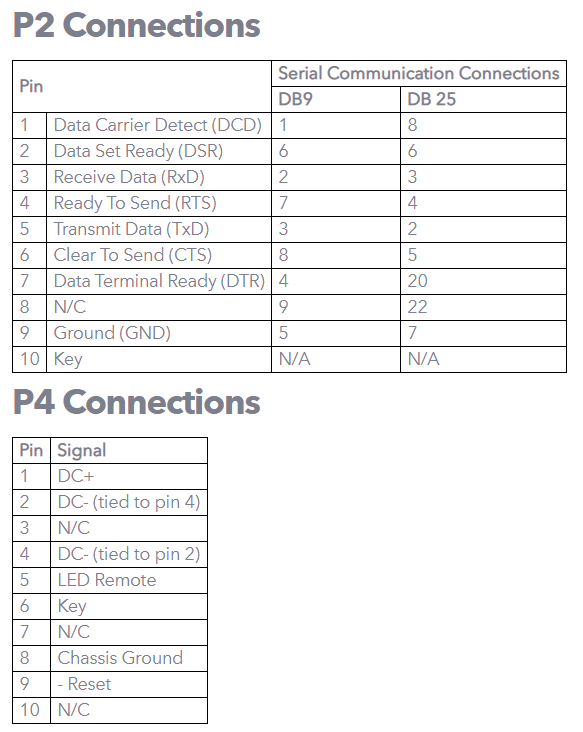

请参见下面的IntelliTouch 2500S SmartSet串行控制器的跳线和针脚分配。
