我在哪里可以找到 E044356 2 位置桌面支架的组装说明？

本文提供了E044356桌面支架的组装说明

组装说明：E044356，22英寸I系列的两档可调桌面支架

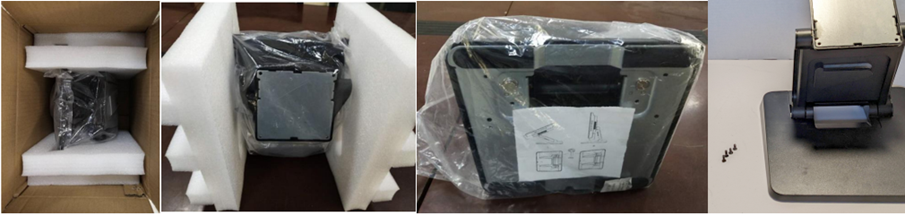

1. 从 包装箱和包装材料中取出支架和螺丝。

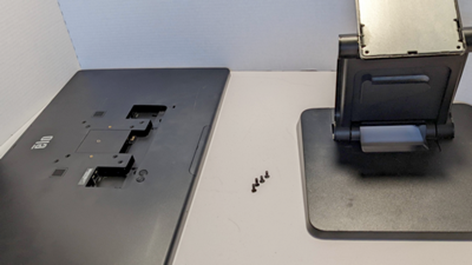

2. 将 22英寸I系列面朝下放在保护表面上。

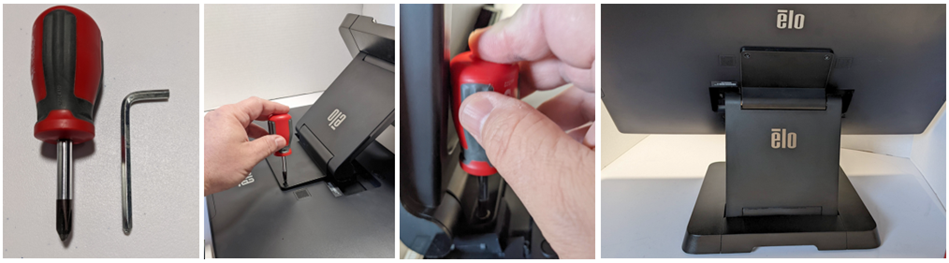

3. 将支架VESA支架放置在I系列背面的VESA安装孔上，插入所有4个VESA螺丝并用 十字螺丝刀（短的、小的或角型的螺丝刀都可以）拧紧
