EloPOS DB9 到 RJ45 电缆和 X 系列 DB9 到 RJ45 电缆之间有什么区别？

本文包含有关EloPOS DB9至RJ45电缆与X-Series DB9至RJ45电缆之间差异的信息

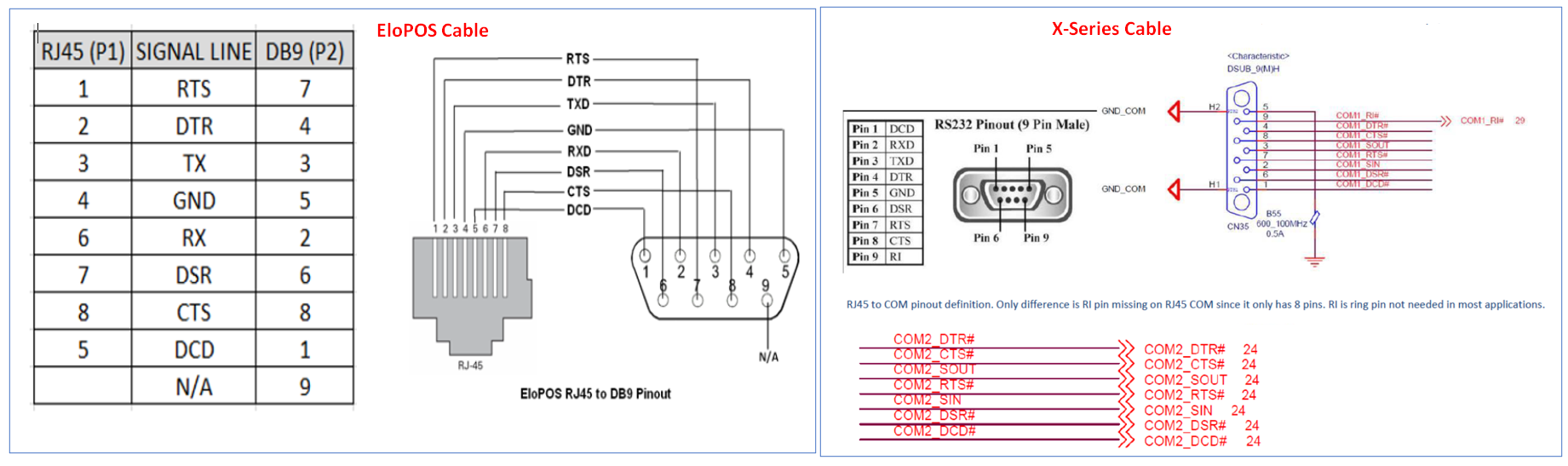

以下显示了EloPOS DB9至RJ45电缆与X-Series DB9至RJ45电缆之间引脚排列的差异。这两种电缆不可互换。

请参阅下面文章中有关这些电缆的完整规格：
