欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

E044356 ELO-STAND-22IN-GY-R 的 VESA 安装尺寸是多少？

本文提供E044356支架的VESA安装孔图尺寸

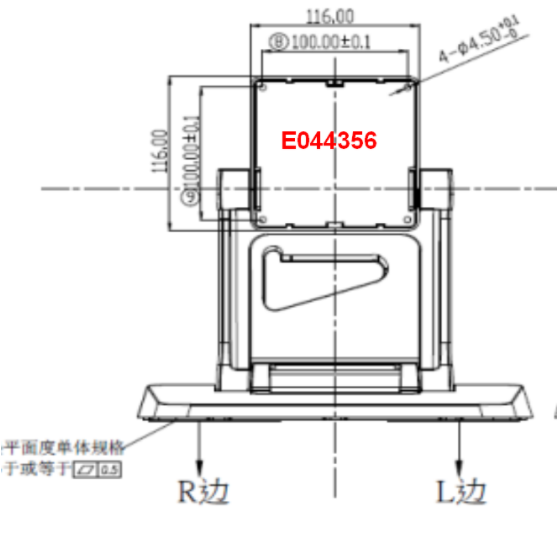

E044356的VESA安装尺寸为100mm，适用于22" I-Series互动标牌的2位置可调桌面支架。见下图。
