欢迎来到 Elo 技术支持中心

驱动程序、产品信息、技术解答等。

我在哪里可以找到 X-Series 支架的尺寸或图纸，部件编号：E154446？

本文提供了X系列支架的尺寸图，部件编号：E154446

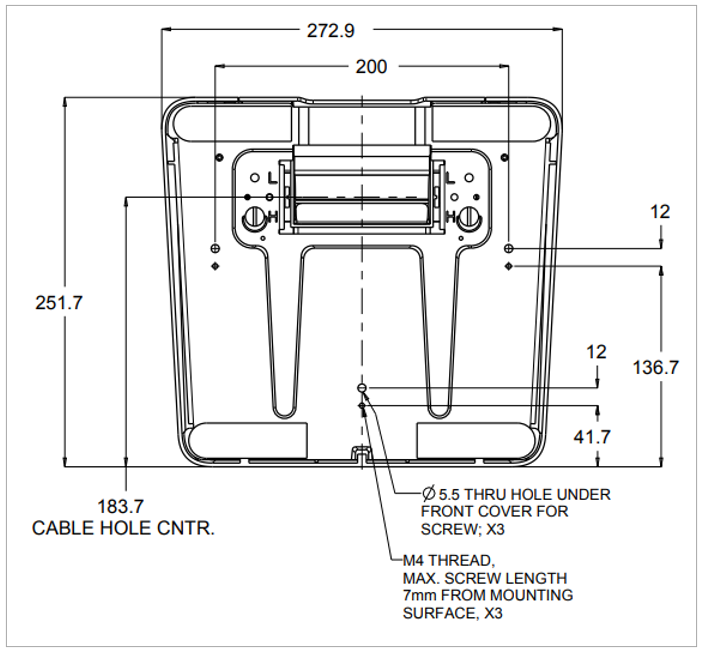

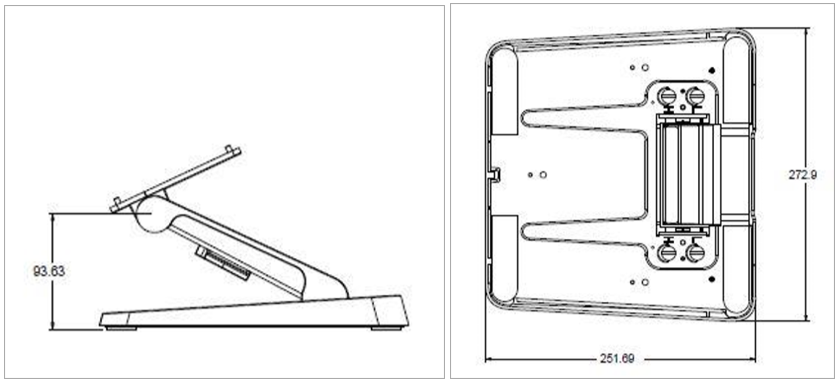

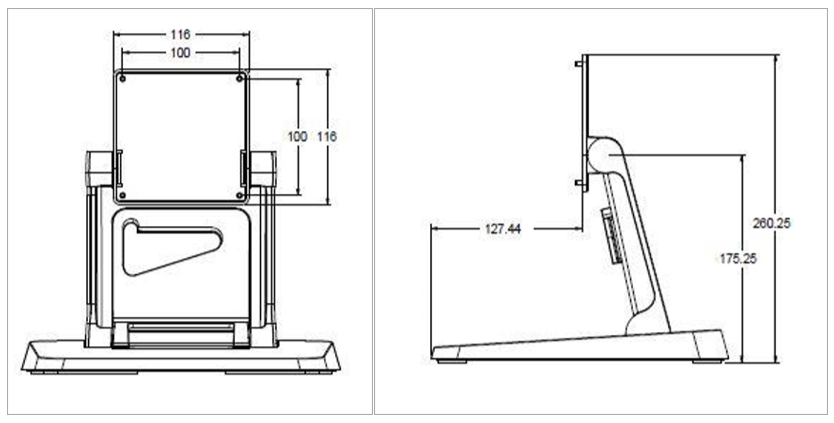

请参见以下X系列支架的尺寸图，部件编号：E154446
