Elo温度传感器Pro相机的用户手册在哪里可以找到？

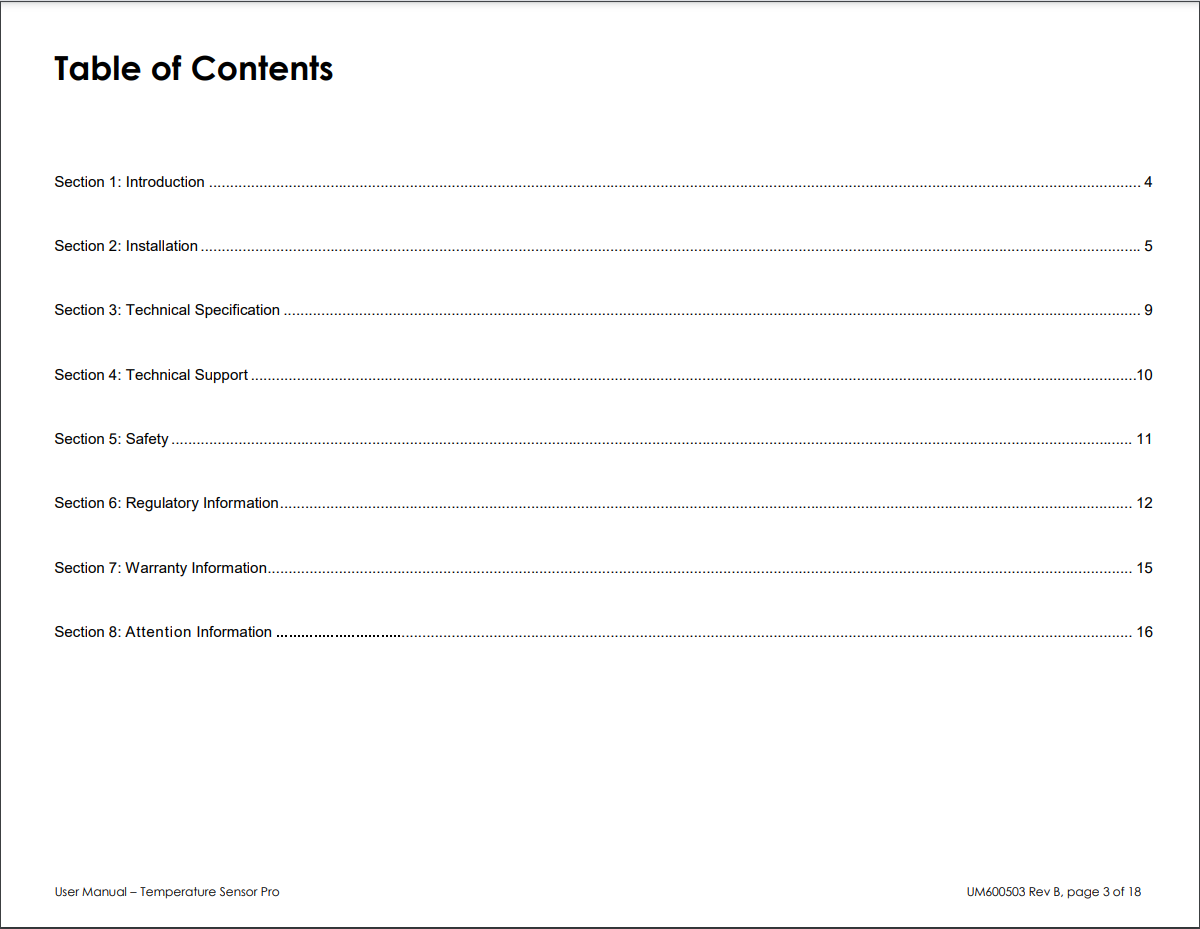

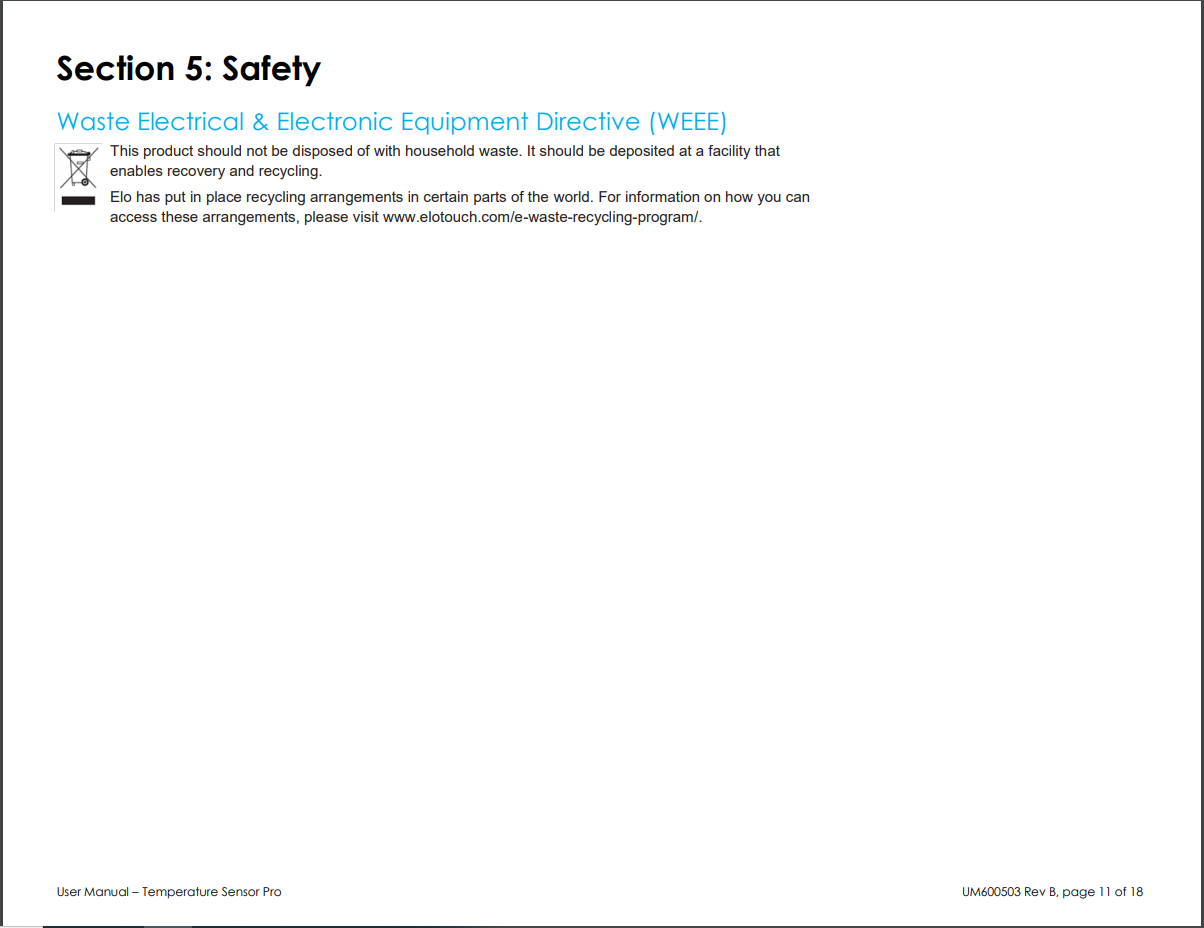

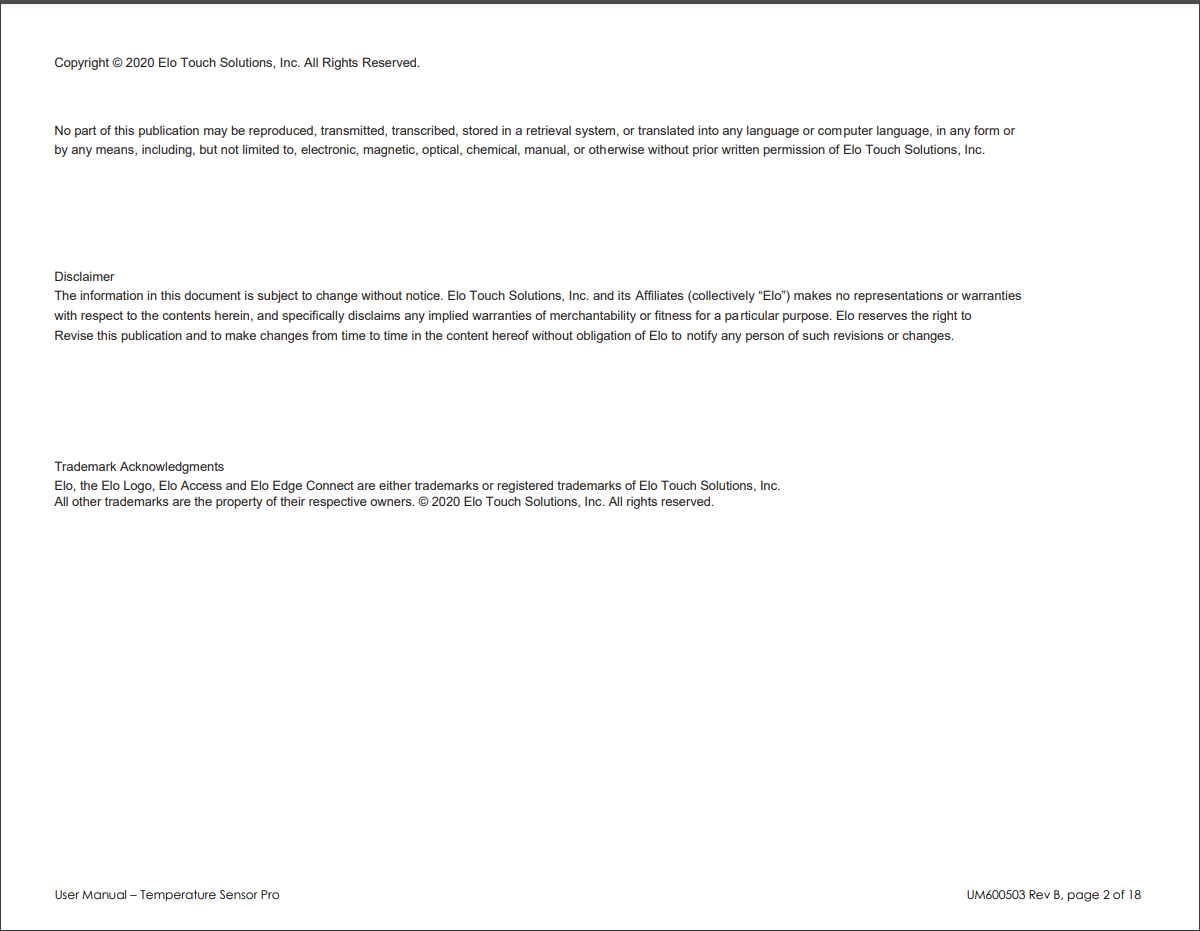

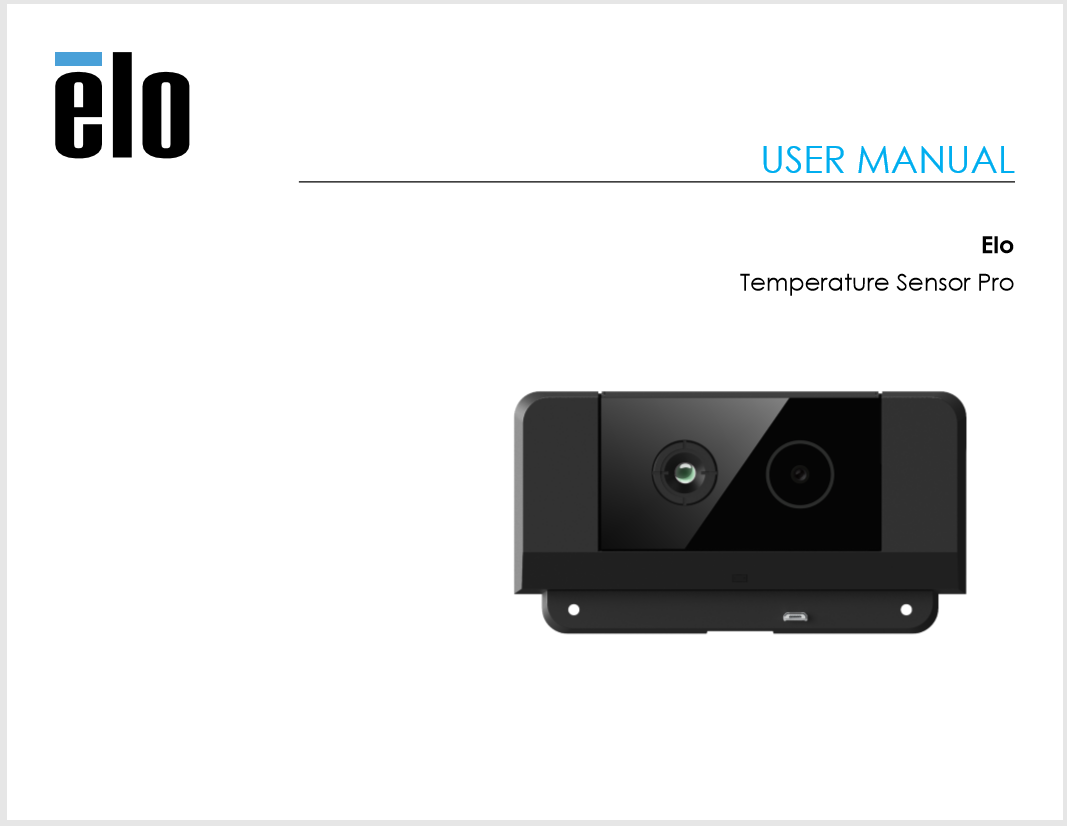

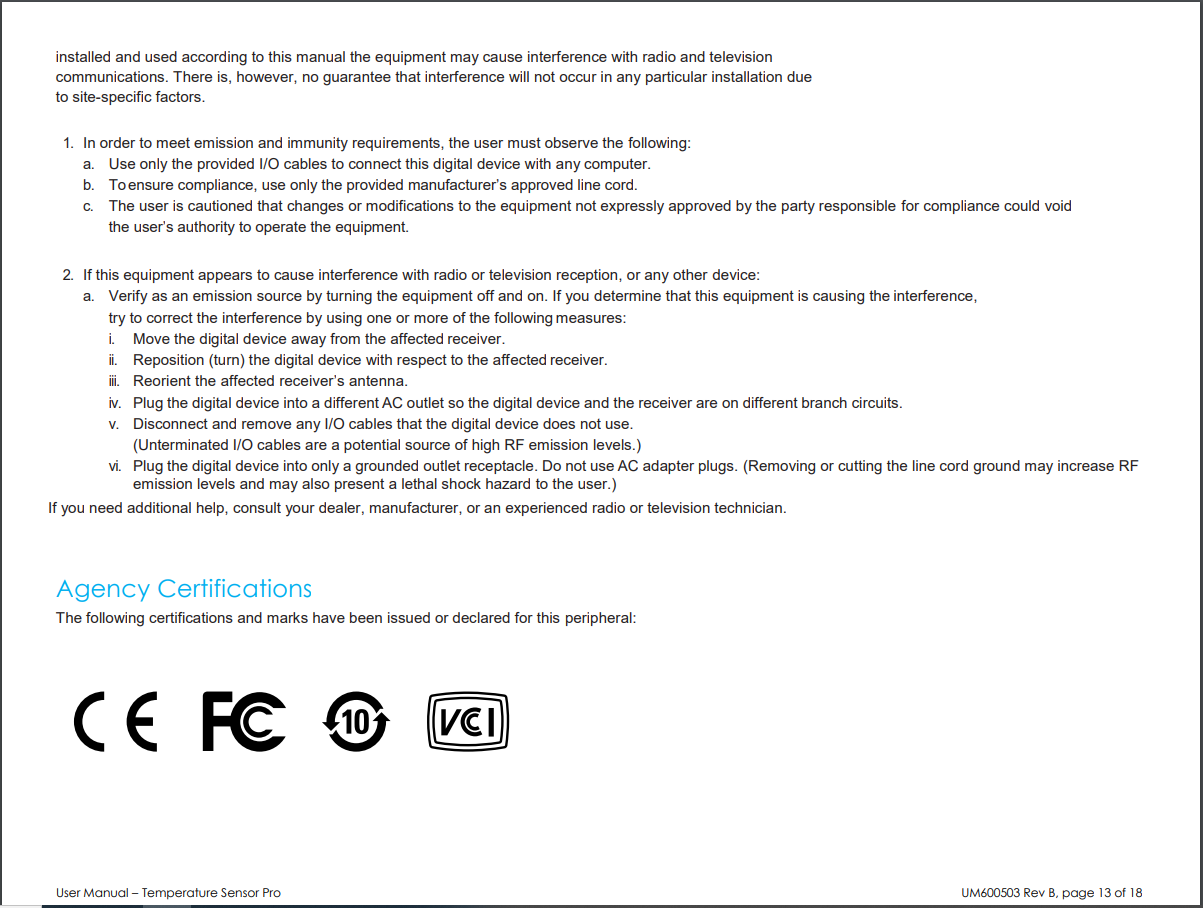

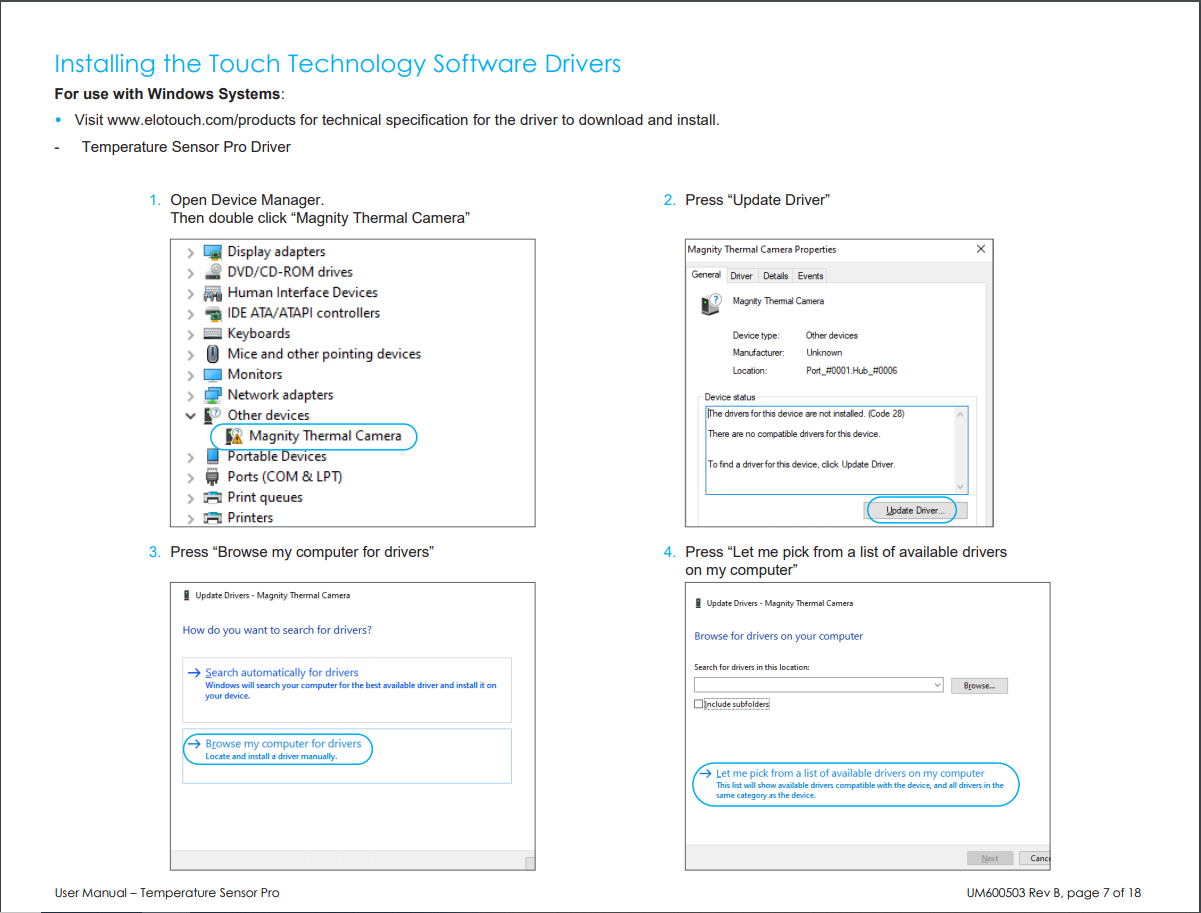

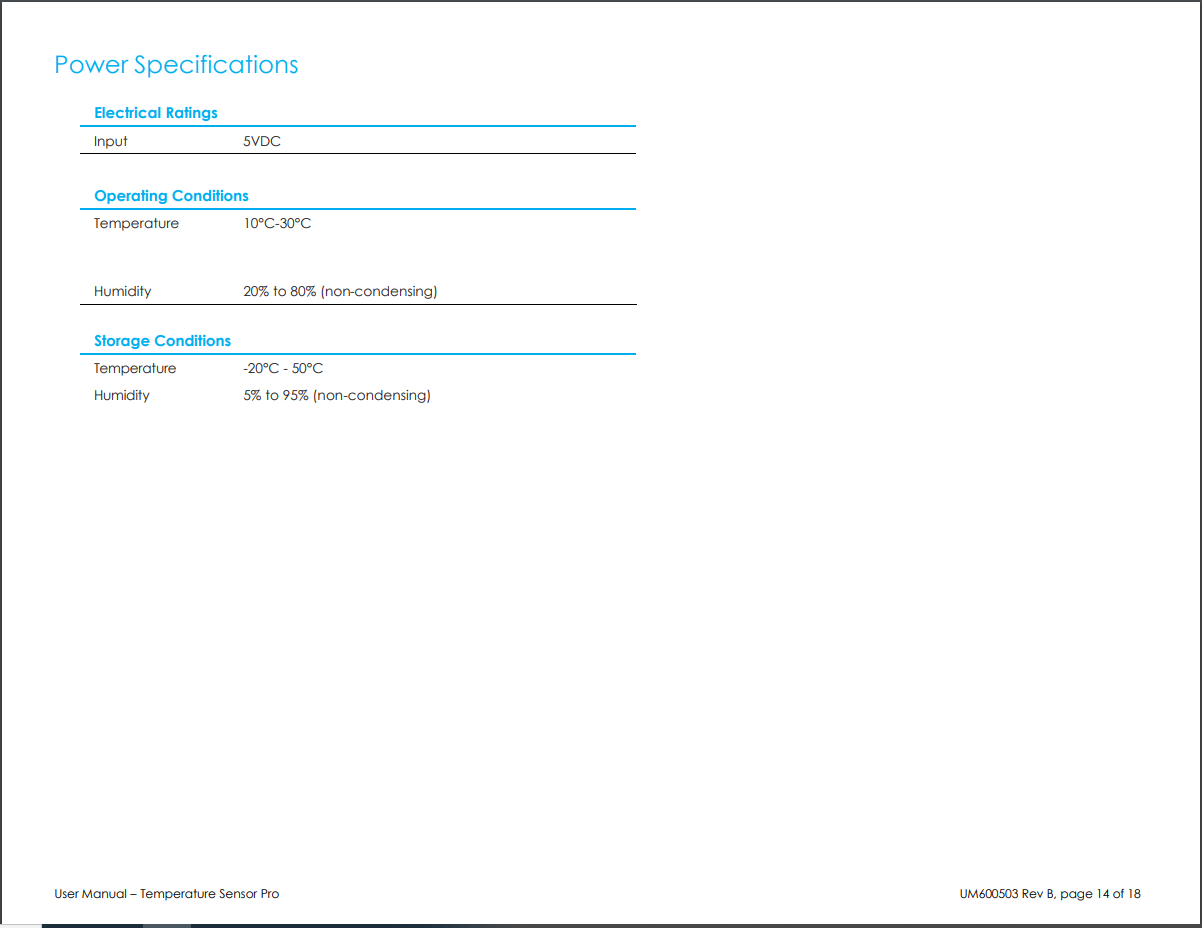

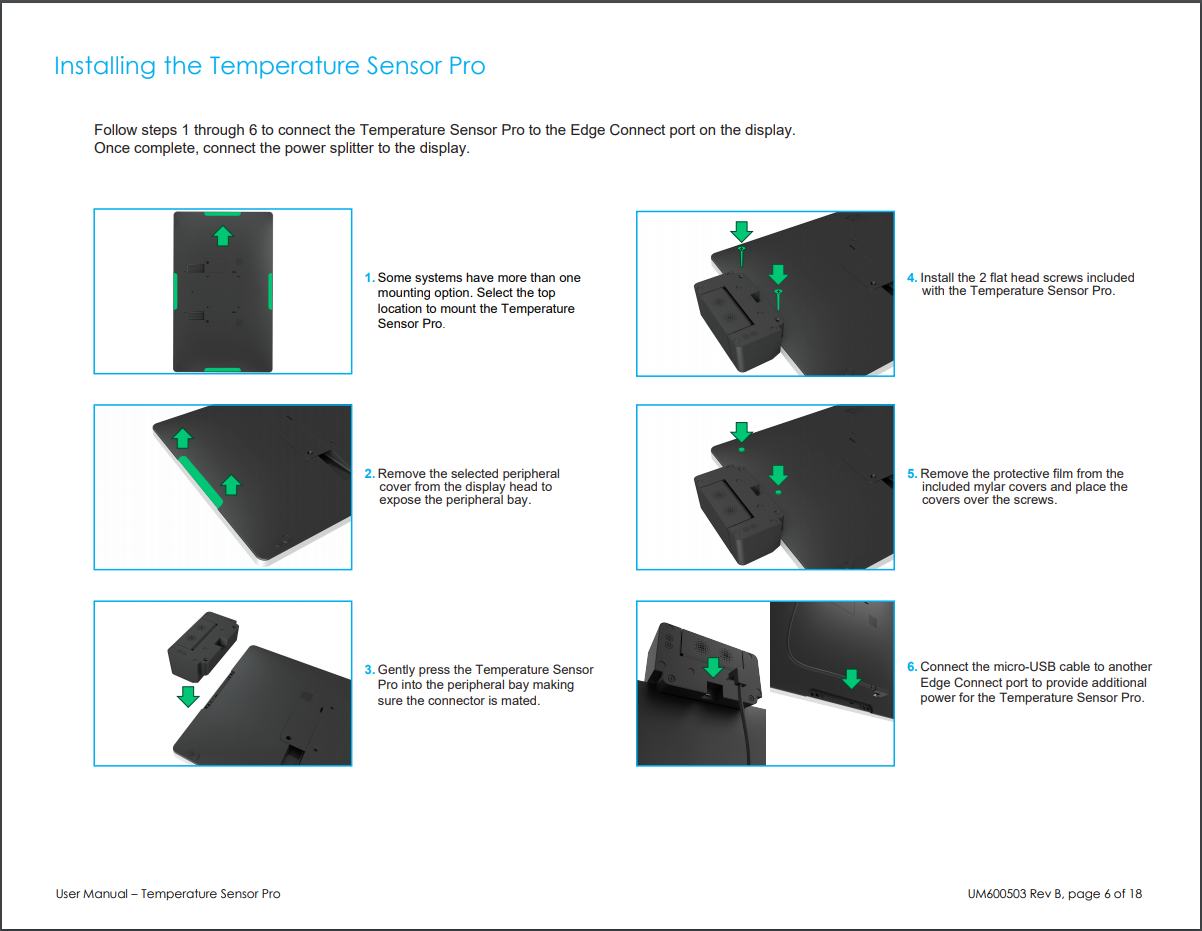

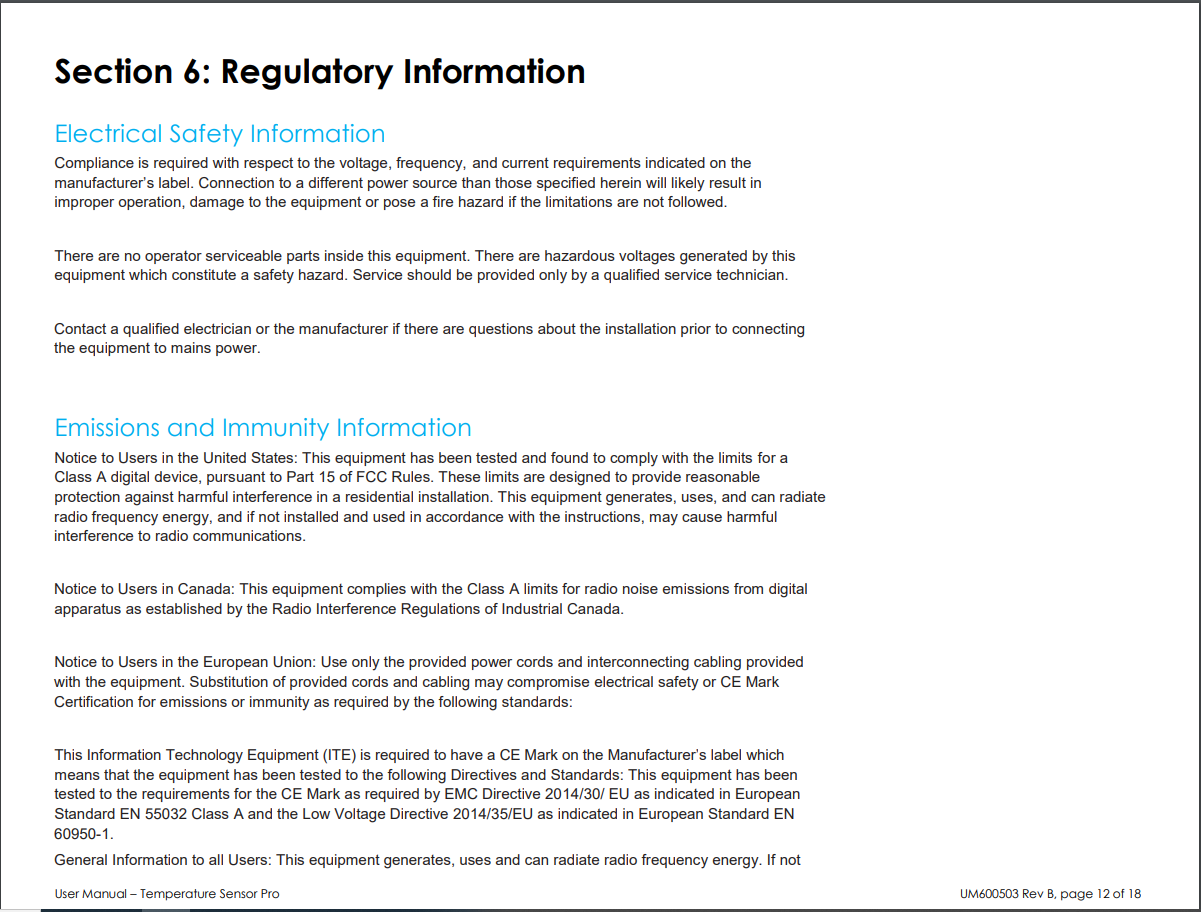

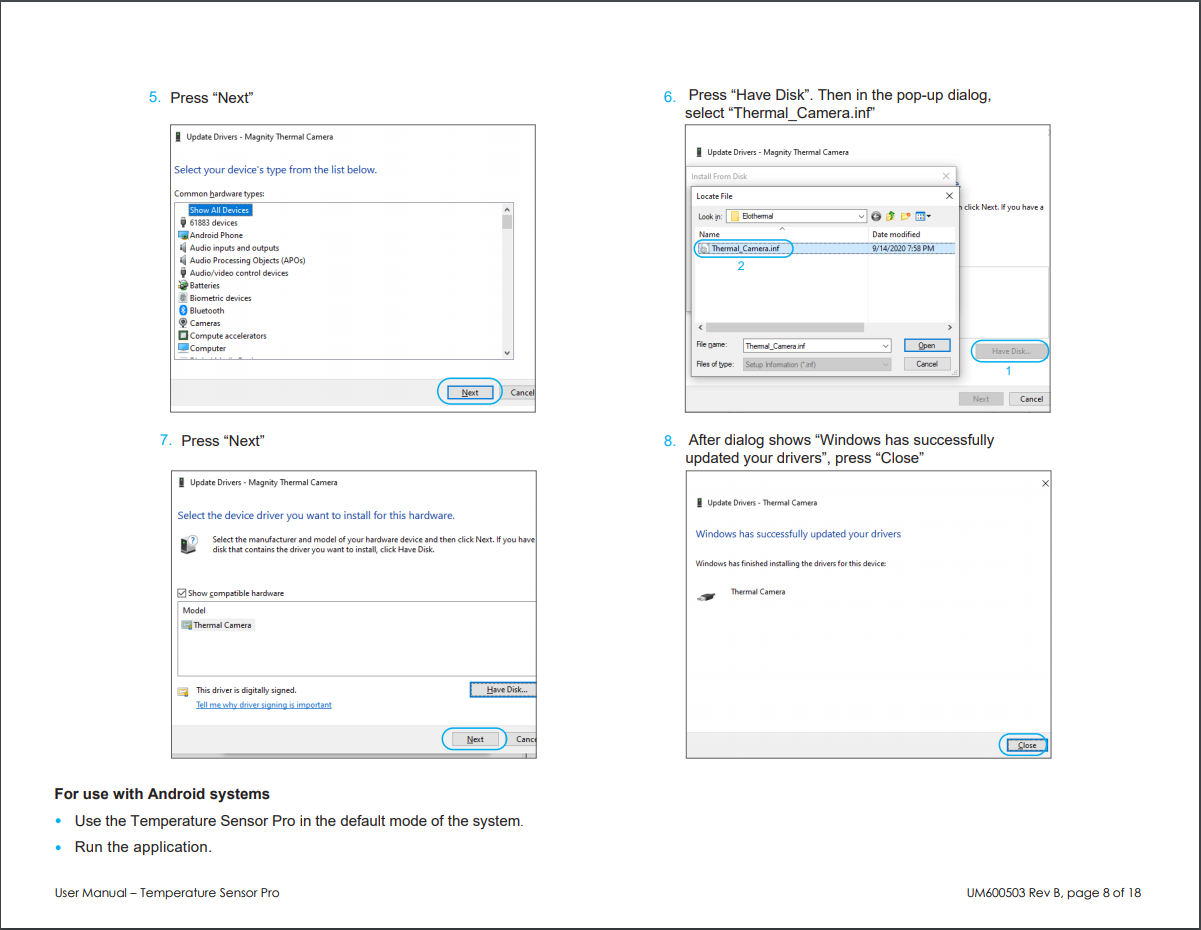

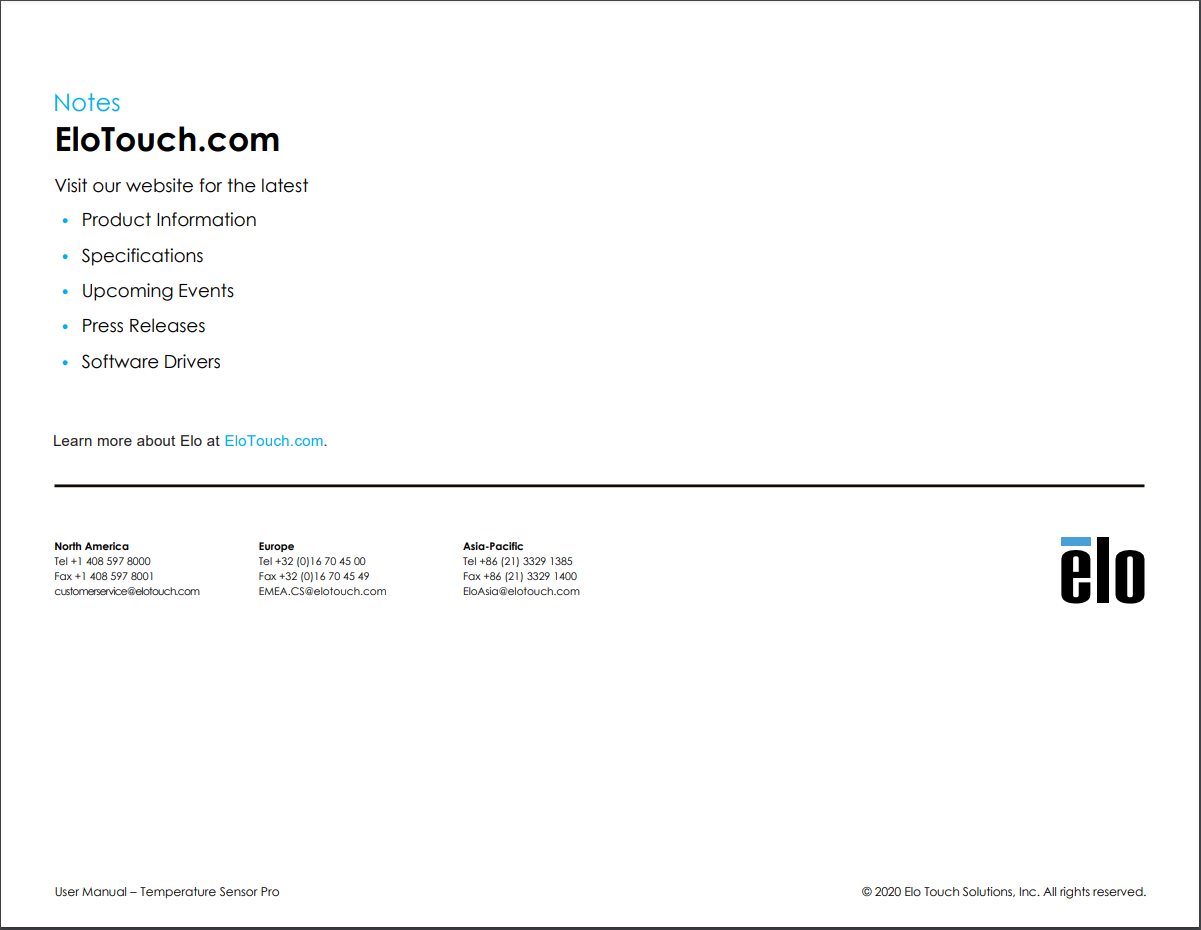

本文提供Elo温度传感器Pro的用户手册，部件号：E534879

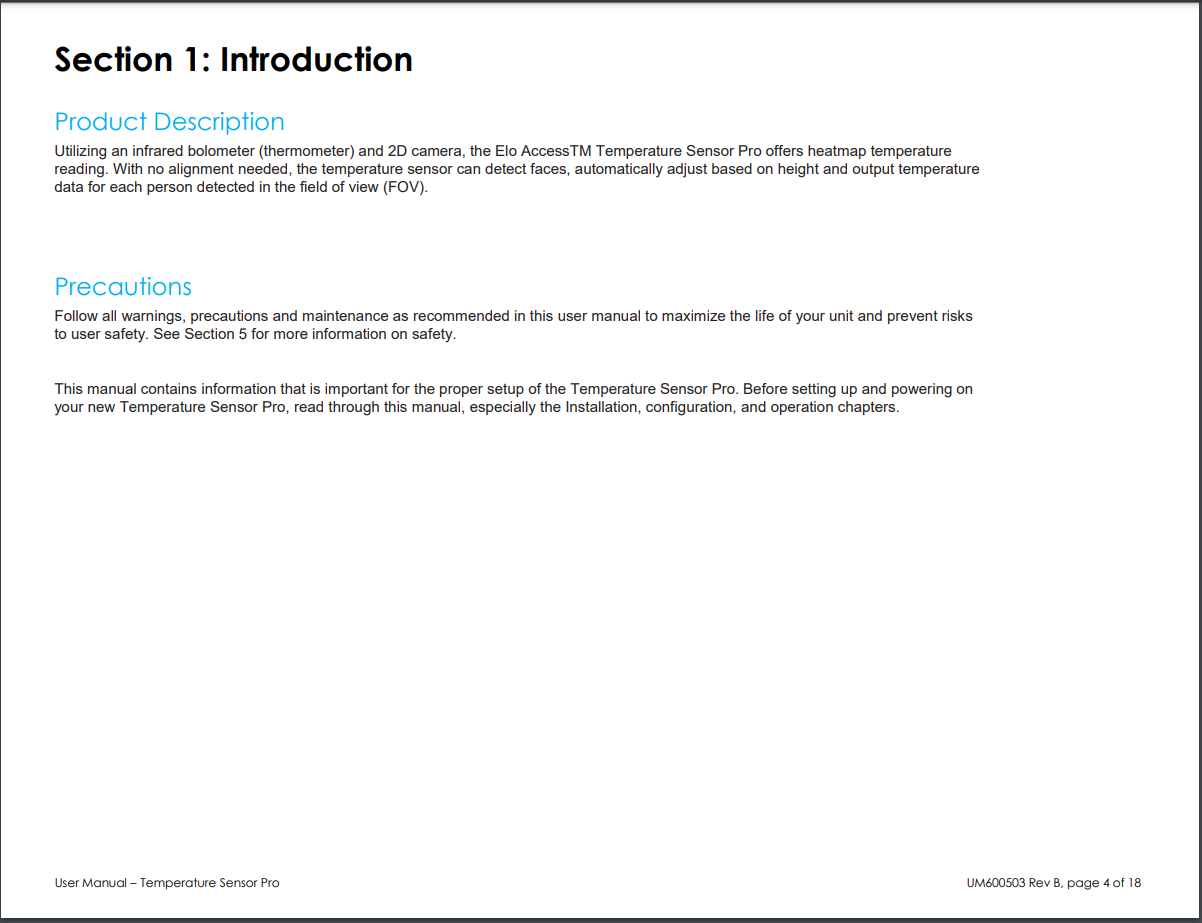

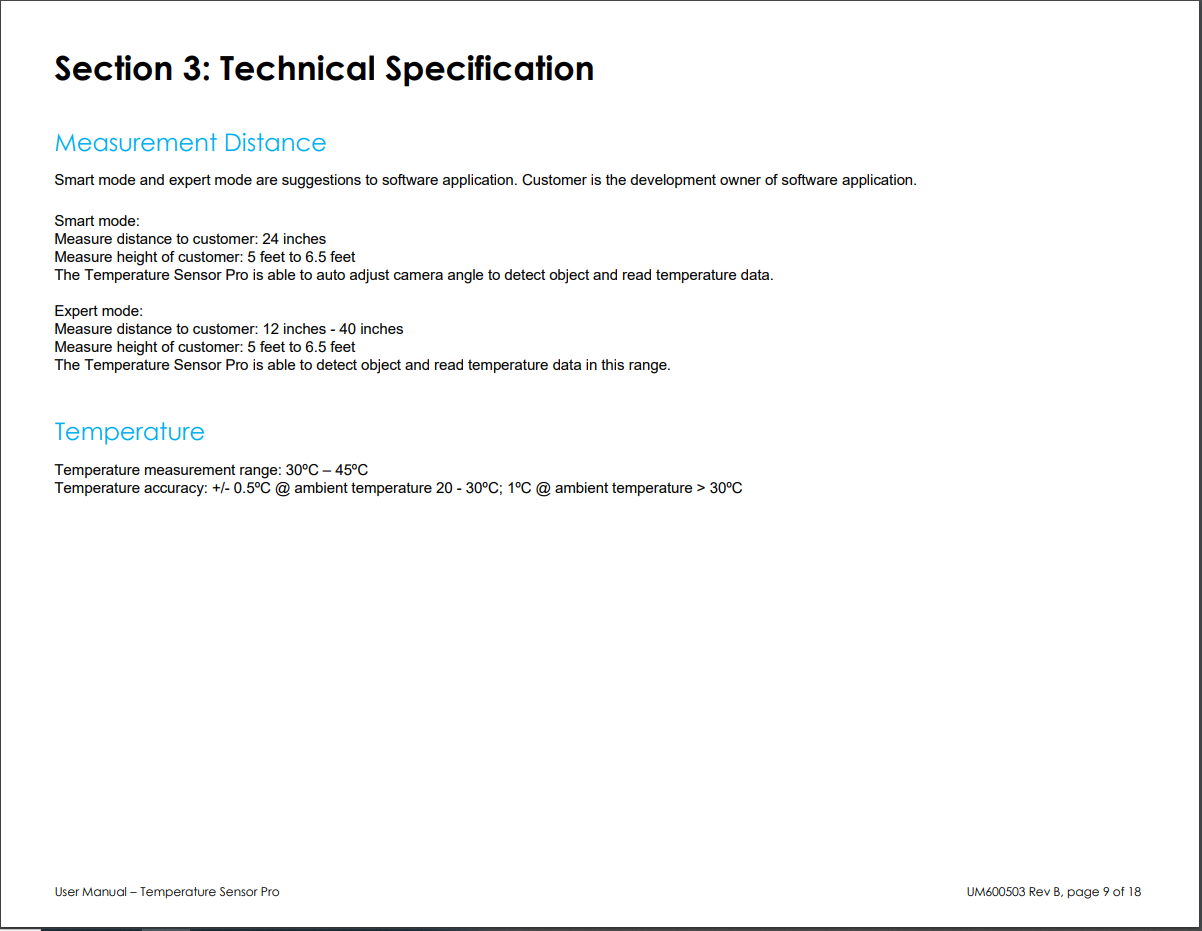

利用红外辐射计（温度计）和2D摄像头，温度传感器Pro提供高达40英寸的热图温度读数，最佳距离为24英寸。无需对齐，温度传感器可以检测面部，自动根据高度进行调整，并输出视野范围内（FOV）每个检测到的人的温度数据。





















上述用户指南的.pdf版本，请点击下载 这里

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
