Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen zum E710364, 6 Fuß USB-C-Kabel?

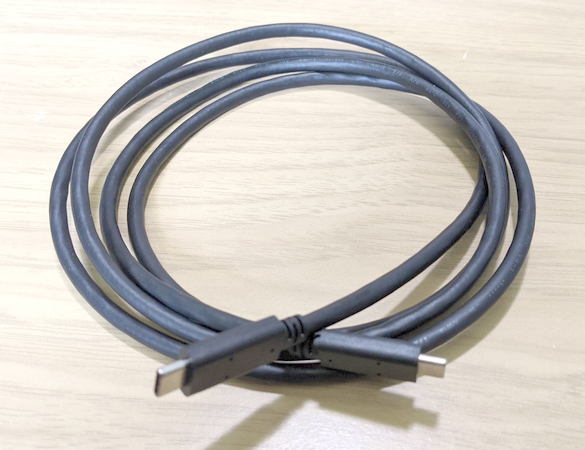

Dieser Artikel enthält Informationen zum E710364 USB-C-zu-USB-C-Kabel.

E710364 ist das von Elo empfohlene Kabel zur Lieferung von Strom, Video und Daten über den USB-C-Anschluss an Geräten, die dazu in der Lage sind.

Spezifikationen:

  • Länge: 1,8 m (6 Fuß)
  • Farbe: Schwarz
  • Anschlüsse: Ein Ende (P1) Standard USB Typ-C Stecker, anderes Ende USB Typ-C Stecker (P2).

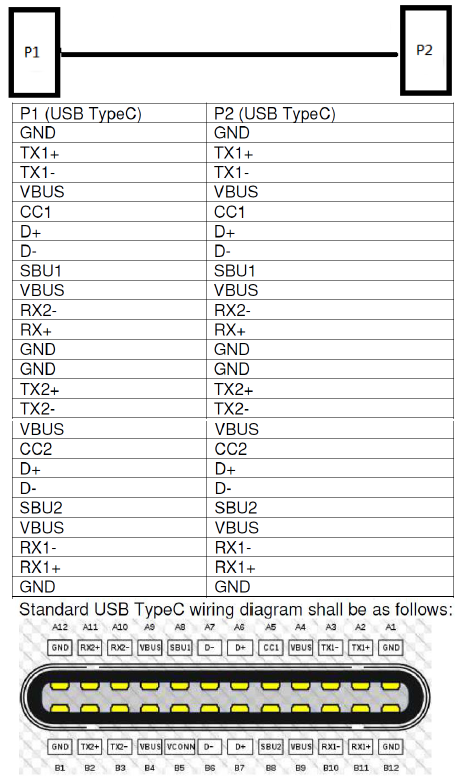

  • Pin-Belegung unten dargestellt:



Um zu bestellen, kontaktieren Sie bitte Ihren Elo-Value-Added-Reseller oder wenden Sie sich an Elo Sales Nordamerika: https://www.elotouch.com/how-to-buy
