Wo finde ich die Spezifikationen für P/N: E582895: ELO-KIT-CABLE-DP-to-DP?

Dieser Artikel enthält die technischen Daten für P/N: E582895: ELO-KIT-CABLE-DP-to-DP

Siehe unten für die Spezifikationen für P/N: E582895: ELO-KIT-CABLE-DP-to-DP

E582895

  • Beschreibung: 1,8 m DisplayPort zu DisplayPort Videokabel
  • Das DisplayPort zu DisplayPort Kabel soll einen Typ Stecker am Kabel enthalten. Beide Seiten sollen einem Standard DisplayPort 1.2 männlichen Stecker entsprechen.
  • Länge: 1,8 m (6 Fuß)
  • Farbe: Schwarz
  • Alle Kabel und Stecker müssen PC-99-konform sein

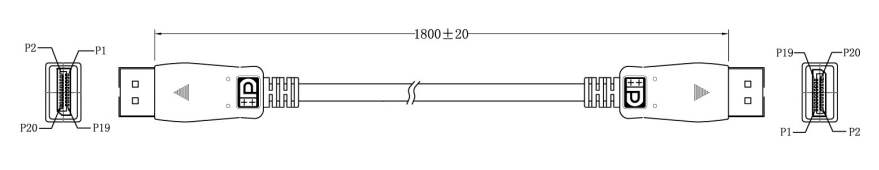

Zeichnungen:

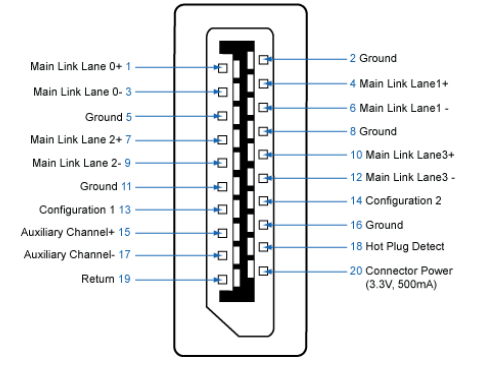

Das Standard-DisplayPort 1.2 Verdrahtungsdiagramm soll wie folgt aussehen:
