Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich das Pinout für das RJ45-zu-DB9-Kabel für die EloPOS-Geräte?

Dieser Artikel beschreibt die Pinbelegung für das RJ45 zu DB9 Kabel, das im Lieferumfang der EloPOS-Einheiten enthalten ist

Teilebeschreibung: 5K.47T20.501: KABEL RJ45-RS232 900MM EA15PA0-1

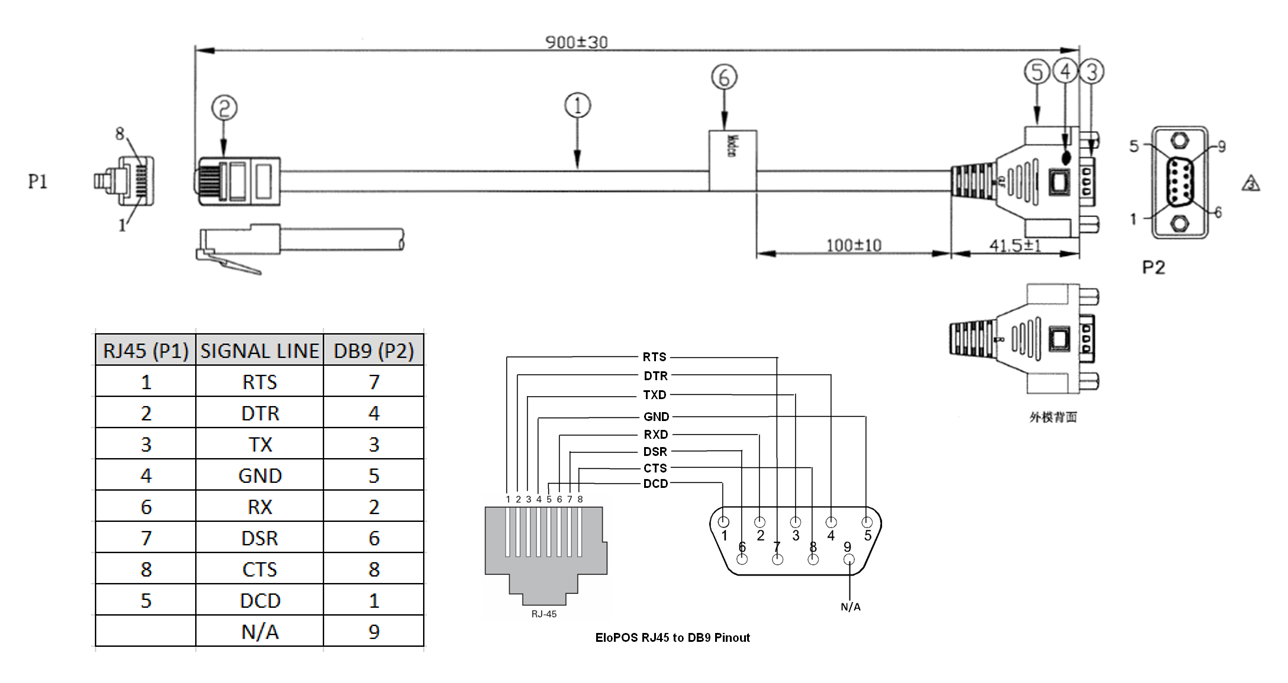

EloPOS RJ45 zu DB9 Pinbelegung

ELOPOS RJ45 TO DB9 PINOUT-BC.PNG

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
