Wo finde ich das Pinout für E196292, X-Series RS232 auf DB9-Kabel?

Dieser Artikel enthält die Pinbelegung für das E196292, X-Serie RS232 zu DB9 Kabel



Unten finden Sie die Zeichnung und die Pinbelegungen für P/N: E196292, X-Serie RS232 zu DB9 Kabel.

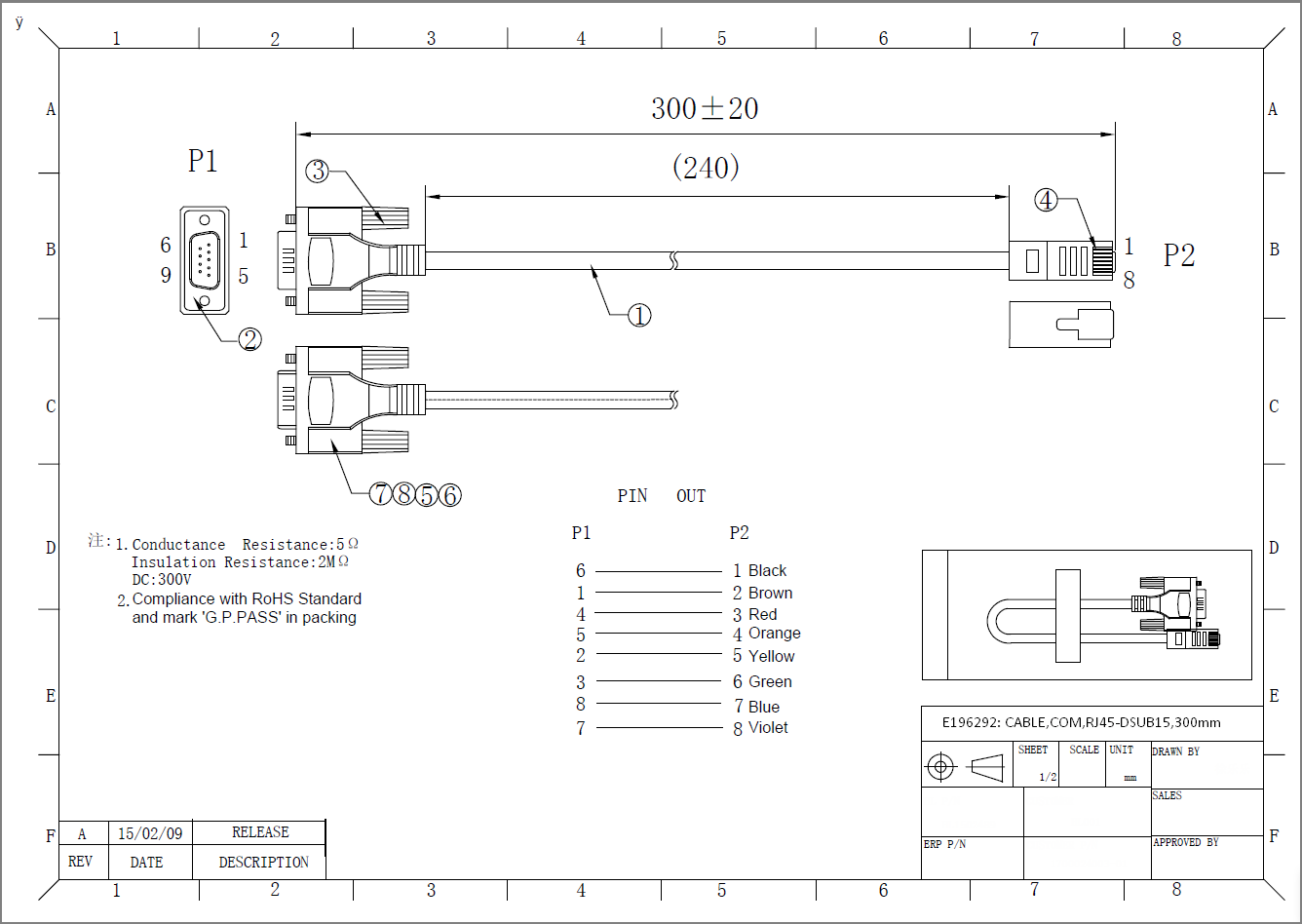

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

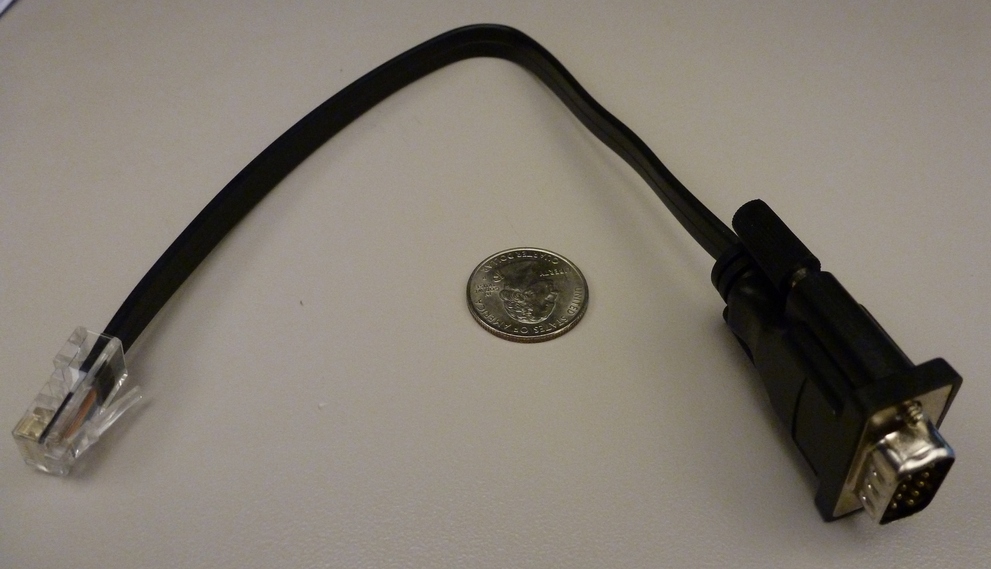

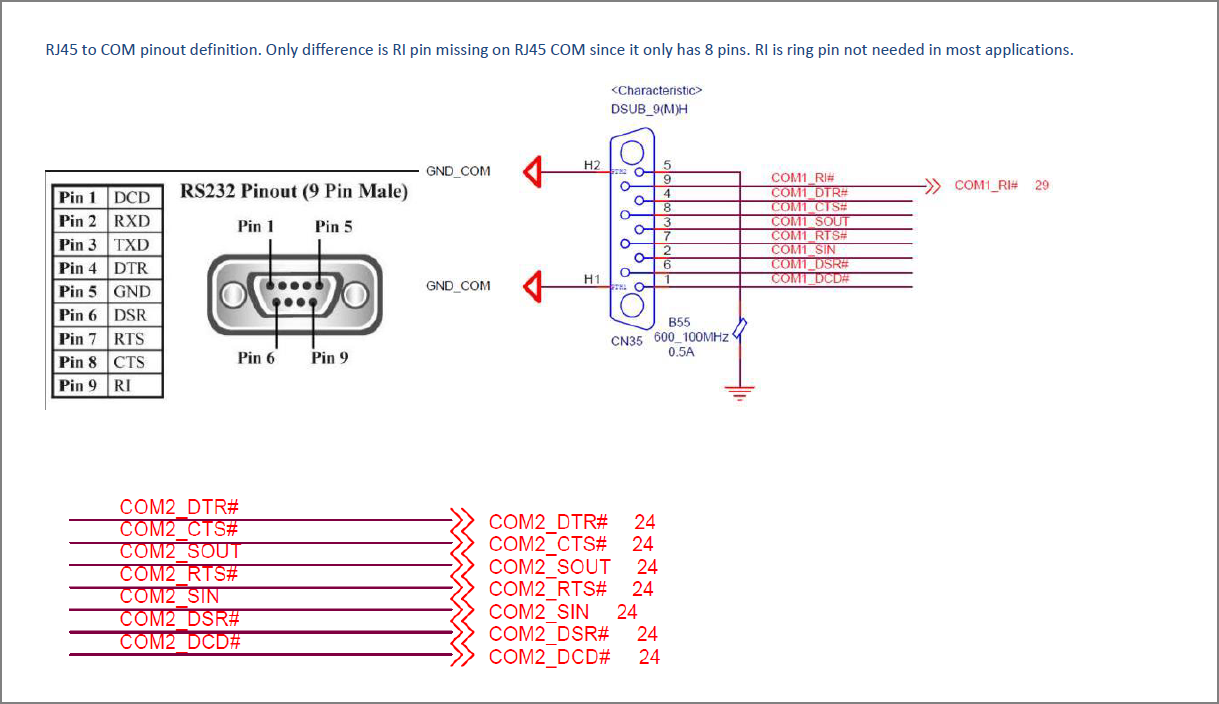

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
