Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen über E075614, USB Y-Kabel für 0700L (Obsolet)?

Dieser Artikel bietet weitere Informationen zu Elo P/N: E075614, USB Y-Kabel für Monitor 0700L

Nachfolgend finden Sie Informationen zu Elo P/N: E075614, 8-Fuß USB Y-Kabel für Monitor 0700L (jetzt veraltet)

Teilenummer & Beschreibung

  • E075614: CAB-USB-XT-8.2FT-R
  • CAB-KIT-2.5 Meter Y-Kabel für den 0700L
  • Hinweis: Der Endstecker, der in den 0700L eingesteckt wird, ist Mini-USB

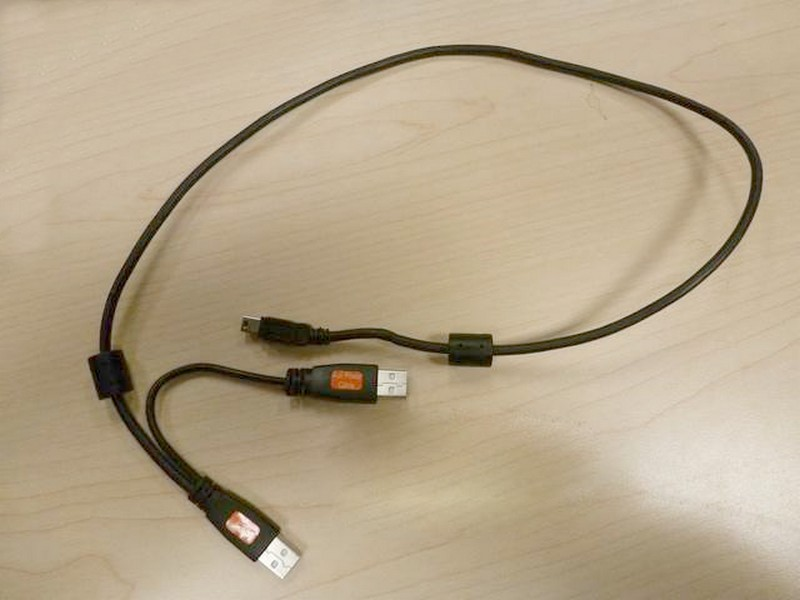

Foto

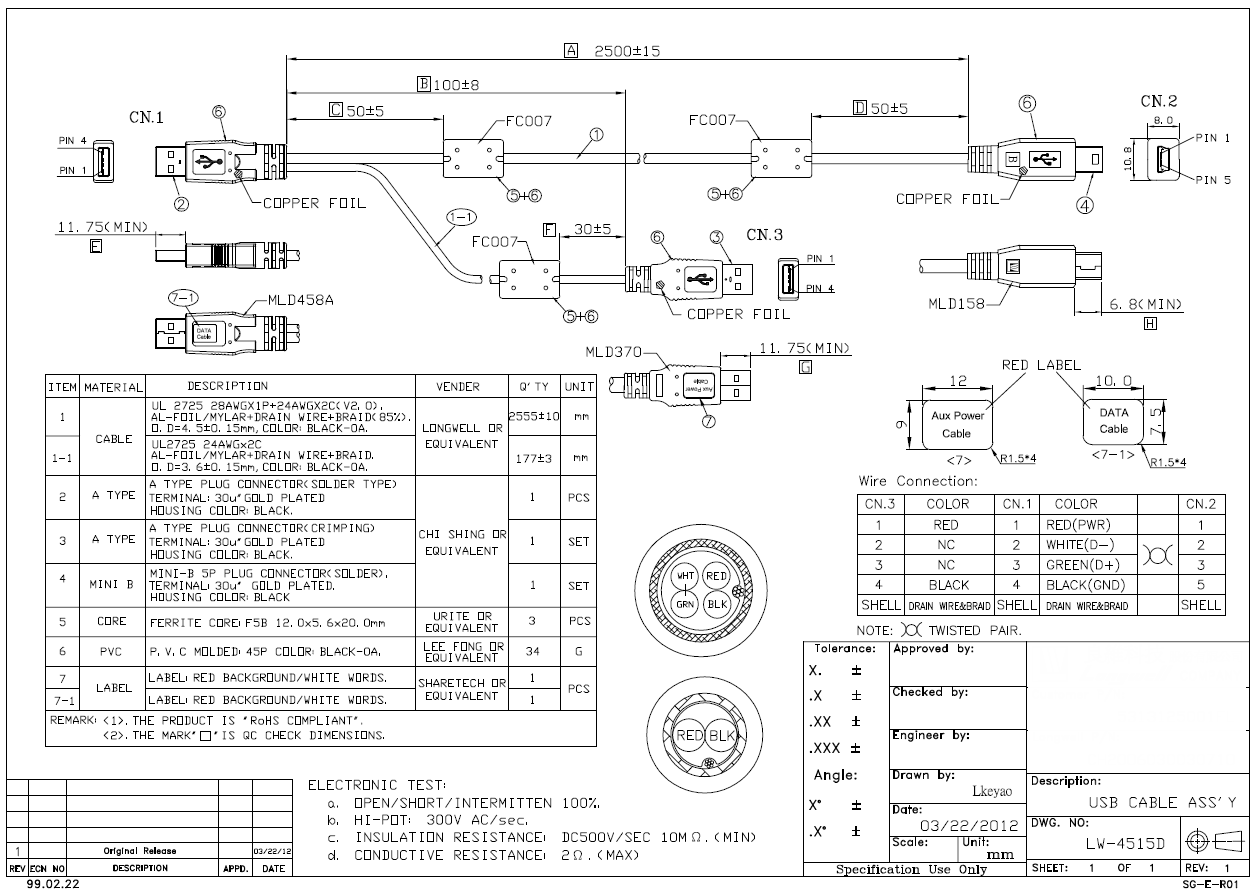

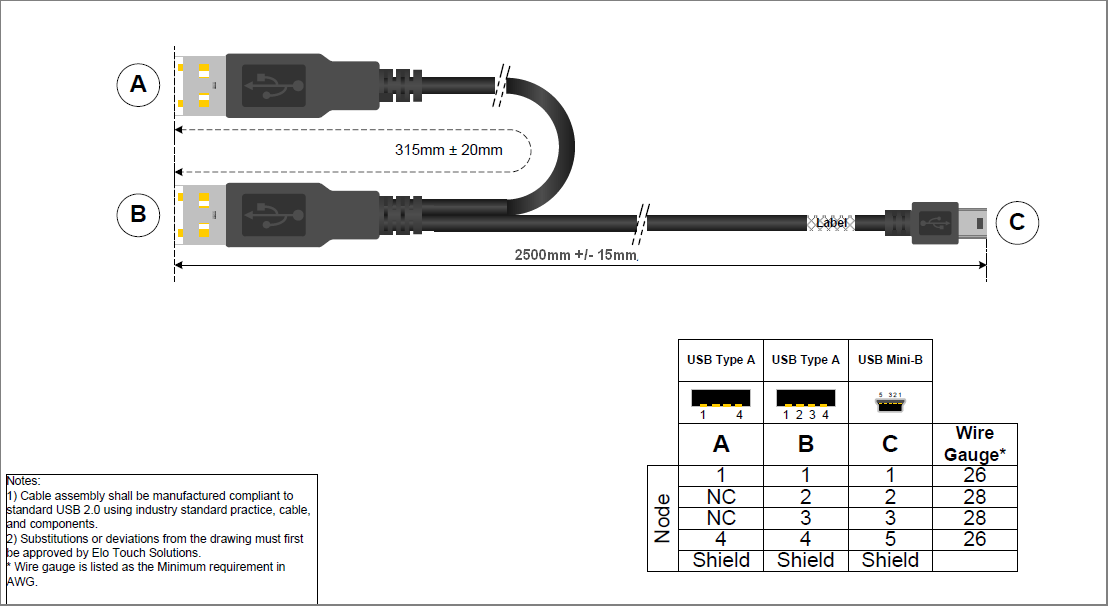

Zeichnung
