Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich weitere Informationen über das Elo BackPack Montagesatz (P/N: E802593)?

Dieser Artikel bietet Informationen zu Elo P/N: E802593, Elo BackPack Montierungsbracket-Kit

Teilenummer & Beschreibung:

  • E802593: KIT, ZUBEHÖR-KIT, ELO BACKPACK
  • Kit, Elo Backpack Montagehalterung für die IDS -02 Serie
  • Dieses Kit unterstützt die älteren Elo BackPack und BackPack 3.0 Geräte. Es unterstützt nicht das BackPack 4.0.

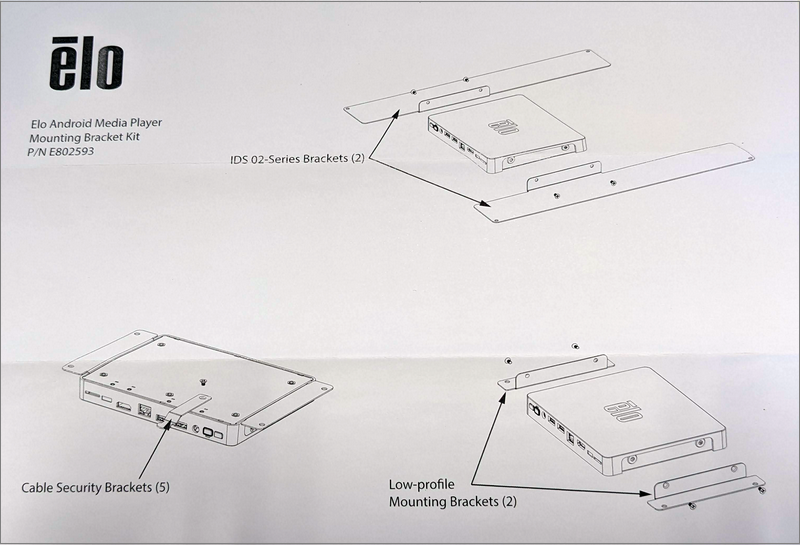

Schnellinstallationsanleitung

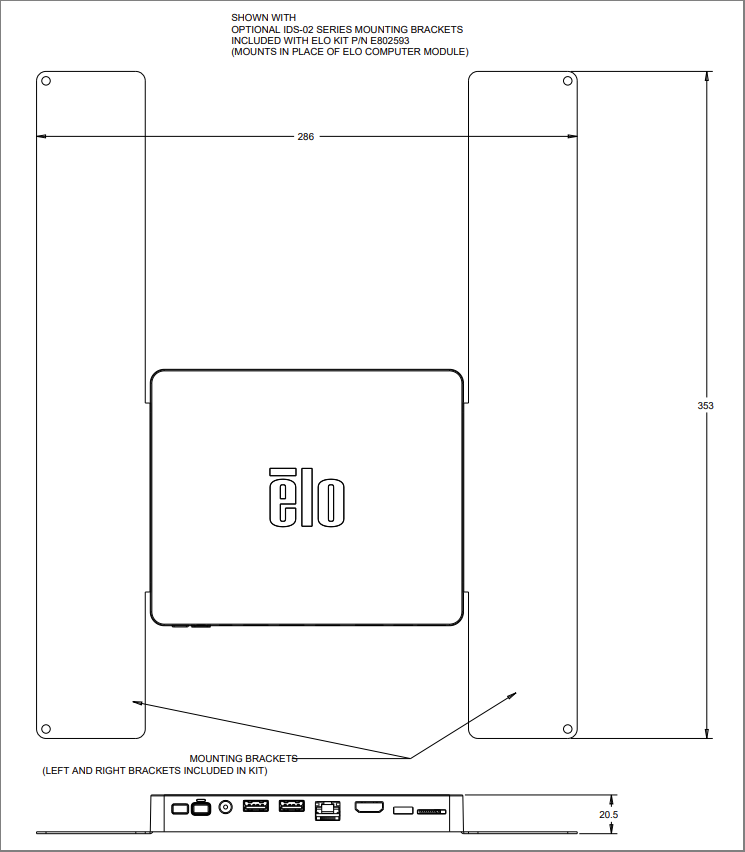

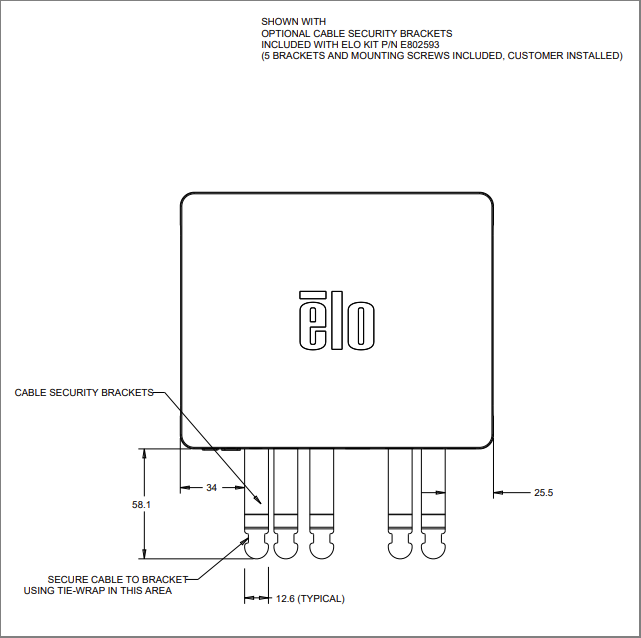

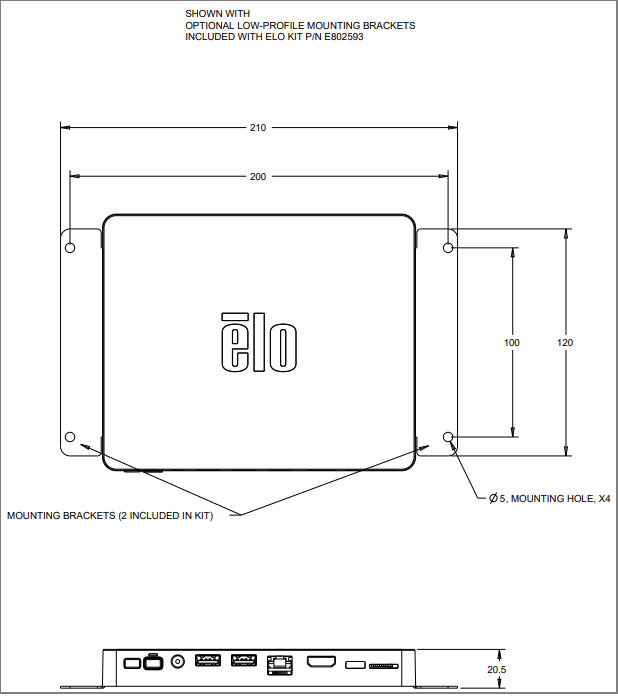

Zeichnungen

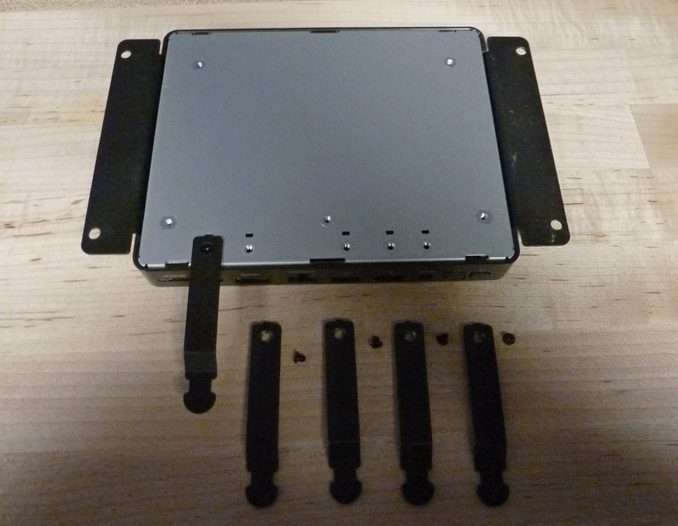

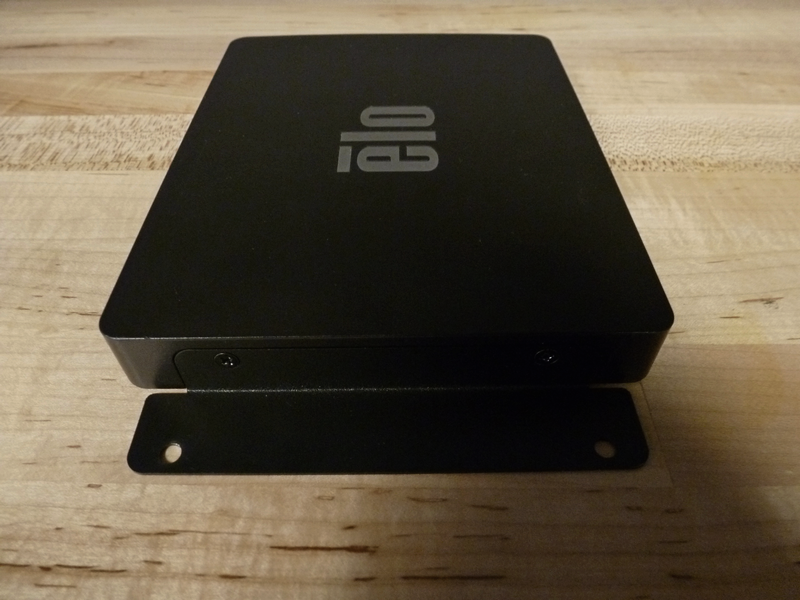

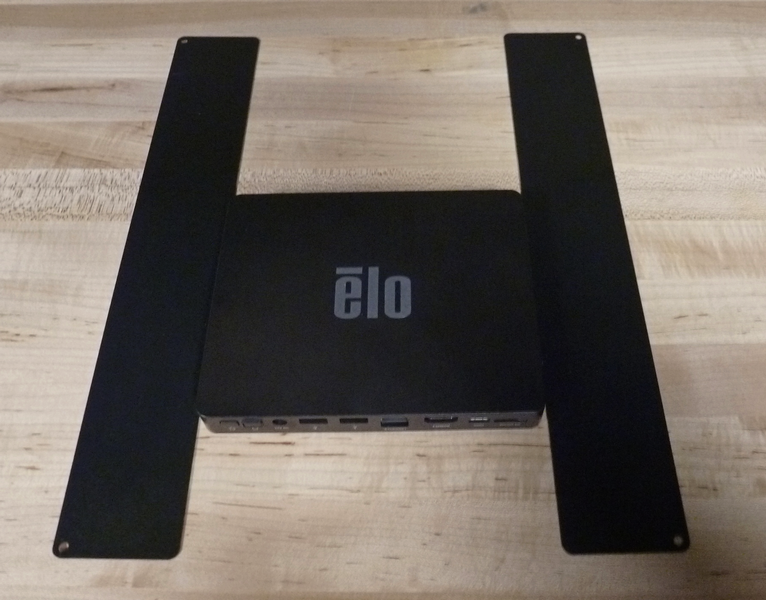

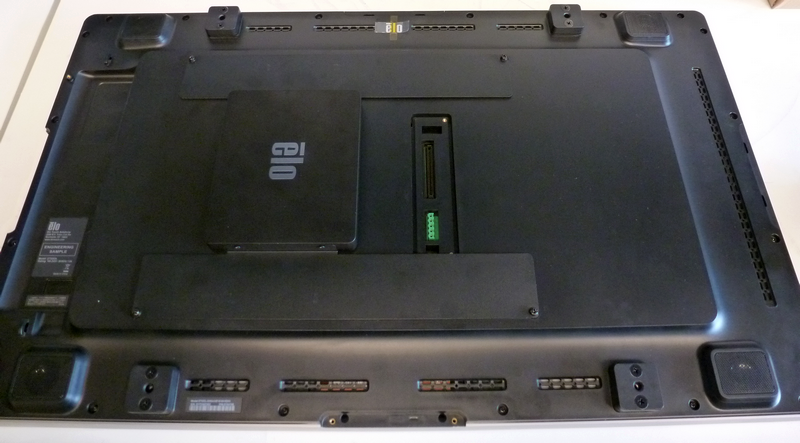

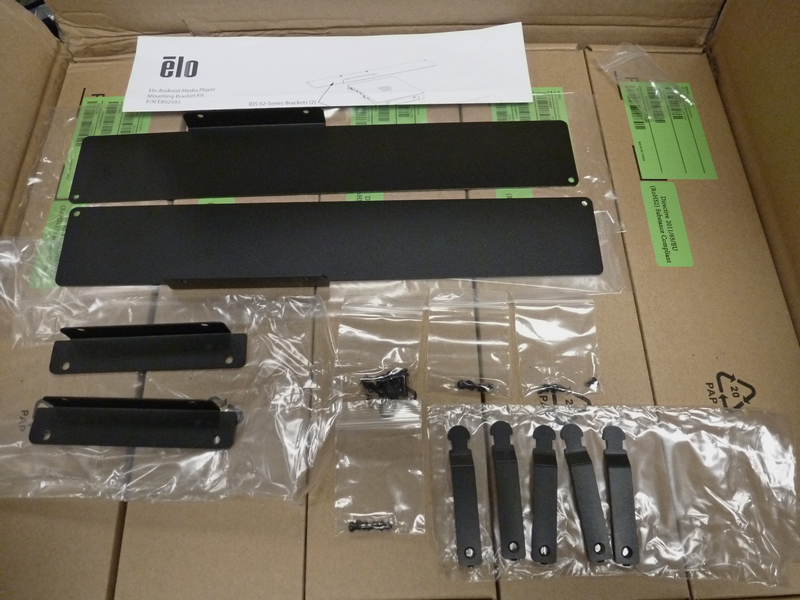

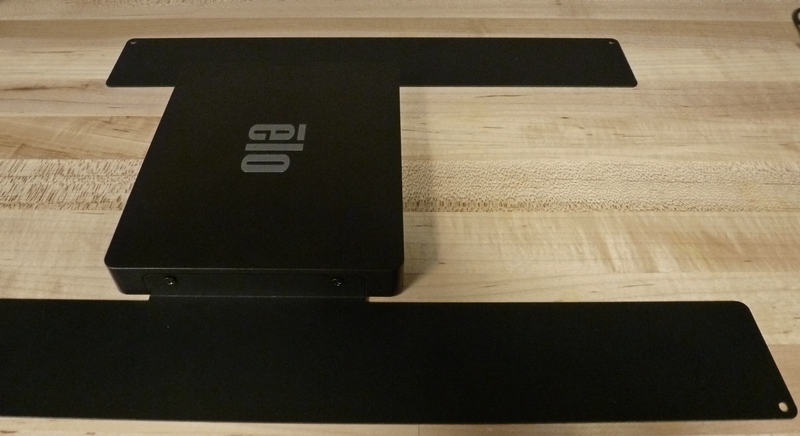

Fotos
