Wo finde ich eine Maßzeichnung des E044356 Tischständers für 22" I-Series?

Dieser Artikel enthält die Maßzeichnung des E044356 Tischständers für 22" I-Serie

Siehe unten für Spezifikationen, Fotos und Maßzeichnung des E044356 Tischständers für 22" I-Serie.

  • Teilenummer: ELO-STAND-22IN-BLACK-R
  • Teilengewicht: 2635g (5.8 lbs)
  • Verpackungsgewicht: 420g (0.93 lbs)
  • Inhalt des Kartons:
    • 1 x Ständer
    • 4 x M4 x 10mm flache Kopf Philips VESA Schrauben

Fotos

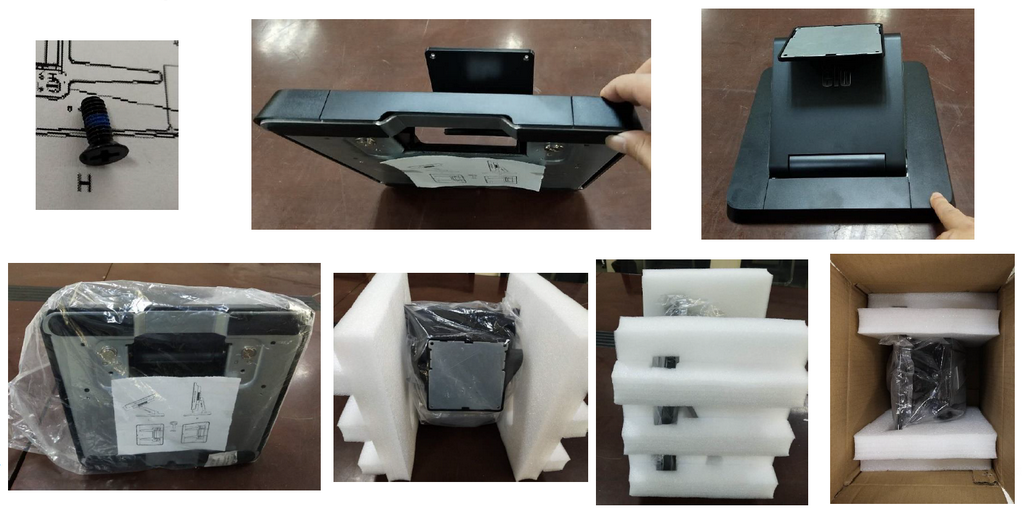

E0044356 Photo3.PNG

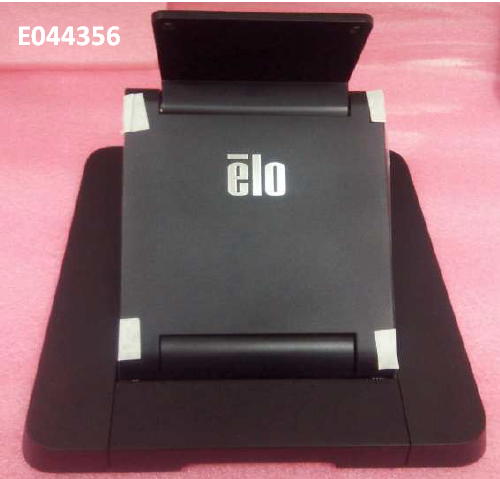

E044356 Photo1.PNG

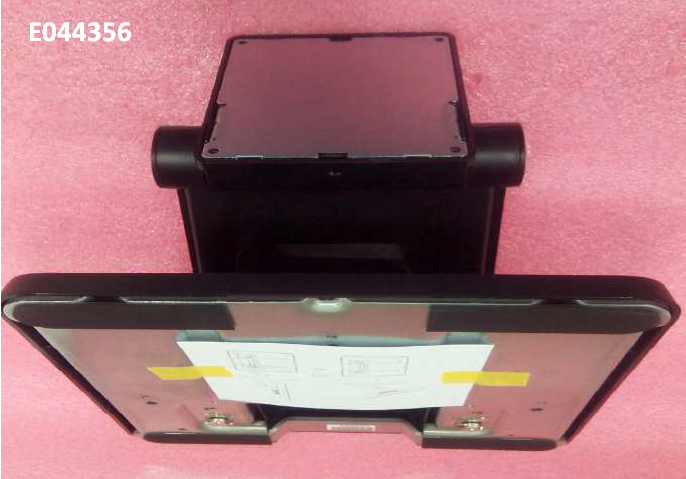

E044356 Photo2.PNG

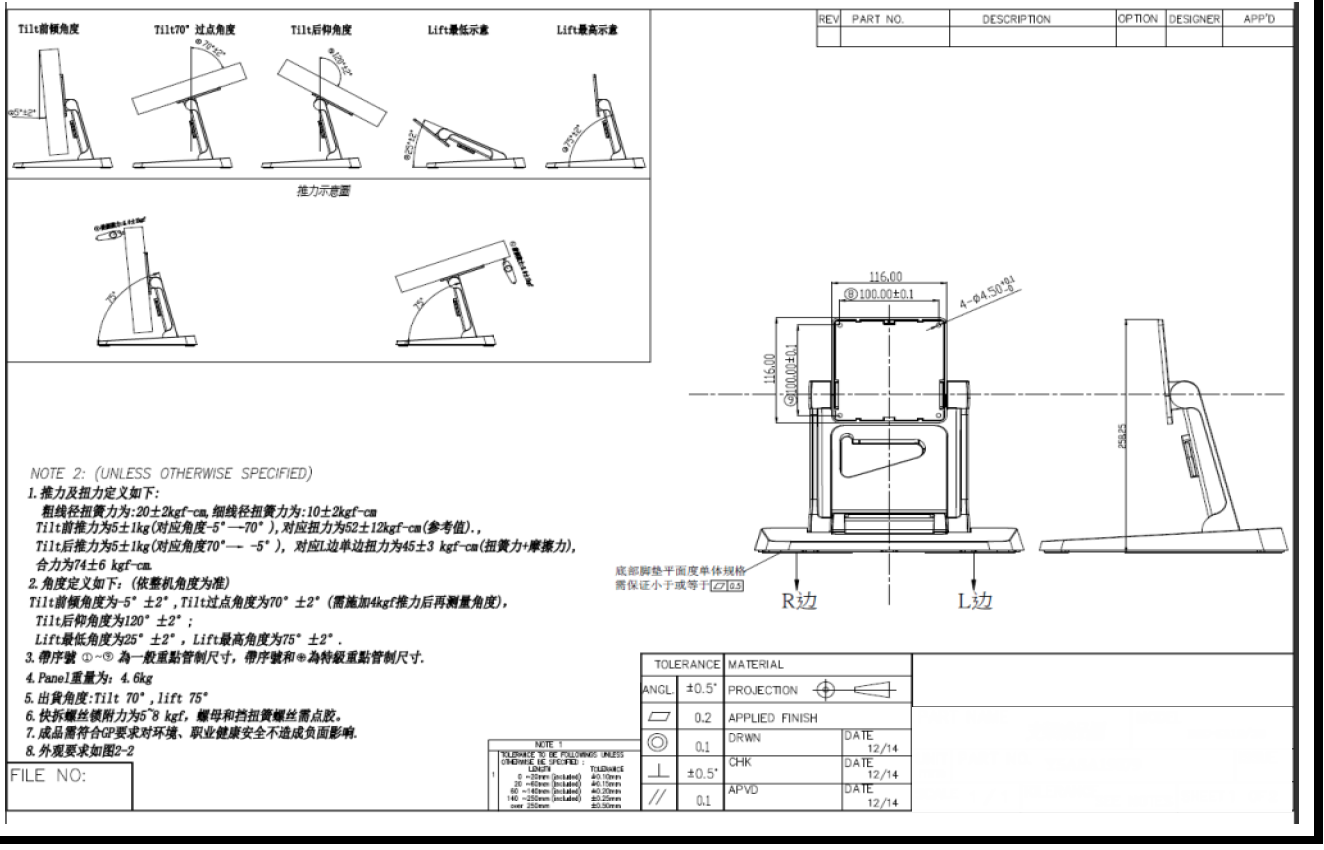

Neigungsbereich

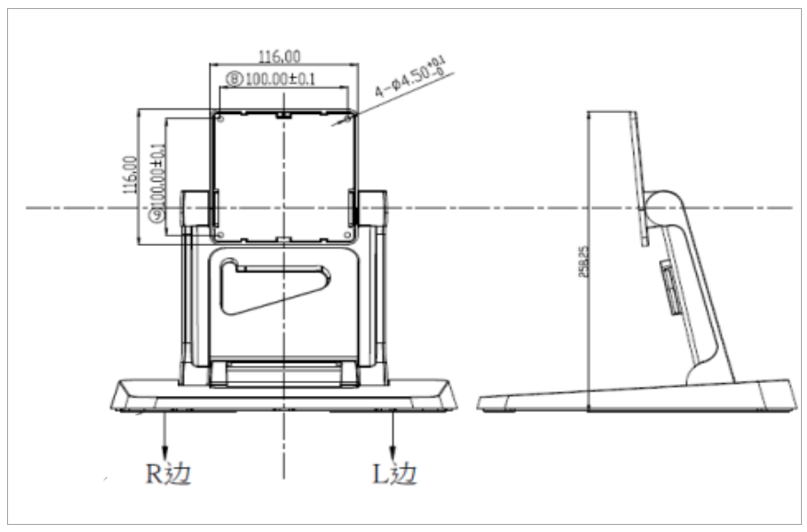

Zeichnung
