Wo finde ich Informationen zu E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3,0M?

Dieser Artikel enthält Informationen zu E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Die folgenden Informationen gelten für Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

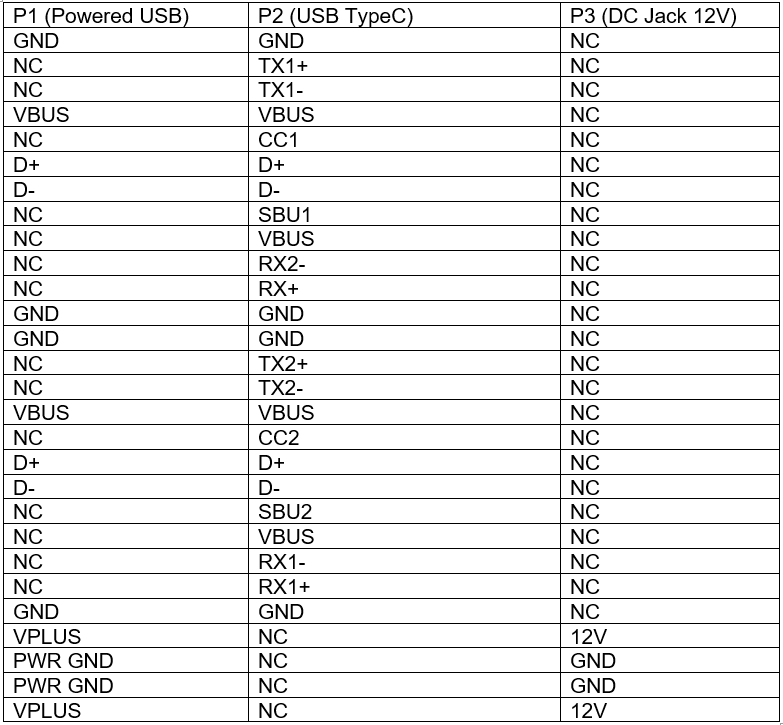

Spezifikationen:

  • Das Power-via-USB-Kabel für TypeC soll drei Arten von Steckern am Kabel enthalten.
    • Eine Seite (P1) soll ein standardmäßiger Powered USB-Stecker (männlich) sein
    • Die andere Seite soll USB TypeC (P2) und DC-Buchse 12V (P3) sein
    • Das Kabel muss 3,0 m lang und schwarz sein

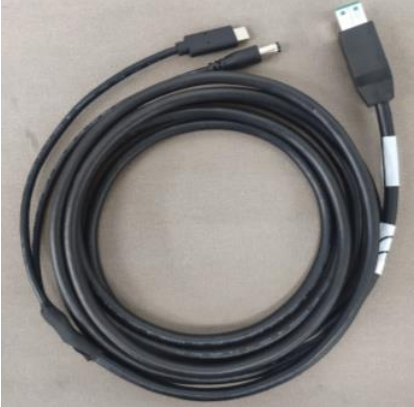

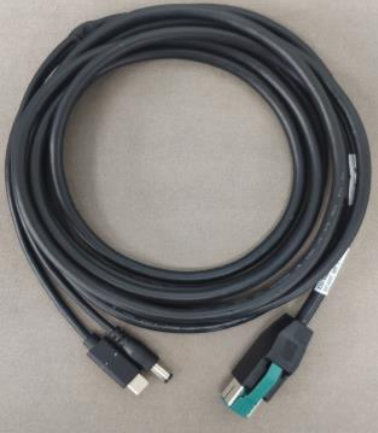

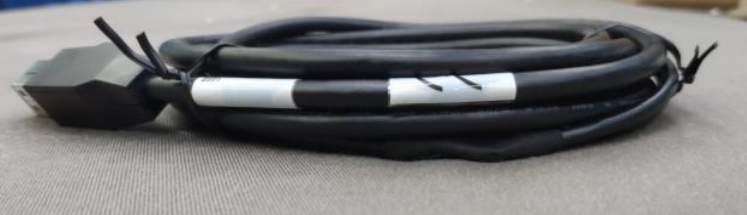

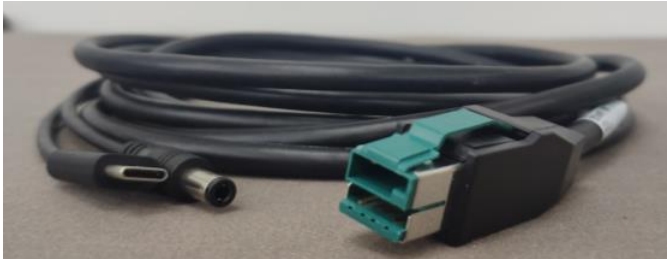

Fotos
