Wo finde ich Informationen über das E462672 Elo 2293L-2294L Rackmontage-Blendenkit?

Dieser Artikel enthält Informationen über das E462672 Elo 2293L-2294L Rack Mount Bezel

E462672 Elo 2293L-2294L Rack Mount Bezel, nur geeignet für die intelliTouch, SecureTouch, AccuTouch Versionen der Produkte. Diese Halterung benötigt 12U Rack Platz.

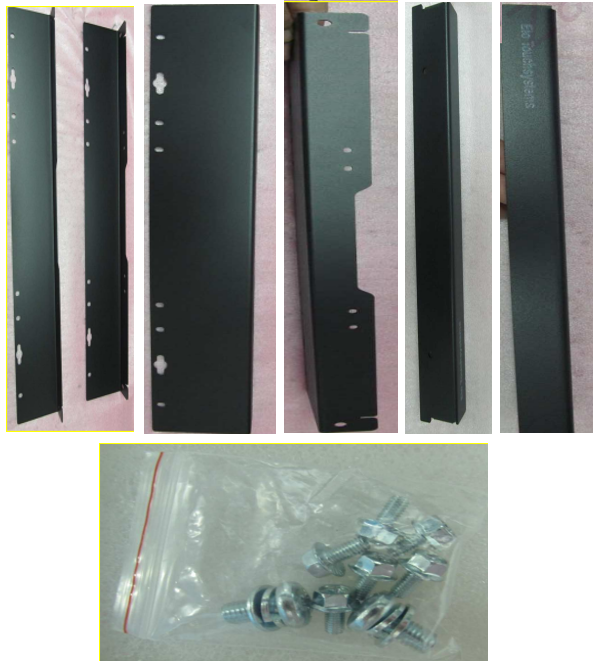

Kit-Inhalt:

  • 1x HALTERUNG, UNTERE RACK MONTAGE
  • 2x HALTERUNG, SEITE, RACK MONTAGE
  • 4x SCHRAUBE, PHIL, PNHD W/CAPT WHRS, M6X12L-R
  • 4x SCHRAUBE, HXHD, PHIL, ZACKEN, M4X

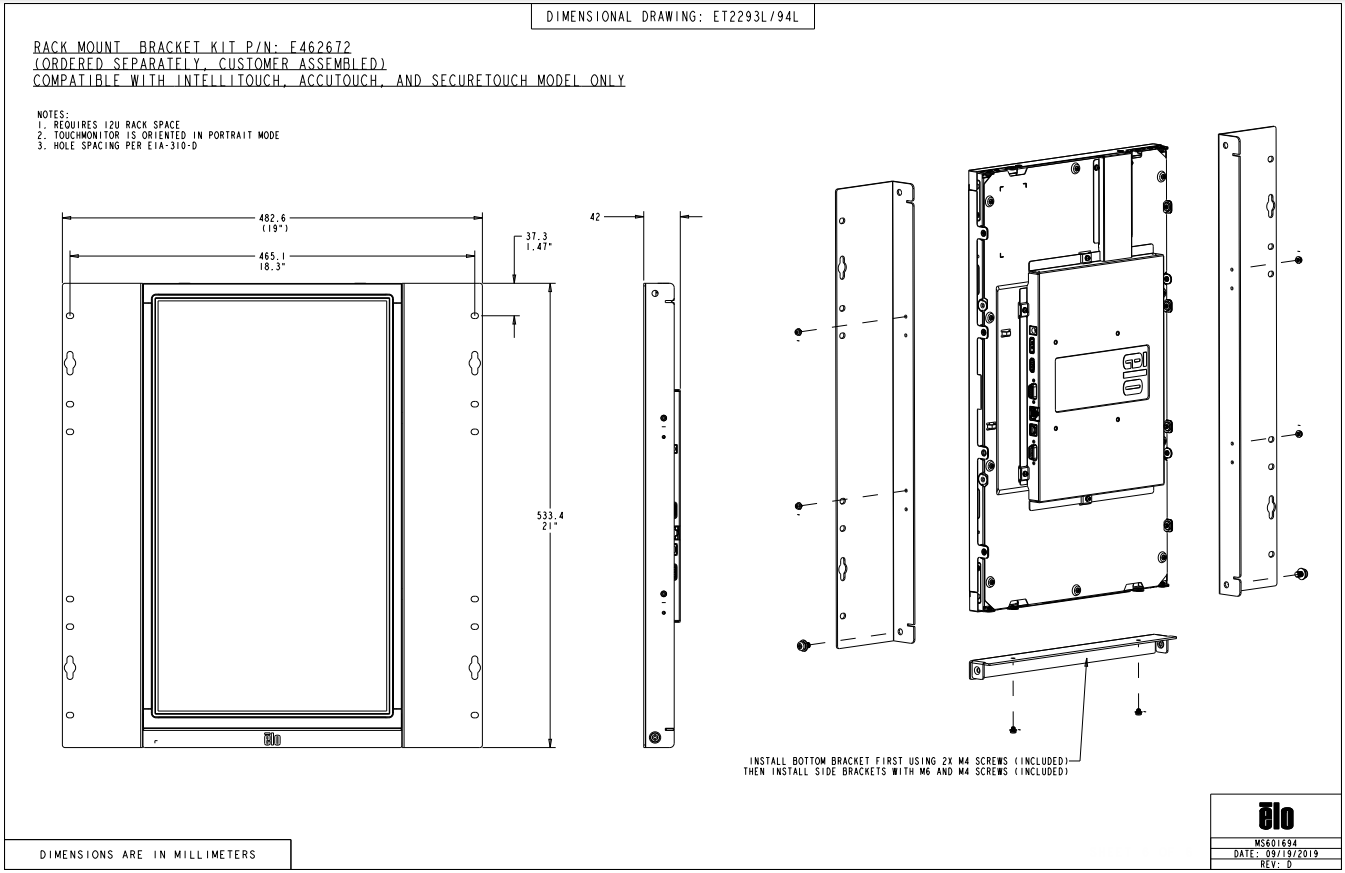

Zeichnung und Montage
