Wie installiere ich die Papierrollenführung an einem PayPoint-System?

Dieser Artikel enthält Anweisungen zur Installation der Papierrollenführung an einem PayPoint-Gerät

Für Kunden, die eine 58 mm breite Quittungspapierrolle benötigen, wird das PayPoint-Gerät mit einer einsetzbaren Papierrollenführung geliefert. Siehe unten für die Installation der Führung.

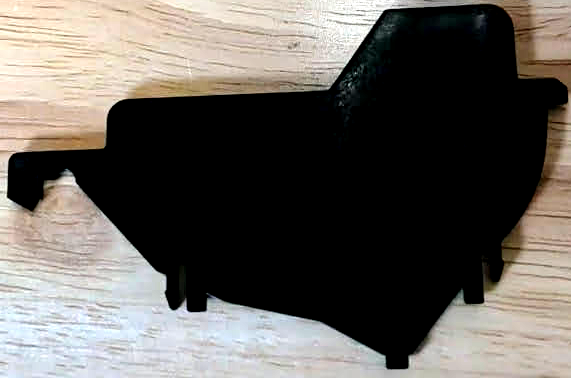

Foto der Führung

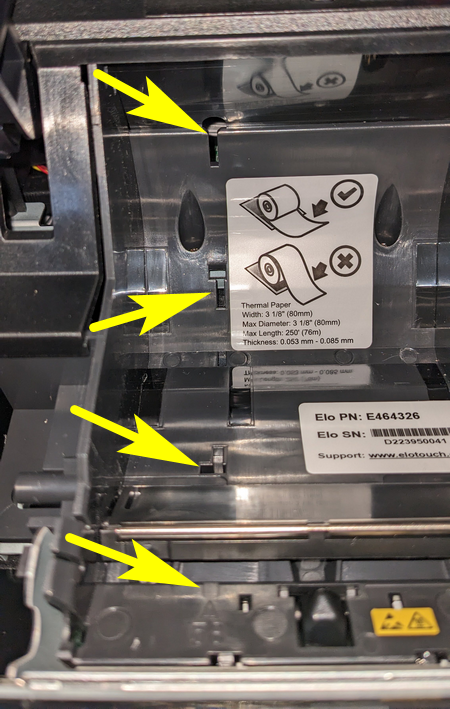

Montageorte im Druckerbereich

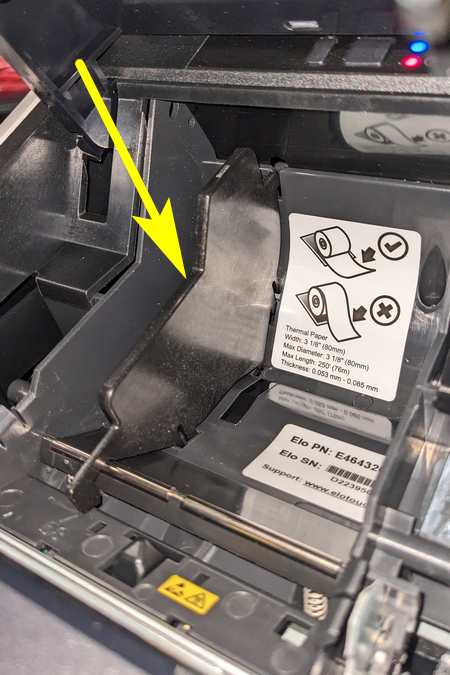

Foto zeigt installierte Papierrollenführung

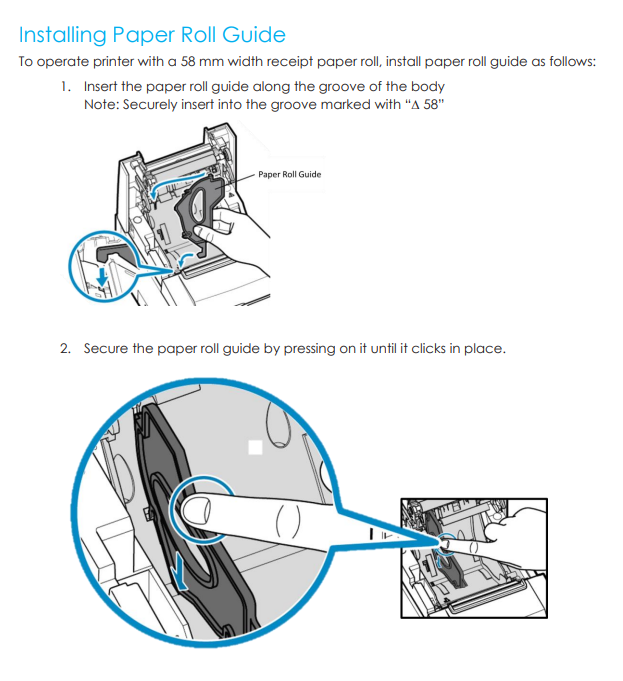

Installationsschritte aus dem PayPoint-Benutzerhandbuch
