Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen über E641484: Kit, RJ45 zu DB9 Kabel, EloPOS?

Dieser Artikel listet Informationen zum E641484: Kit, RJ45 zu DB9 Kabeln, die mit den EloPOS-Systemen geliefert werden

Beschreibung

  • Länge: 900 mm
  • RJ45 vertikaler Stecker zu DB9 vertikaler Stecker (Durchgangskabeltyp)

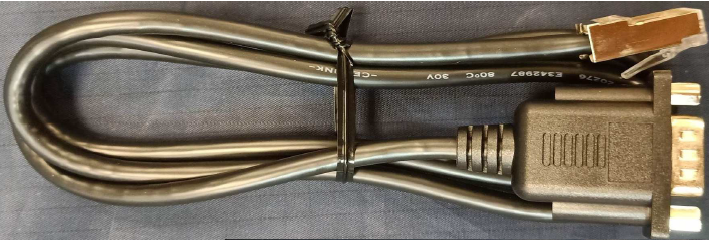

Foto

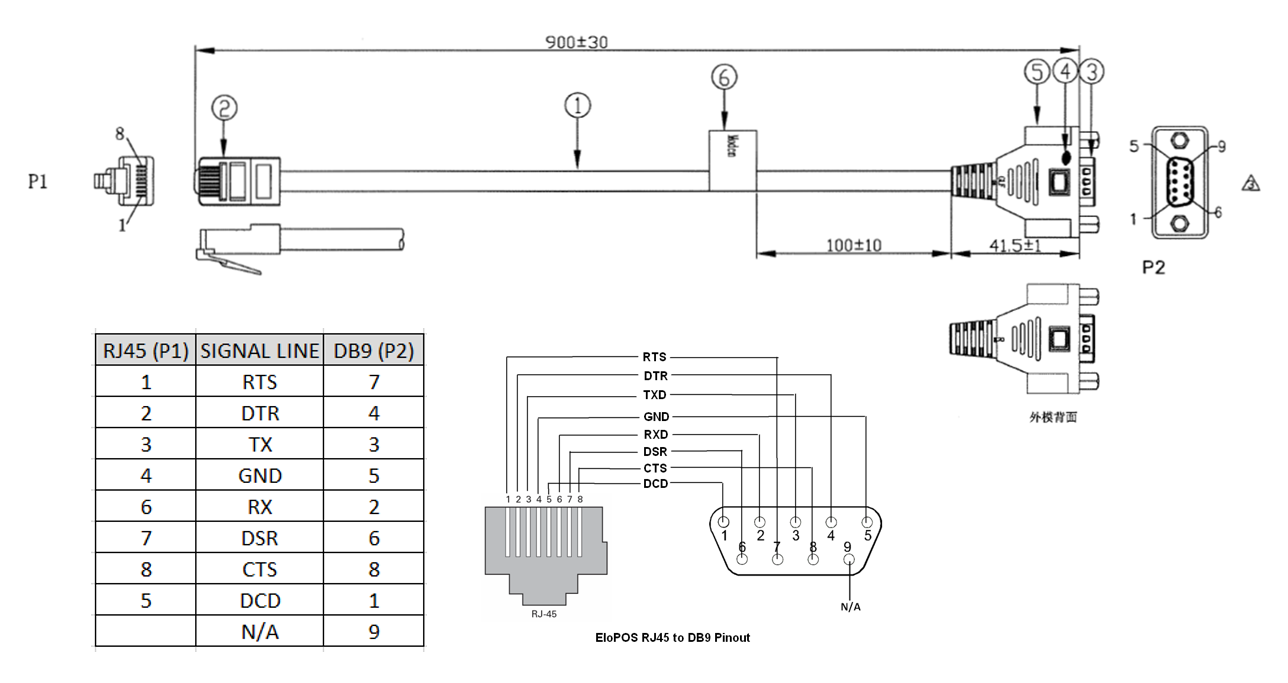

Zeichnung und Pinbelegung
