Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich den Inhalt des Kits E458605 Rev. B: EMV Cradle Kit für Ingenico Lane 3000 und Lane 3600?

Dieser Artikel bietet die Inhalte des Kits und Montageanweisungen für E458605 Rev. B: EMV Cradle Kit für Ingenico Lane 3000 und Lane 3600

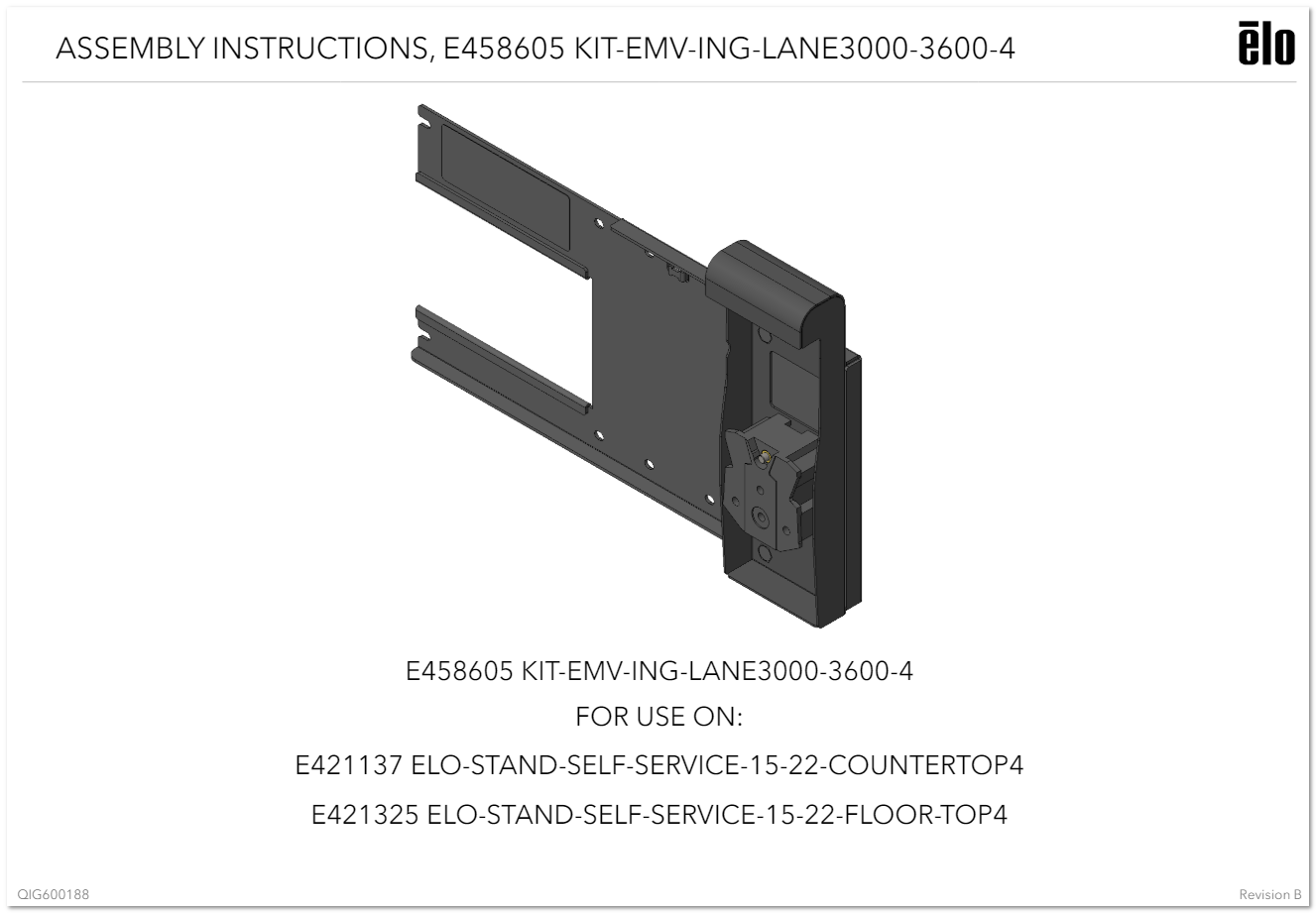

E458605 Rev. B: KIT-EMV-ING-LANE3000-3600-4
EMV Cradle Kit für Wallaby Selbstbedienungsstand mit I-Series, kompatibel mit Ingenico LANE3000 und LANE3600

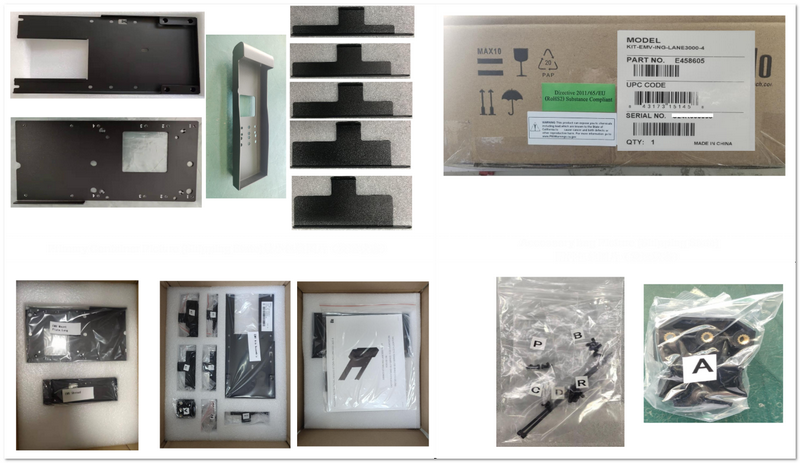

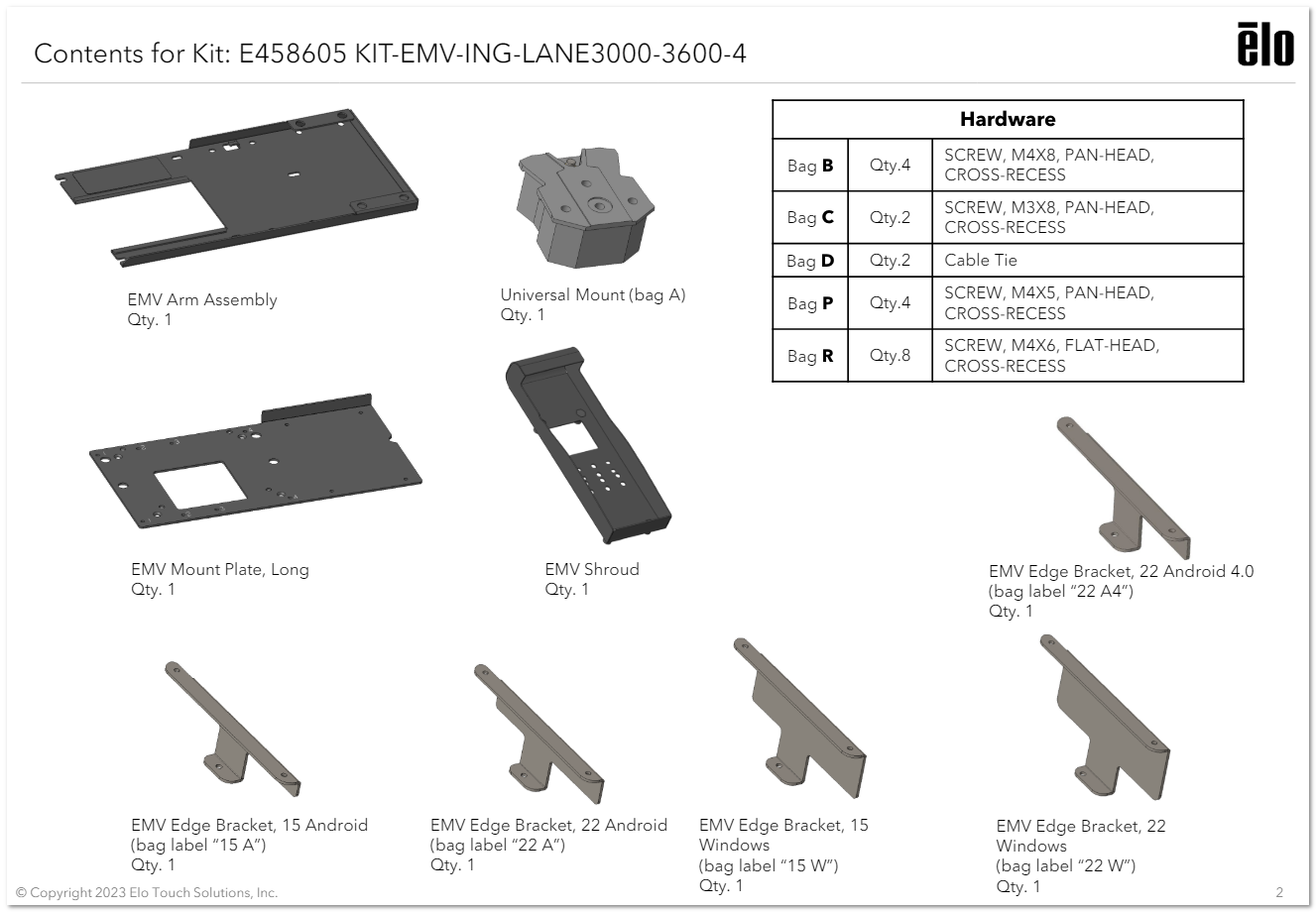

Inhalte des Kits

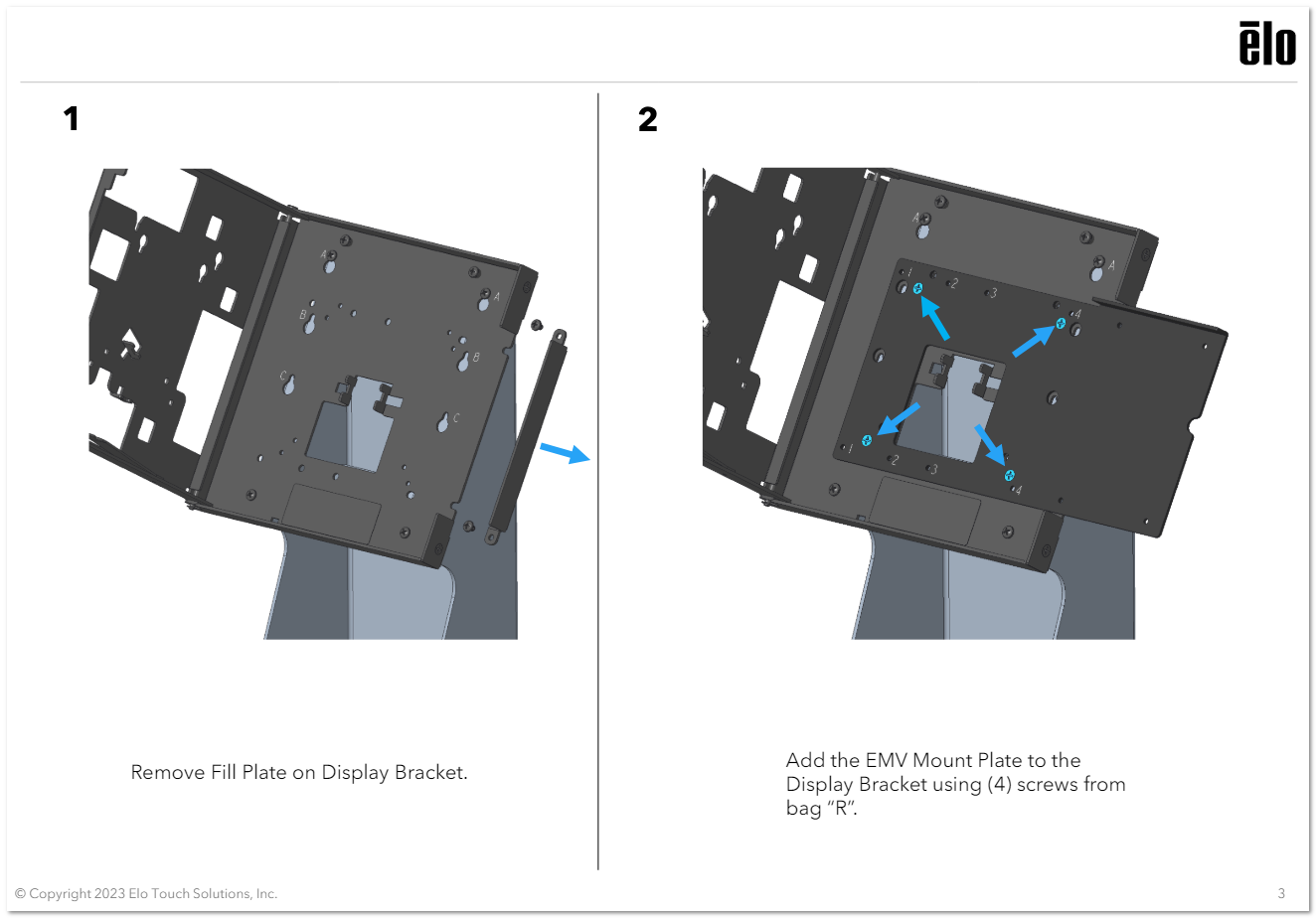

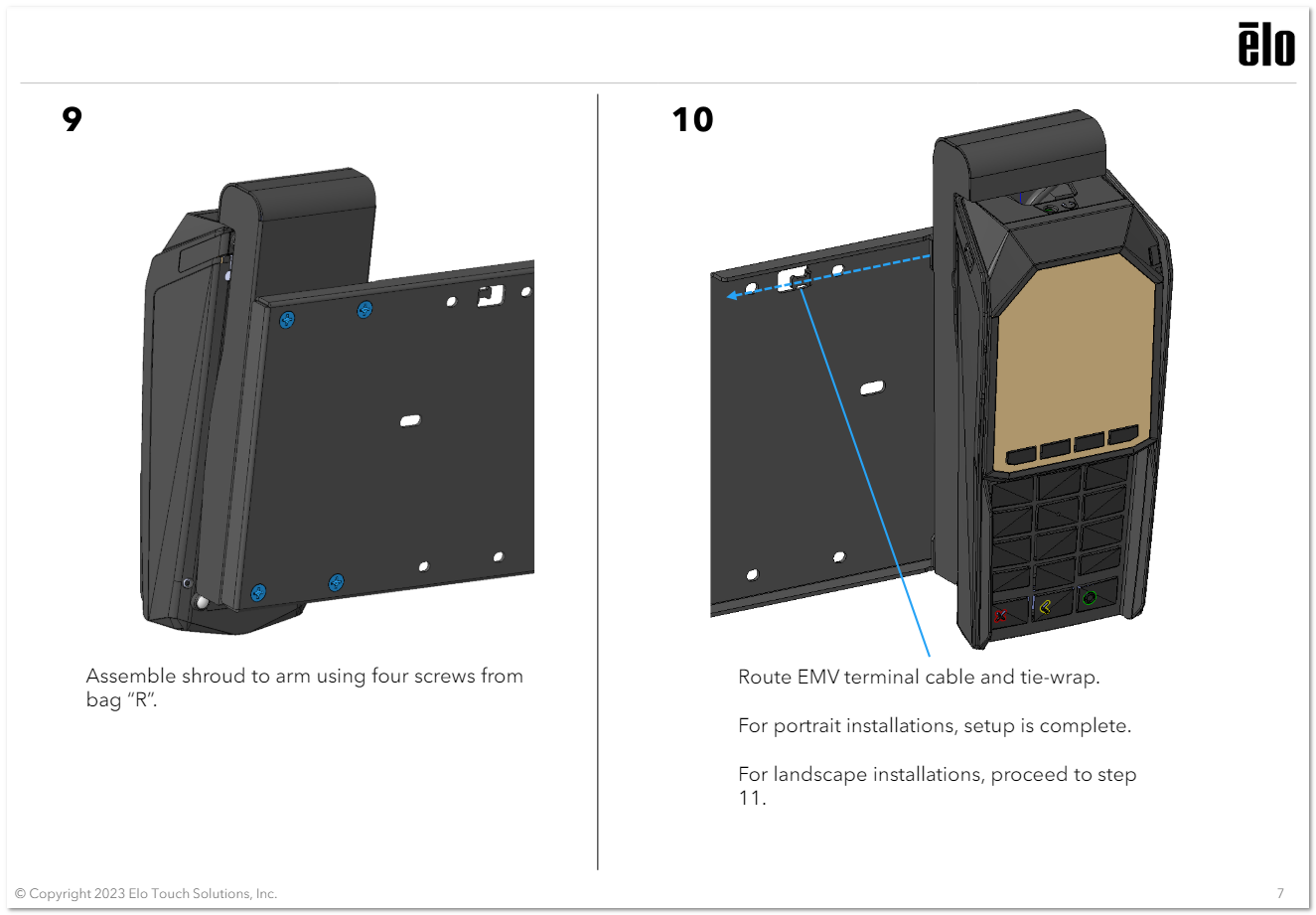

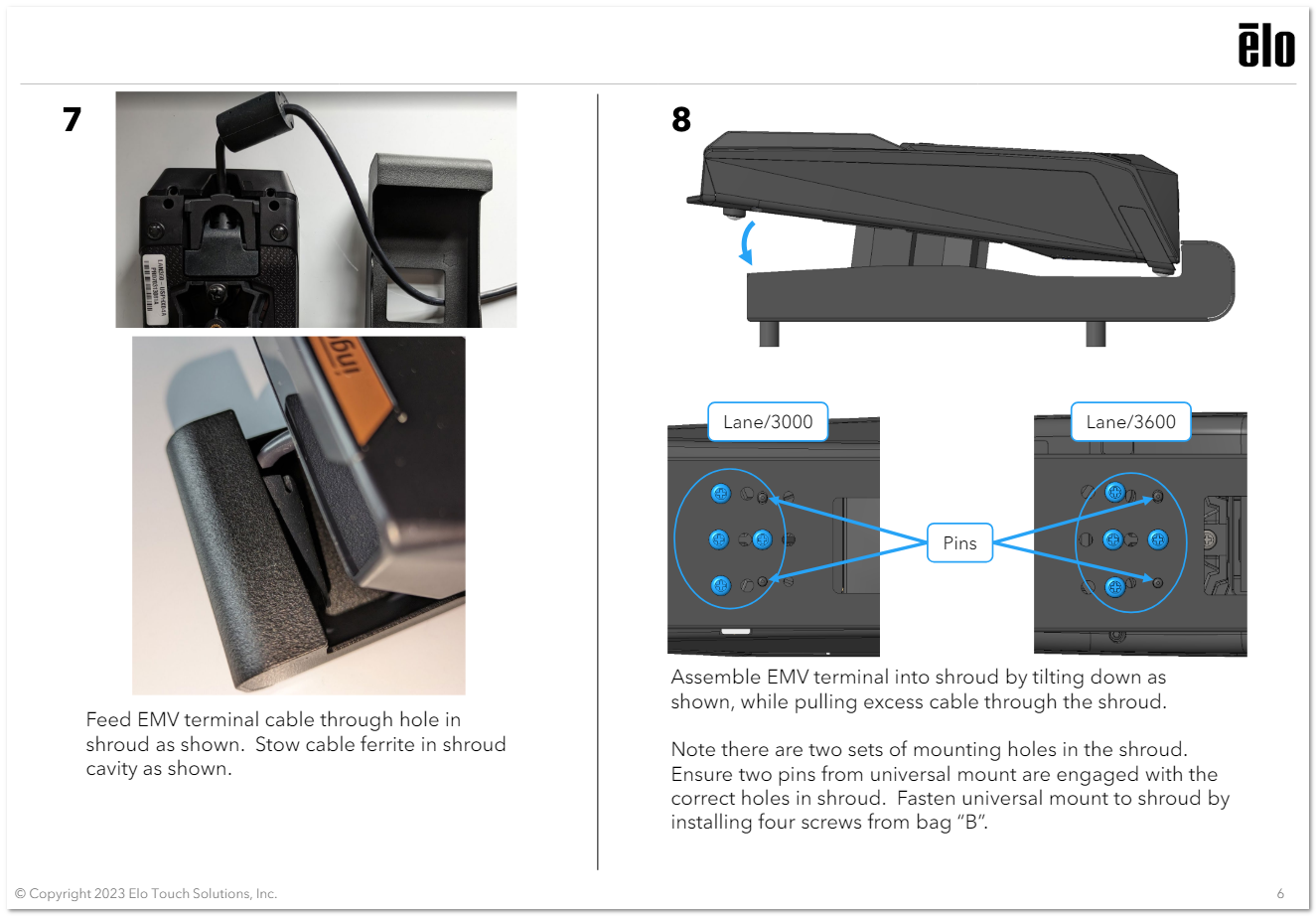

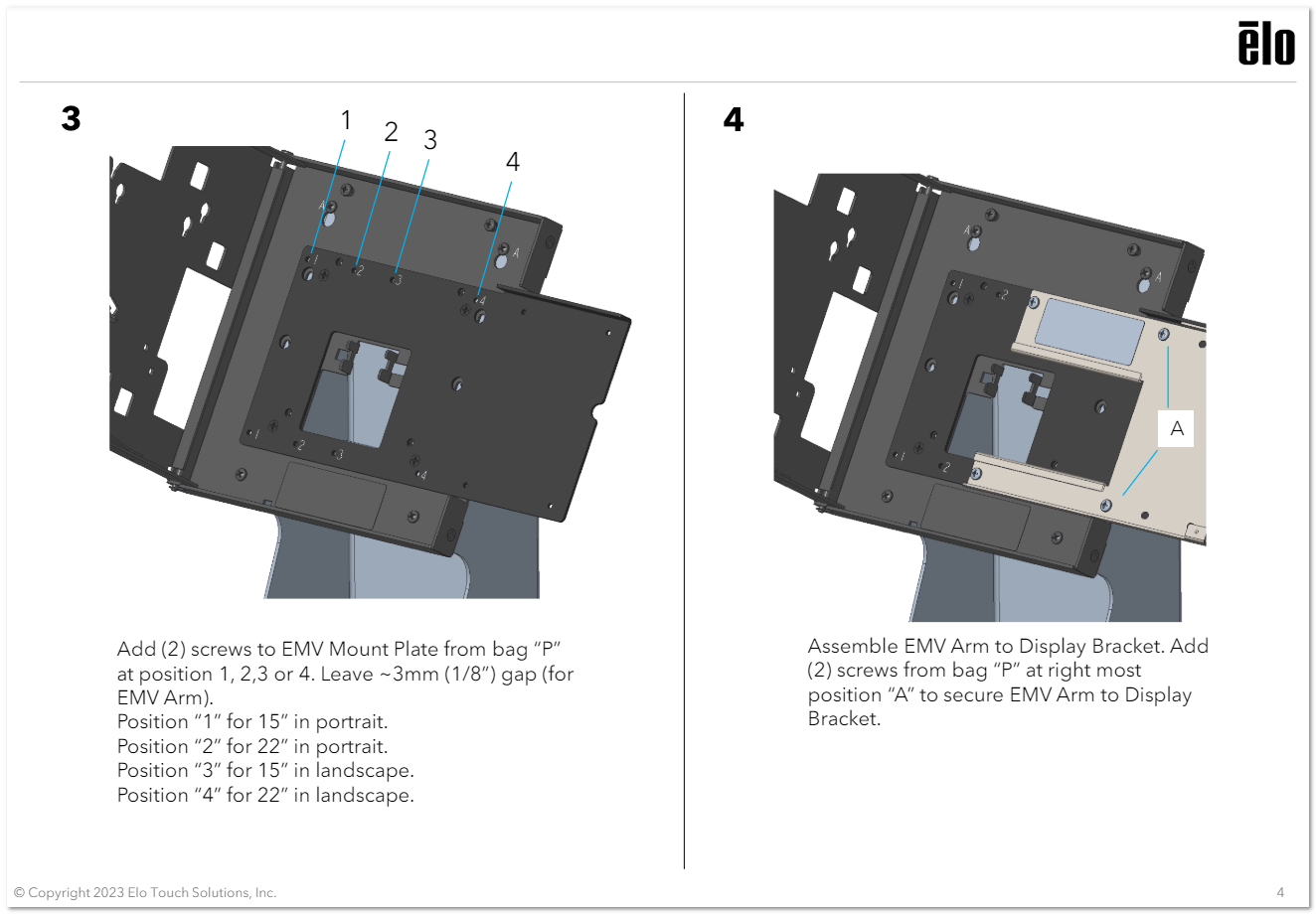

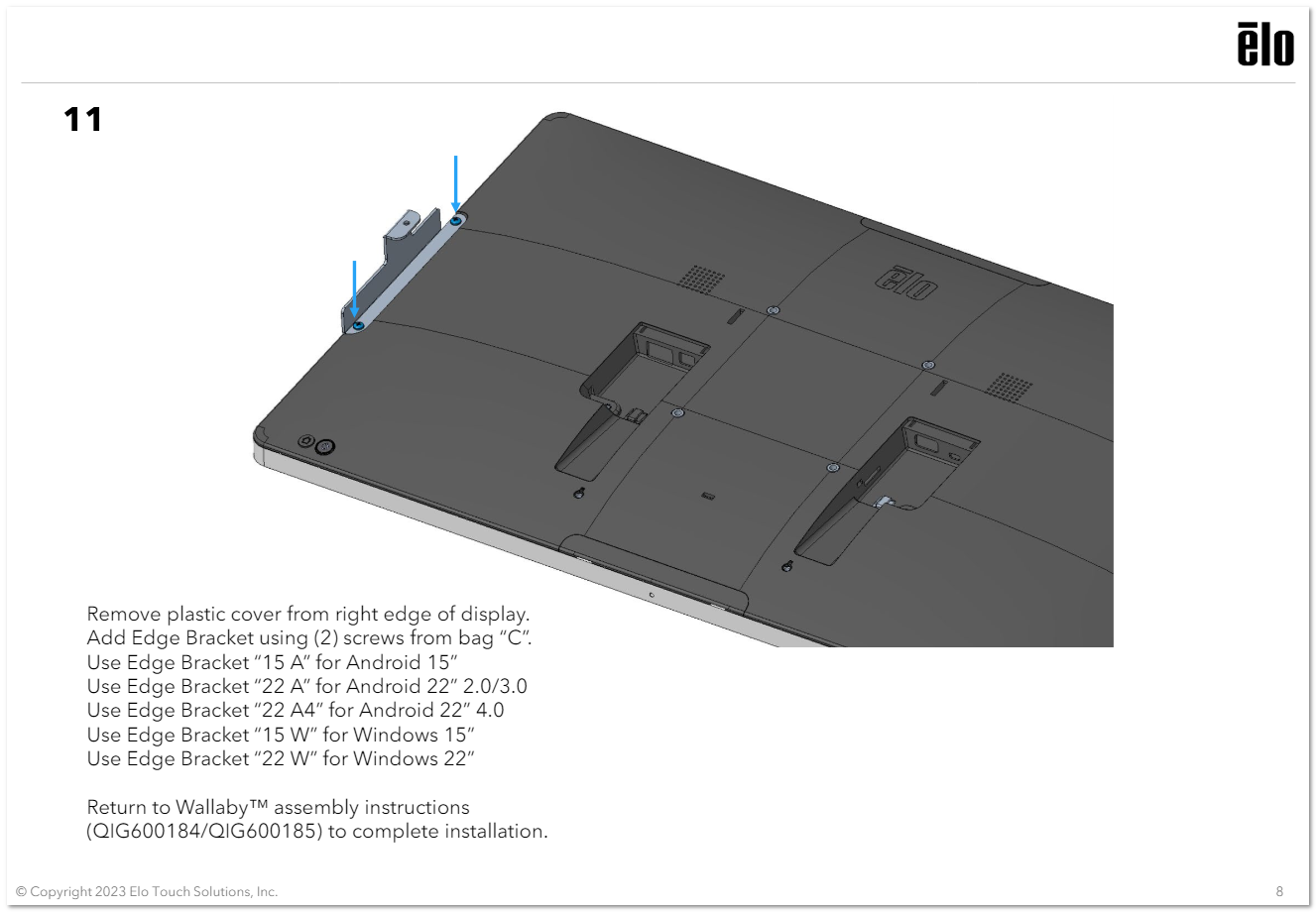

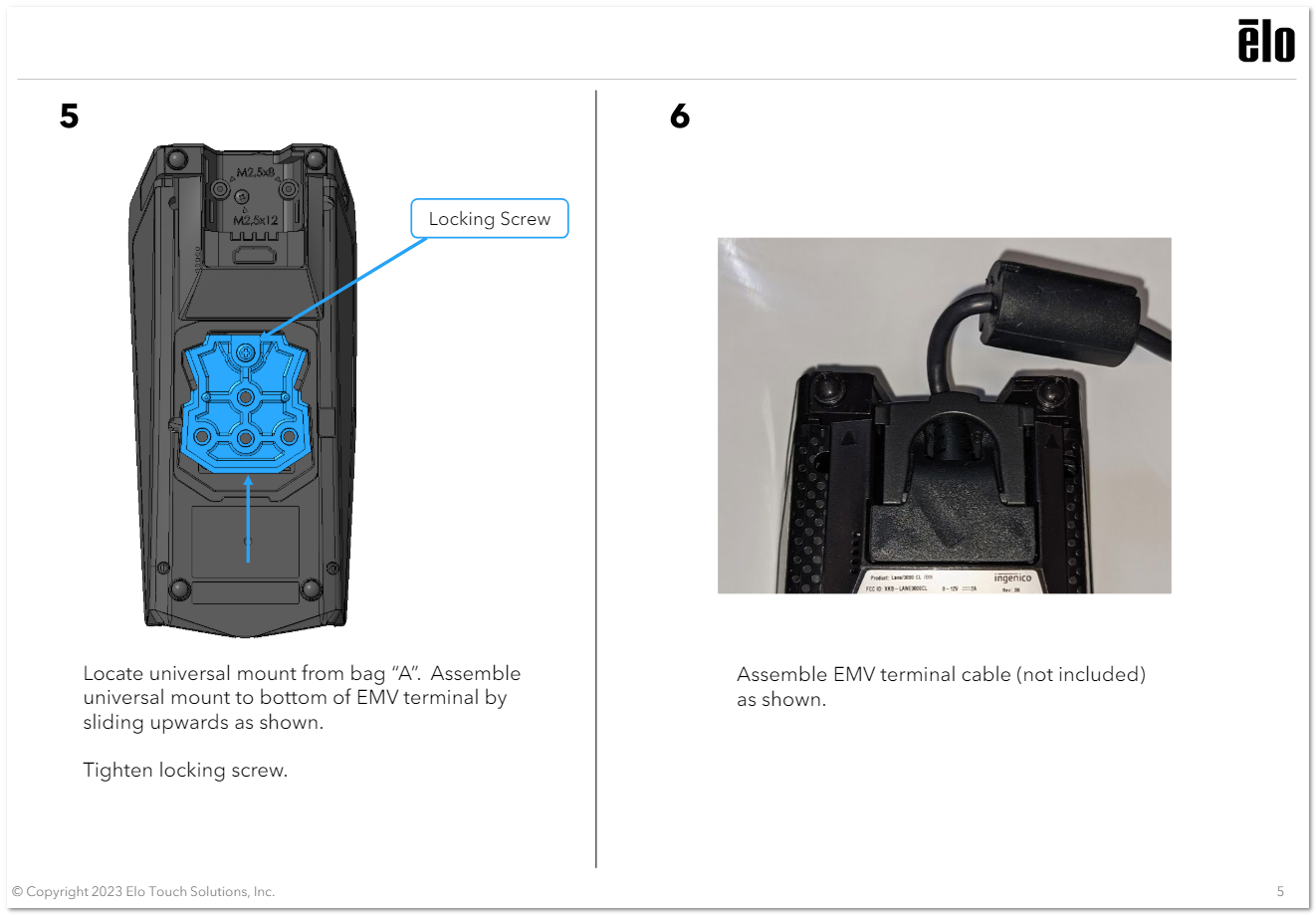

Montageanweisungen


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
