This article provides E211544 GPIO Cable information and specs

Below is information for E211544 GPIO Cable which is used on Elo's Android AIO systems; I-Series and Backpack. This cable connects to a GPIO port on Elo products that have that feature. One end has connector to interface with the product, the other end is flying leads to connect to customer's GPIO solution or connector.

Elo products with GPIO support:

• One output with 5V/200mA.
• Two input (“1”=5V , “0”=GND).

Elo GPIO Cable Part Number: E211544: KIT, GPIO Cables for AAiO
Description: GPIO port interface cable for I-Series all-in-one signage

Specifications and Pin-Out:

• Current - 200 mA
• Voltage - 5 V
• Compatibility - I-Series for Android
• Cable Pinout
  • Pin 1 – 5V Output
  • Pin 2 – Input Connection 1
  • Pin 3 – Input Connection 2
  • Pin 4 – Ground
  • Pin 5 – Ground
• Dimensions - 1.8 m

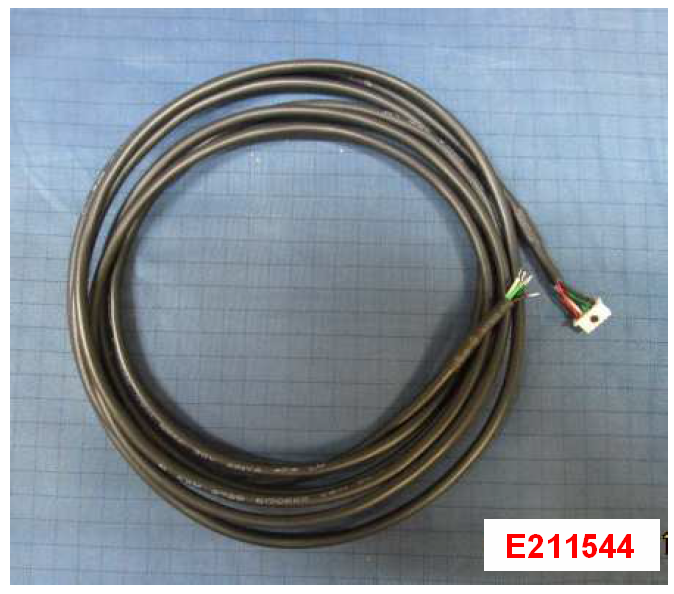

Photo:

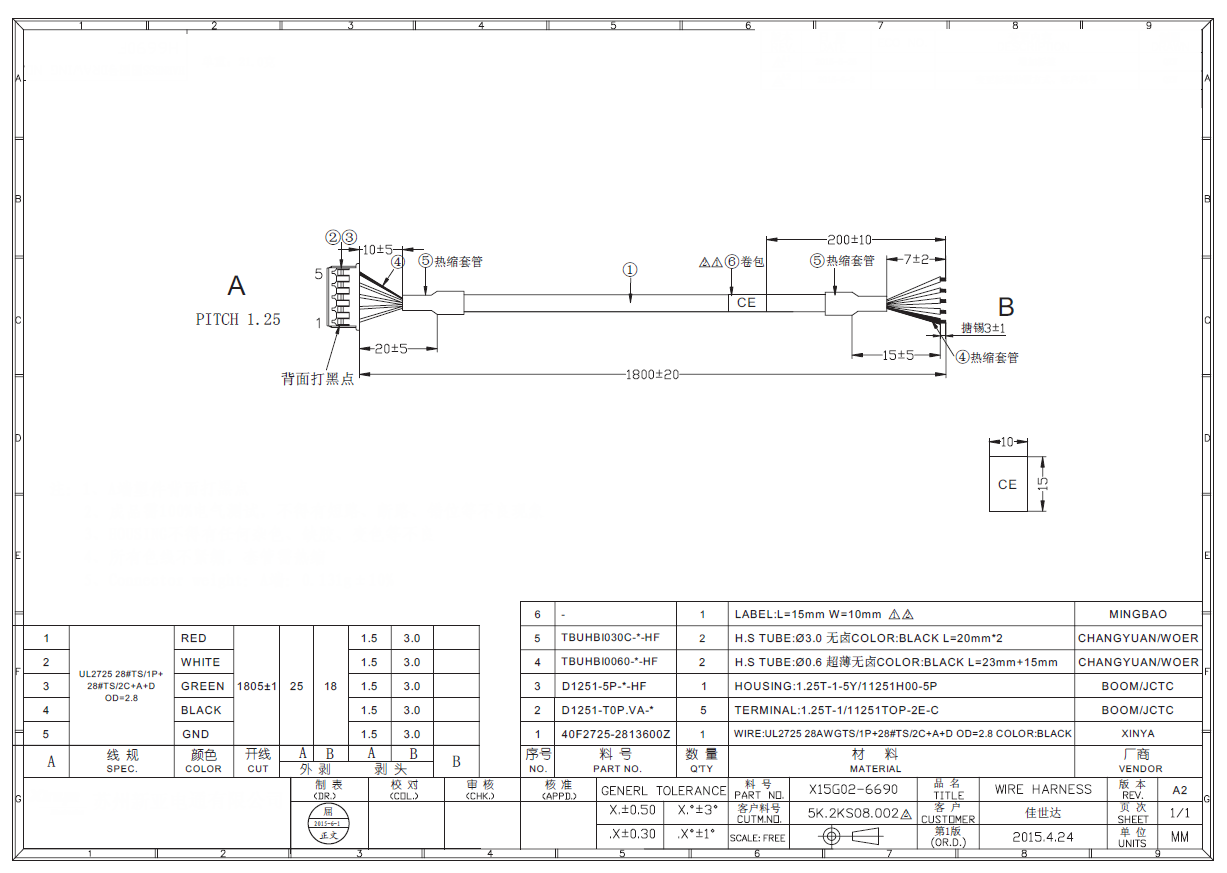

Drawing:
