This article describes the steps to turn off the Elo Splash Screen (Elo logo) during 90-Series product power-on

Procedure to Disable the Elo Splash Screen on a 90-Series Monitor

The Elo Logo setting is part of the On-Screen Display (OSD) menu within the Factory mode. The following instructions outline the steps to access the Factory menu and disable the Elo Logo setting.

Steps:

1. Connect the monitor: Connect the touch monitor to a video source and attach the remote control cable. Press the Power button to confirm proper display operation, then press Power again to turn off the display.

2. Access the Factory Menu: While holding the Select button, press the Power button to turn the monitor on. This action will allow access to the Factory menu.

3. Enter the OSD Menu: Press the Menu button. The letter F should appear in the upper left corner of the OSD menu. If the letter F does not appear, turn off the display and repeat step 2.

4. Navigate to the Factory Menu: Use the t or u (left or right arrow) buttons to scroll through the OSD menu until the F is highlighted. Press Select to enter the Factory menu.

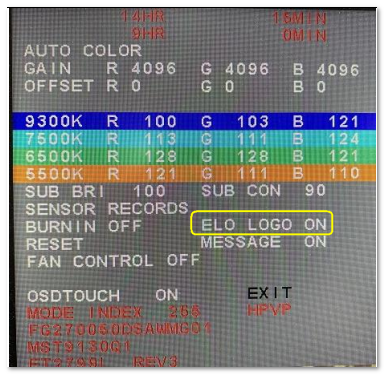

5. Disable the Elo Logo: Use the u (right arrow) button to scroll through the options and highlight ELO LOGO. Use the t (left arrow) button to change the setting to Off, then press Select. Please ensure that no other options are modified unintentionally.

6.

7. Exit the Factory Menu: Use the u button to scroll to the Exit option and press Select to exit the Factory menu.

8. Verify the Setting: Cycle power to the monitor (unplug and replug the DC power) to verify that the Elo logo no longer appears during the power-on sequence.
