This article discusses how to set a static IP address in Android 7.1

Please see the information below regarding setting a static IP in Android 7.1.

Steps to Set a Static IP Via Android Setting

1. While in EloView mode, access the Control Panel by pressing the Home and Power buttons on the back of your I-Series simultaneously.

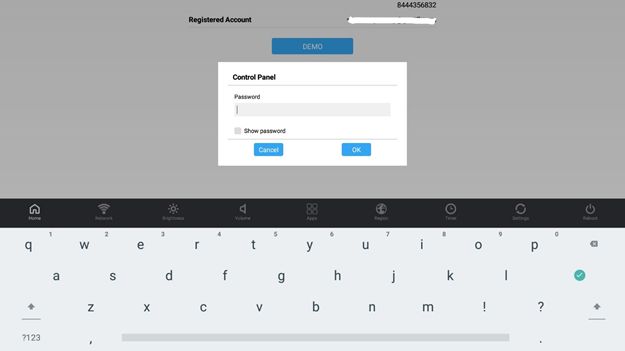

2. After entering in your password (default is “1elo”), navigate to the Apps section, located at the bottom of your screen.

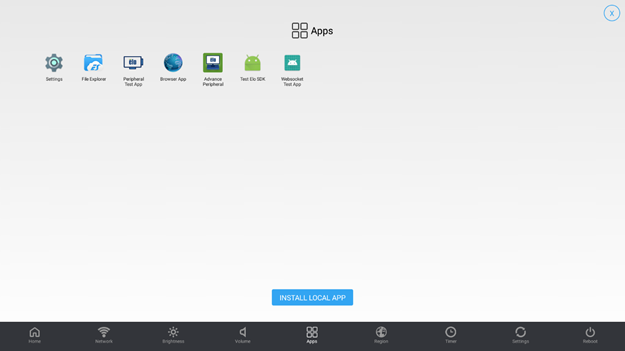

3. From the Apps screen select “Settings”

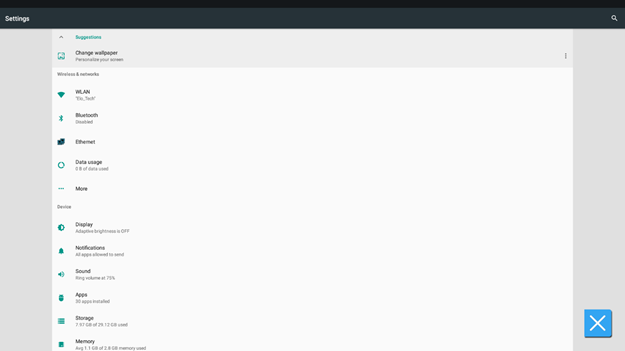

4. Select “Ethernet” to access the native Android settings

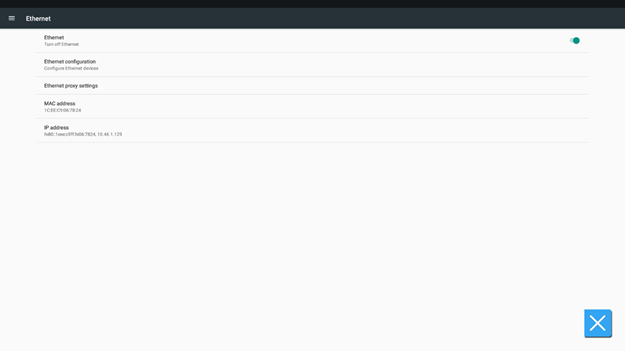

5. You should have 5 options available for Ethernet. Select the option “Ethernet configuration.

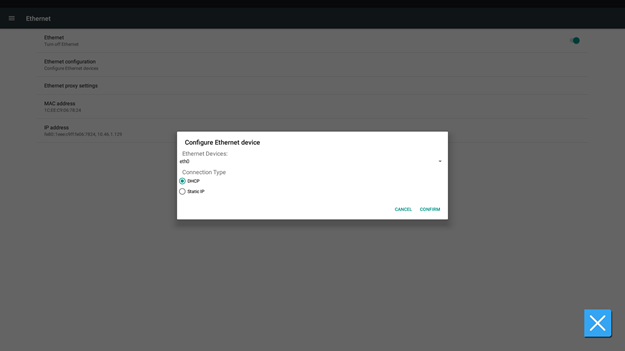

6. Now change the Connection Type from DHCP to Static IP



7. After the Connection Type has been changed, you will input the appropriate values in the field below and select confirm:



To exit back to the Control Panel password screen, select the Blue X located at the bottom right hand corner of your screen.
