This article explains how to use filter profiles in EloView 3

See steps below for how to use filter profiles in EloView 3

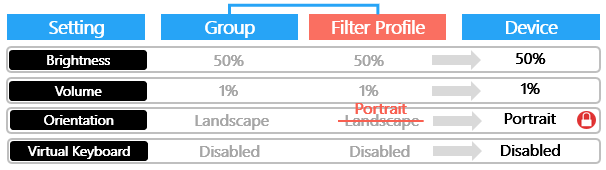

Filter Profiles allow you to create a subset of devices within a group or filter, giving you even more granular control over device settings. Moreover, settings established as part of a filter profile are automatically locked for that subset of devices. That means they cannot be overwritten by subsequent changes made at the filter, group, or account levels. And if a device is part of multiple filter profiles, the first filter profile to change a given setting wins. That setting is immediately locked and cannot be edited by other filter profiles.



Creating a Filter Profile (for a Group or Filter) and Lock Settings

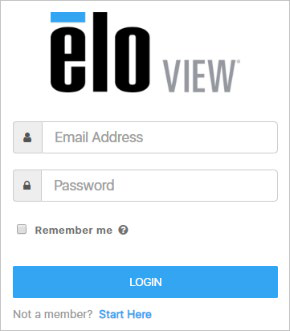

1. Login to the EloView website – https://manage.eloview.com

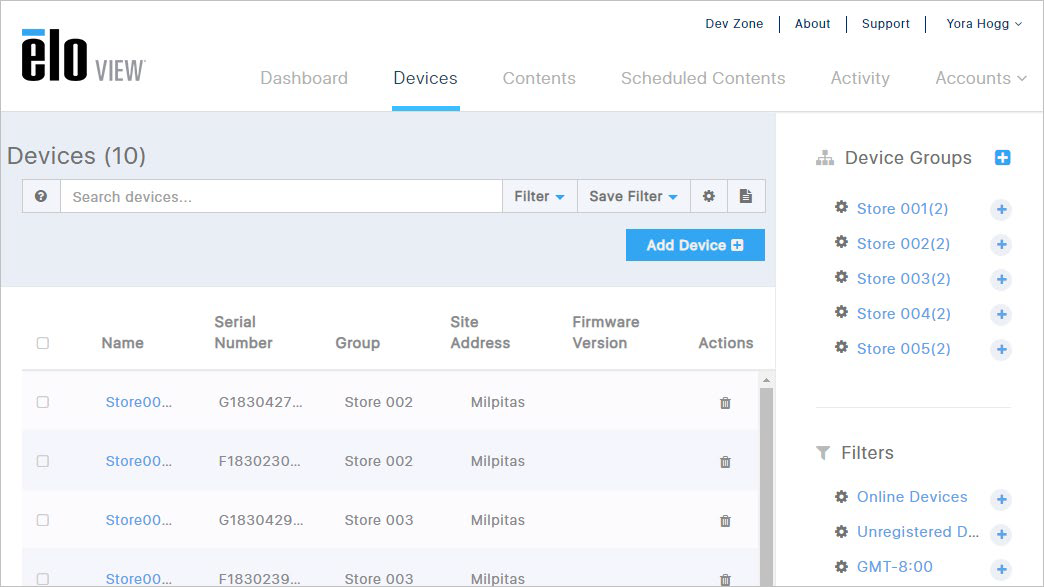

2. In the “Devices” section, click the plus sign (+) next to a group or filter.

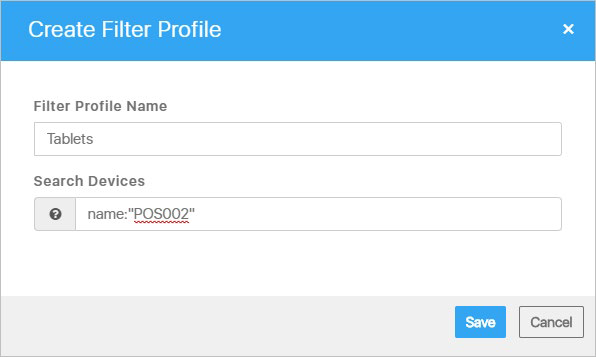

3. Specify a name for the filter profile

4. Specify a filter for the filter profile

5. Click the Save button

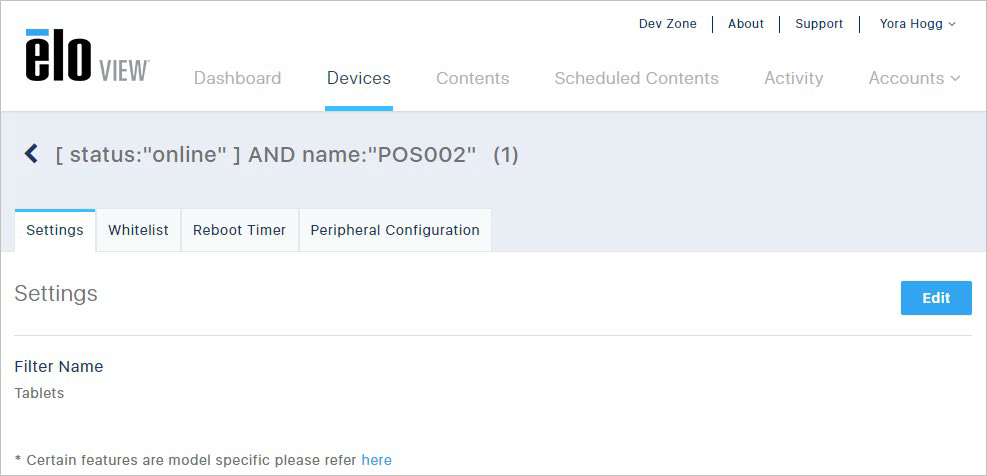

6. To establish settings for the filter profile, click the Settings icon next to the filter profile name



7. On the “Settings” tab, click the Edit button

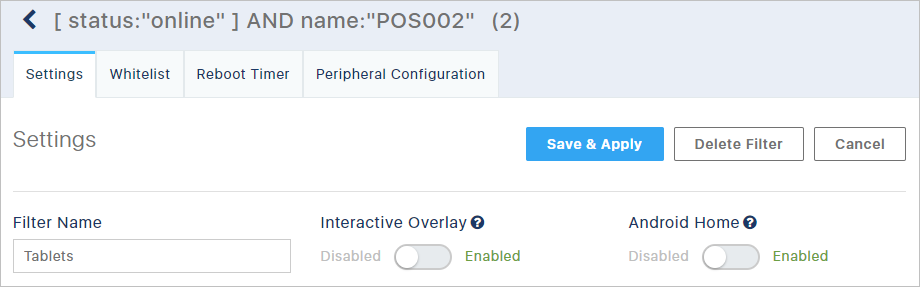

8. Establish all appropriate settings that will apply to the subset of devices within the group or filter. Modified settings are automatically locked for that subset of devices and cannot be overwritten by subsequent changes.

 Filter Name
 Site Name
 Site Contact
 Brightness
 Volume
 Control Panel Password
 Access Restriction Password
 Time Zone
 Physical Analytics
 NTP URL
 Interactive Overlay
 Android Navigation Bar
 Display Timer
 Orientation
 Language
 Android Home
 Device Screenshot
 Auto Play
 Network Configuration
 Home Button
 Power Button
 Delayed Content Deployment
 Wi-Fi



9. When done, click the Save & Apply button.

10. The filter profile settings will only display those settings that have been modified.

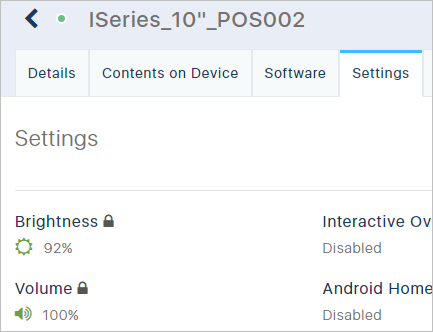

11. For a device that is part of the Filter Profile, note that those settings are locked and cannot be modified.



Deleting a Filter Profile to Unlocked Settings

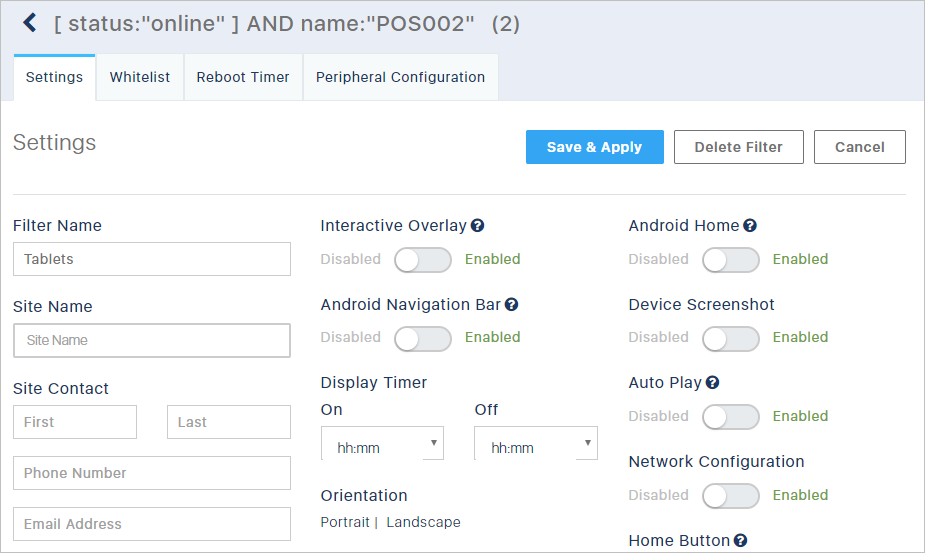

12. To remove previously-established filter profile settings, edit the filter profile and click the Delete Filter button.

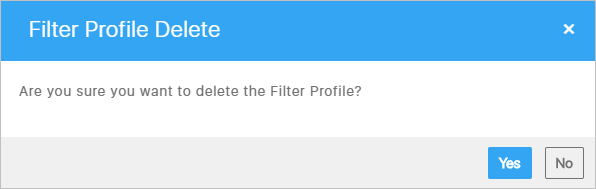

13. Click Yes to confirm



14. For a device that was previously part of the Filter Profile, note that those settings are now unlocked and can be modified.
