How can I lock USB ports on my device(s) in EloView 3 (Ev3)?

This article explains how to lock USB ports on devices in EloView 3

See below steps for how to lock USB ports on a device in EloView.

External flash and hard drives are one of the most significant potential threats to any computer system. With EloView, you can lock down any USB port on a managed device to protect it from malware and viruses, as well as unauthorized data transfers. Unlike many software-based solutions which block access to USB devices but leaves the USB port fully-functional, EloView powers down the USB controller chip itself, rendering the USB port useless. This hardware-based approach is much more secure.

Locking USB Ports

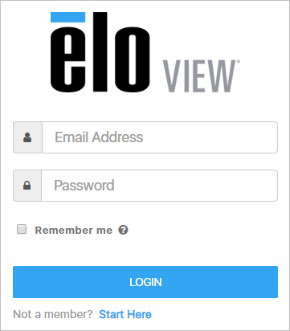

1. Login to the EloView website – https://manage.eloview.com

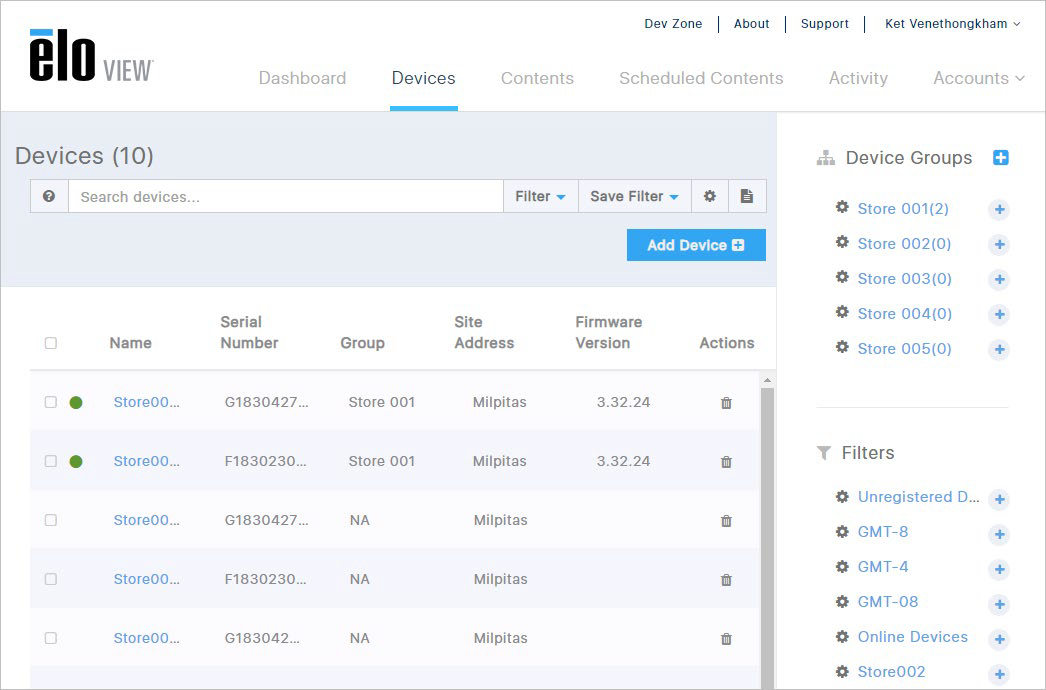

2. In the “Devices” section, click the appropriate device to configure.

 Alternatively, click the Settings icon next to the appropriate group or filter

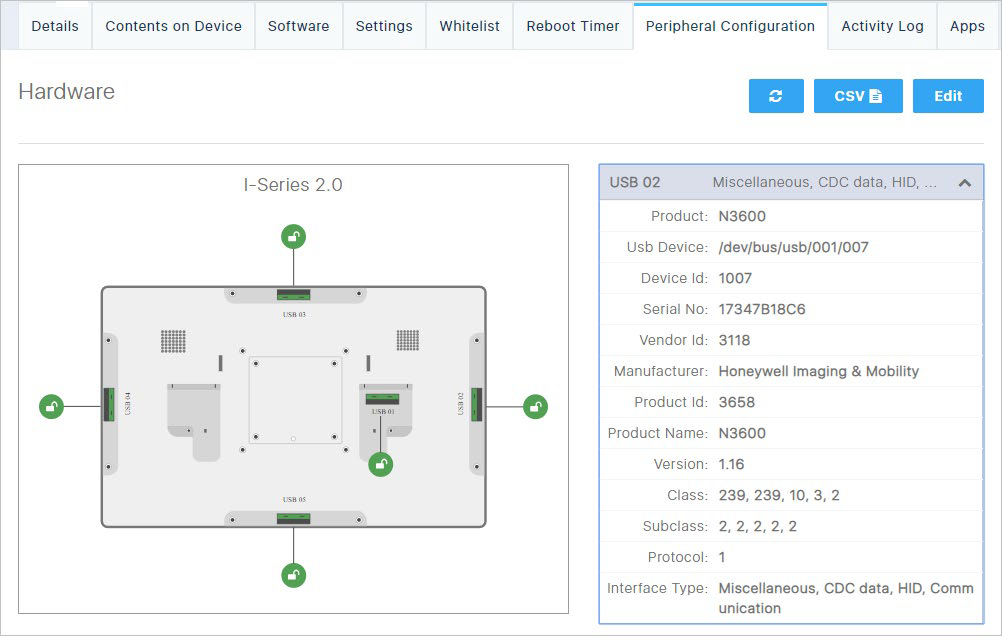

3. In the “Peripheral Configuration” area, you can view detailed information about each USB-attached device

 Product
 USB Device
 Device ID
 Serial Number
 Vendor ID
 Manufacturer
 Product ID
 Product Name
 Version
 Class
 Subclass
 Protocol
 Interface Type

4. In the “Peripheral Configuration” area, click the Edit button

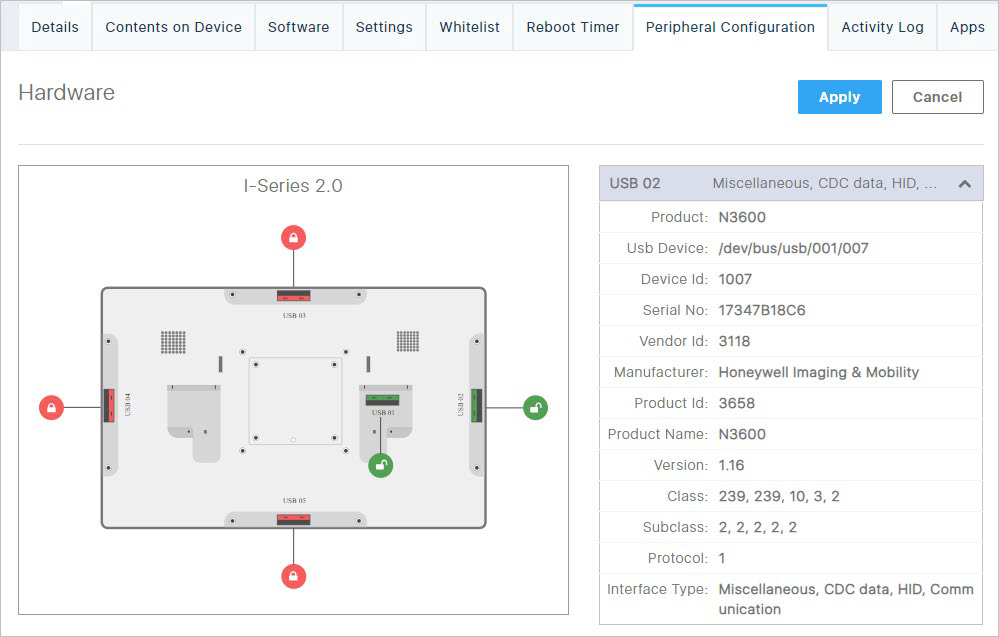

5. Click the ports that needs to be locked down

6. Click the Apply button when done

Downloading a Detailed Device Report

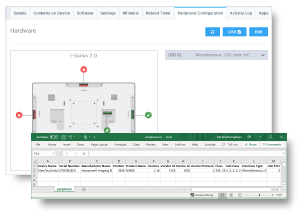

7. Click the CSV button to download a report (peripheral.csv) with detailed information about each USB-attached device.

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
