This article explains how to download the Network Configuration Template in EloView 3

With EloView, you can perform many network configuration tasks remotely and without having to go into the Android settings.

• Changing Static IP, Gateway and DNS settings
• Setting up secure and un-secure Wi-Fi networks
• Setting up network priority to ensure consistent connectivity and smooth transition between available Wi-Fi networks
• Setting up proxy server for each Wi-Fi network and, optionally, a list of URLs that should bypass the proxy server
• Enabling/disabling the “Avoid poor connections” setting
• Enabling/disabling the “Open Network Notification” setting

Downloading Network Configuration Template

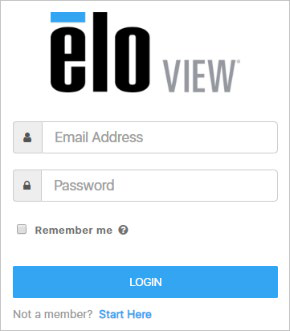

1. Login to the EloView website – https://manage.eloview.com



2. In the “Accounts” section, click the Account Settings link



3. Click on the Settings tab

4. Click the Edit button

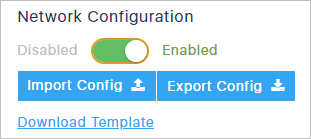

5. Enable the “Network Configuration” setting

6. Click the Download Template link

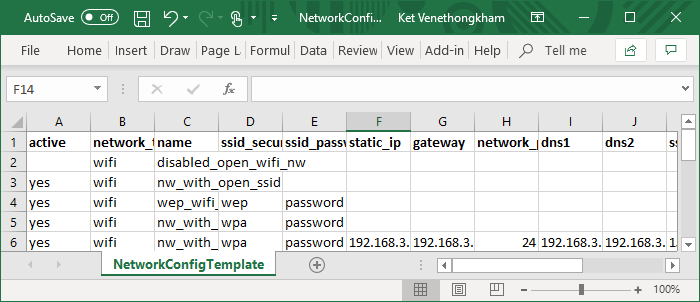

7. Open the downloaded NetworkConfigTemplate.csv file

8. Using the template as a guide, enter all relevant network and proxy settings. Maximum 5 Wi-Fi configurations and 1 Ethernet configuration.

• active
• network_type
• name
• ssid_security_type
• ssid_password
• phase_2_authentication
• identity
• anonymous_identity
• static_ip
• gateway
• network_prefix
• dns1
• dns2
• ssid_proxy_host
• ssid_proxy_port
• ssid_priority – specify a number between 1 (lowest priority) and 5 (highest priority). This setting applies to Wi-Fi connections only.
• disable_open_network_notification
• proxy_exclusion_list
• avoid_poor_wifi_connection
