This article provides specifications for P/N: E538507: ELO-KIT-CABLE-DVI-D-to-HDMI

See below for specifications for P/N: E538507: ELO-KIT-CABLE-DVI-D-to-HDMI

E538507

• Description: Elo cable kit, DVI-D to HDMI1.4 cable
• The DVI-D to HDMI cable shall include two types of plugs on the cable. One side shall be a standard DVI-D (Single Link) male plug and the other side a standard HDMI 1.4 Type A male plug.
• Length: 1.8m (6-foot)
• Color: Black
• All cables and connectors shall be PC-99 compliant

Drawings:

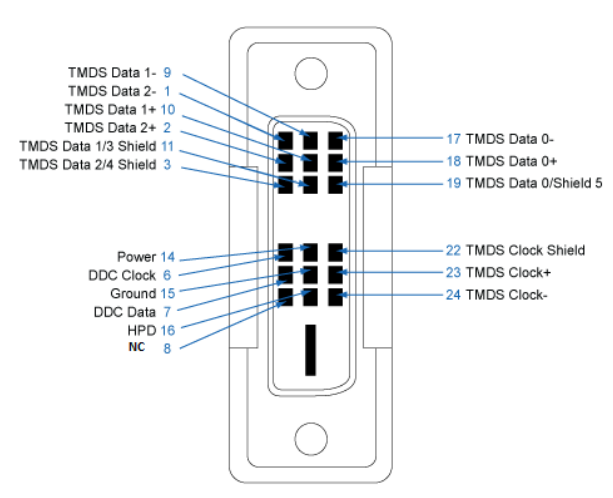

DVI-D (Single Link) wiring diagram shall be as follows:



Standard HDMI 1.4 Type A wiring diagram shall be as follows:
