This article provides specifications for P/N: E583090: ELO-KIT-CABLE-DVI-D-to-DP

Below are specifications for Elo P/N: E583090: ELO-KIT-CABLE-DVI-D-to-DP.

E583090

• Description: 1.8m DVI-D to DisplayPort video Cable
• The DVI-D to DisplayPort cable shall include two types of plugs on the cable. One side shall be a standard DVI-D (Dual Link) male plug and the other side a standard DisplayPort 1.2 male plug.
• Length: 1.8m (6-foot)
• Color: Black
• All cables and connectors shall be PC-99 compliant

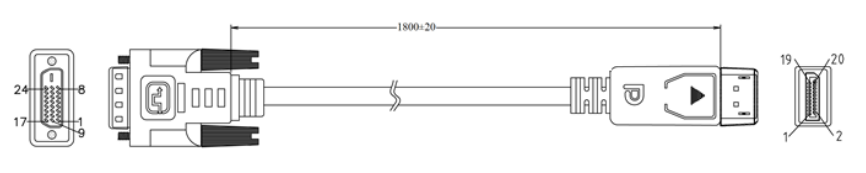

Drawings:

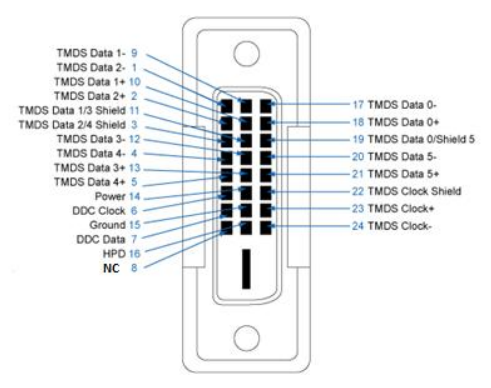

DVI-D (Dual Link) wiring diagram shall be as follows:

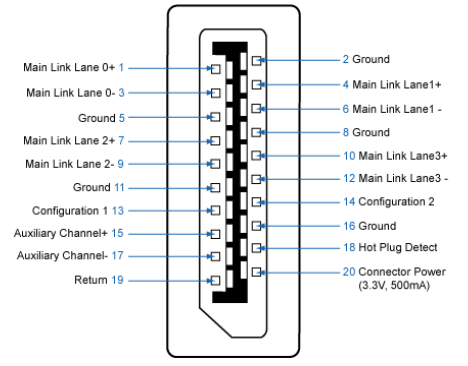

Standard DisplayPort 1.2 wiring diagram shall be as follows:
