Where can I find specifications for Elo P/N: E583288: ELO-KIT-CABLE-HDMI-to-DP?

This article provides specifications for Elo P/N: E583288: ELO-KIT-CABLE-HDMI-to-DP

Below are specifications for Elo P/N: E583288 - ELO-KIT-CABLE-HDMI-to-DP.

  • Description: 1.8m HDMI to DisplayPort video Cable
  • The HDMI to DisplayPort cable shall include two types of plugs on the cable. One side shall be a standard HDMI 1.4 Type A male plug and the other side a standard DisplayPort 1.2 male plug.
  • Length: 1.8m (6-foot)
  • Color: Black
  • All cables and connectors shall be PC-99 compliant

Drawings:
HDMI to DisplayPort Cable Diagram

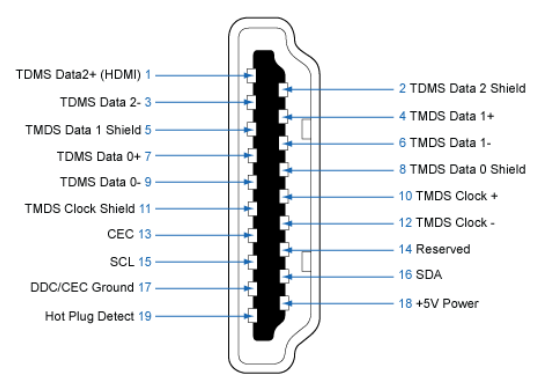

Standard HDMI 1.4 Type A wiring diagram:

HDMI 1.4 Wiring Diagram

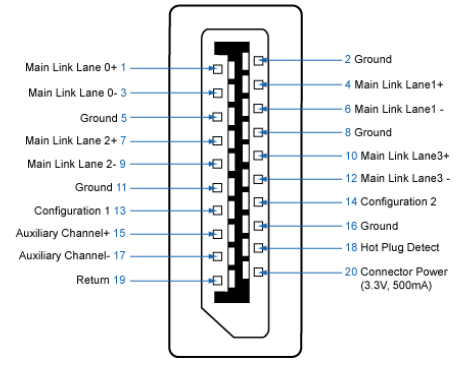

Standard DisplayPort 1.2 wiring diagram:

DisplayPort 1.2 Wiring Diagram
