Where can I find information about the layout of the Elo PayPoint Plus devices?

This article provides information about the layout of the Elo PayPoint Plus devices

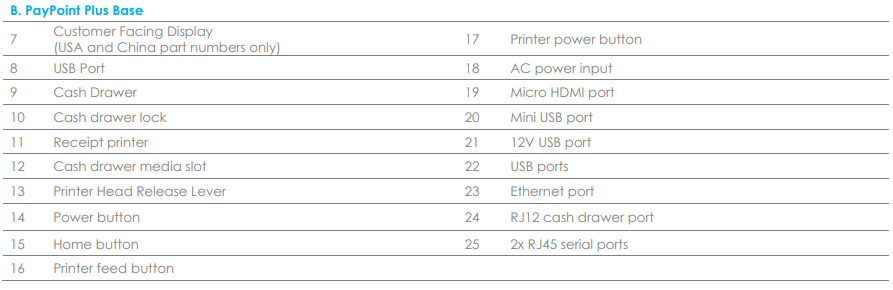

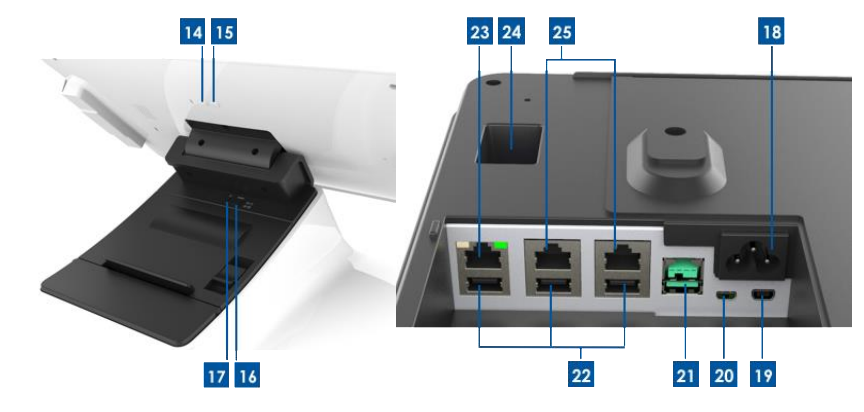

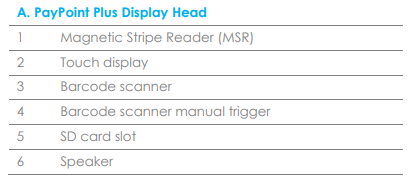

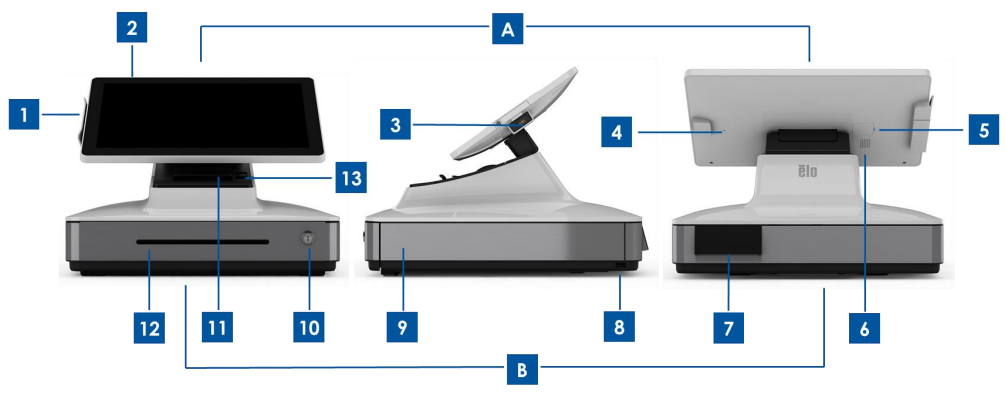

Elo PayPoint Plus Layout:
