How do I install the paper roll guide on a PayPoint system?

This article provides instructions on how to install the paper roll guide on a PayPoint device

For customers that require a 58mm width receipt paper roll, the PayPoint device ships with an insertable paper roll guide. See below for how to install the guide.

Photo of guide

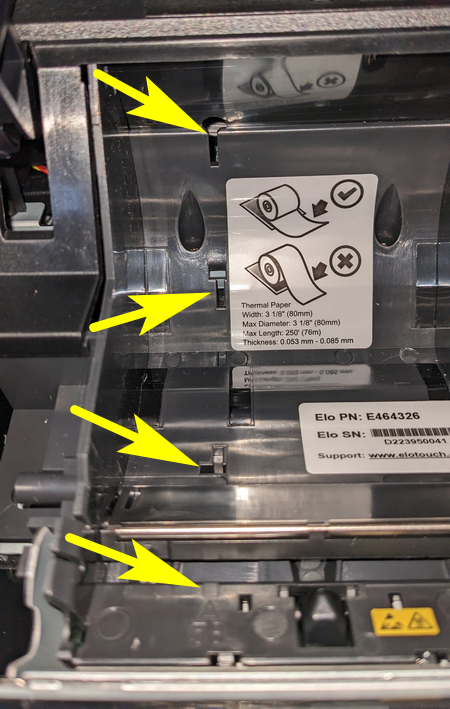

Mounting locations in printer bay

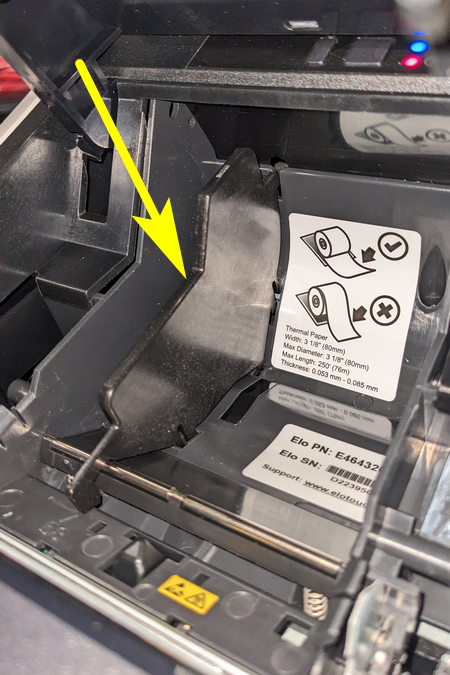

Photo shows paper roll guide installed

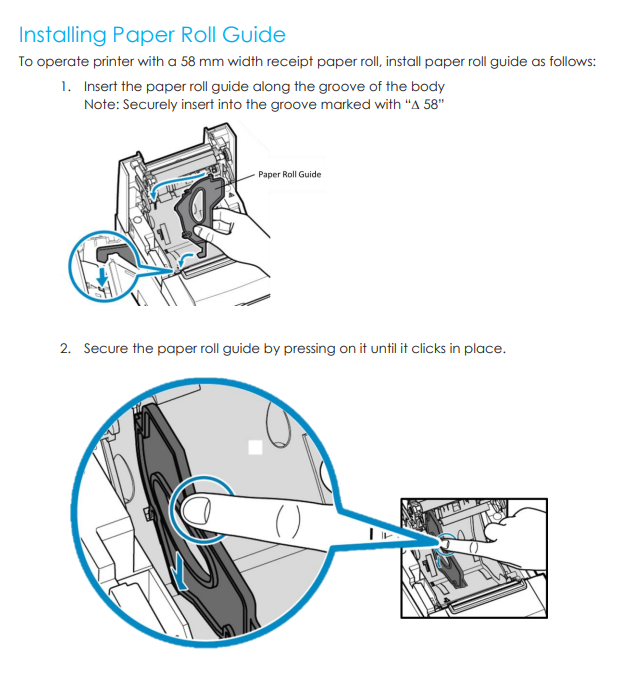

Installation steps from PayPoint User's Manual
