Where can I find the pinout for E196292, X-Series RS232 to DB9 Cable?

This article contains the pinout for the E196292, X-Series RS232 to DB9 Cable

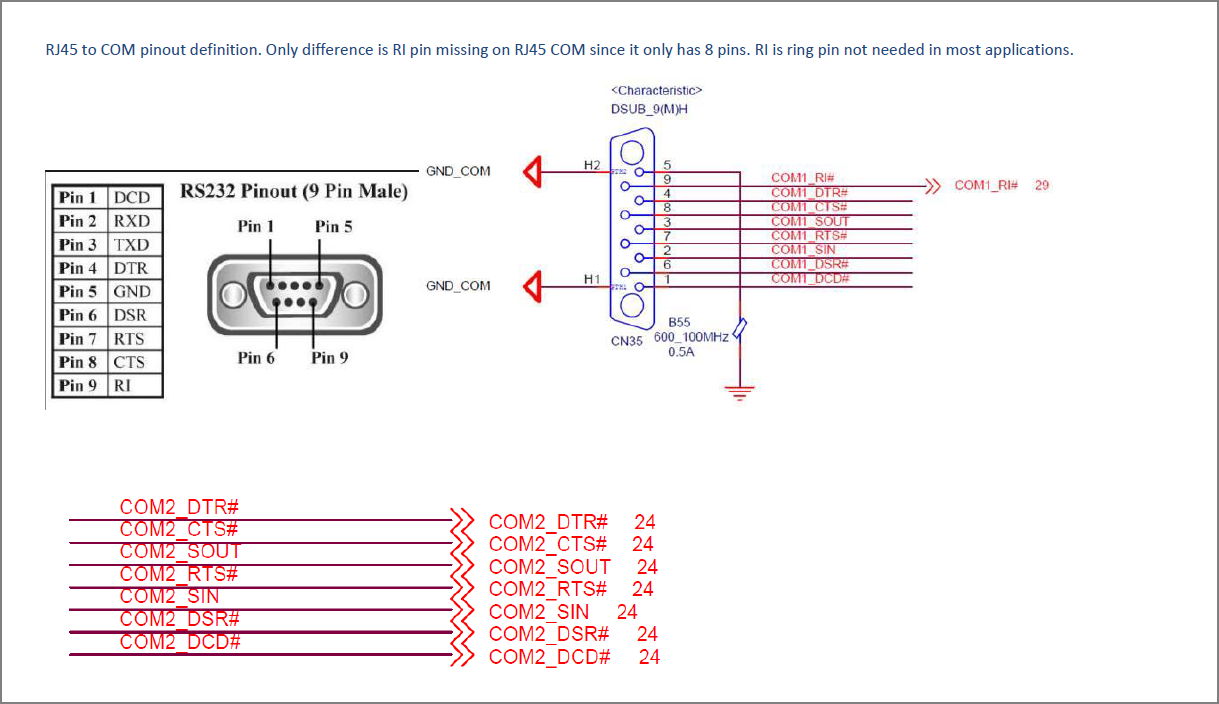

Below is drawing and pinouts for P/N: E196292, X-Series RS232 to DB9 Cable.

E196292 CABLE,COM,RJ45-DSUB15,300mm.png

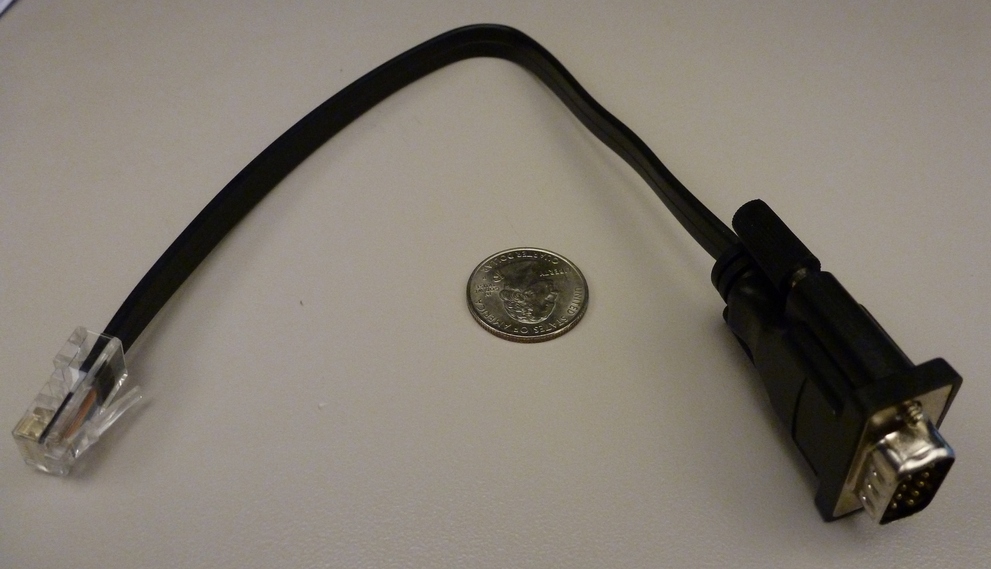

E196292 CABLE,COM,RJ45-DSUB15,300mm_2.pngE259086_RJ45_DB9_Cable.jpg
