What are the differences between the EloPOS DB9 to RJ45 cable and the X-Series DB9 to RJ45 cable?

This article contains information regarding the differences between the EloPOS DB9 to RJ45 cable and the X-Series DB9 to RJ45 cable

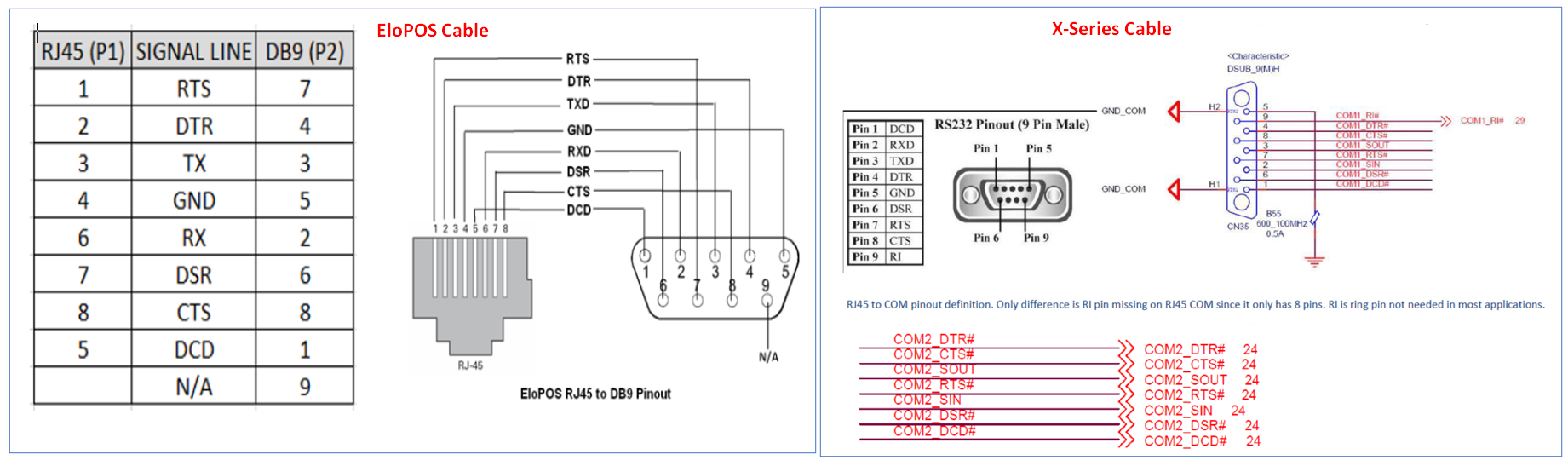

Below shows differences in pinout between the EloPOS DB9 to RJ45 cable and the X-Series DB9 to RJ45 cable. These two cables are NOT interchangeable.

See complete specifications for these cables in the below articles:




Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
