How can I disable the Android Navigation Bar on I-Series 2.0 running Android 7 Devices using the EloView 3 (EV3) Home SDK?

How to Disable the Android Navigation Bar on I-Series 2.0 (Android 7) via EloView 3 Home SDK

Audience: Public / Elo Customers, Android Developers, IT Administrators & Integrators

Article Type: Developer Configuration & SDK Testing Guide

On Elo I-Series 2.0 for Android devices running Android 7.1.2 Nougat, developers and administrators can programmatically hide or disable the system Android Navigation Bar (Back, Home, and Recent Apps soft keys) using the EloView® Home SDK to create a fully locked-down, immersive kiosk experience.

You can validate and test this functionality directly on the device using the pre-installed EloViewHomeSDK TestApp utility.

Step-by-Step TestApp Walkthrough

  1. Access Control Panel: Open the on-device Device Control Panel.
  2. Navigate to the Apps tab and launch the EloViewHomeSDK TestApp.

  3. From the main SDK menu, select System:

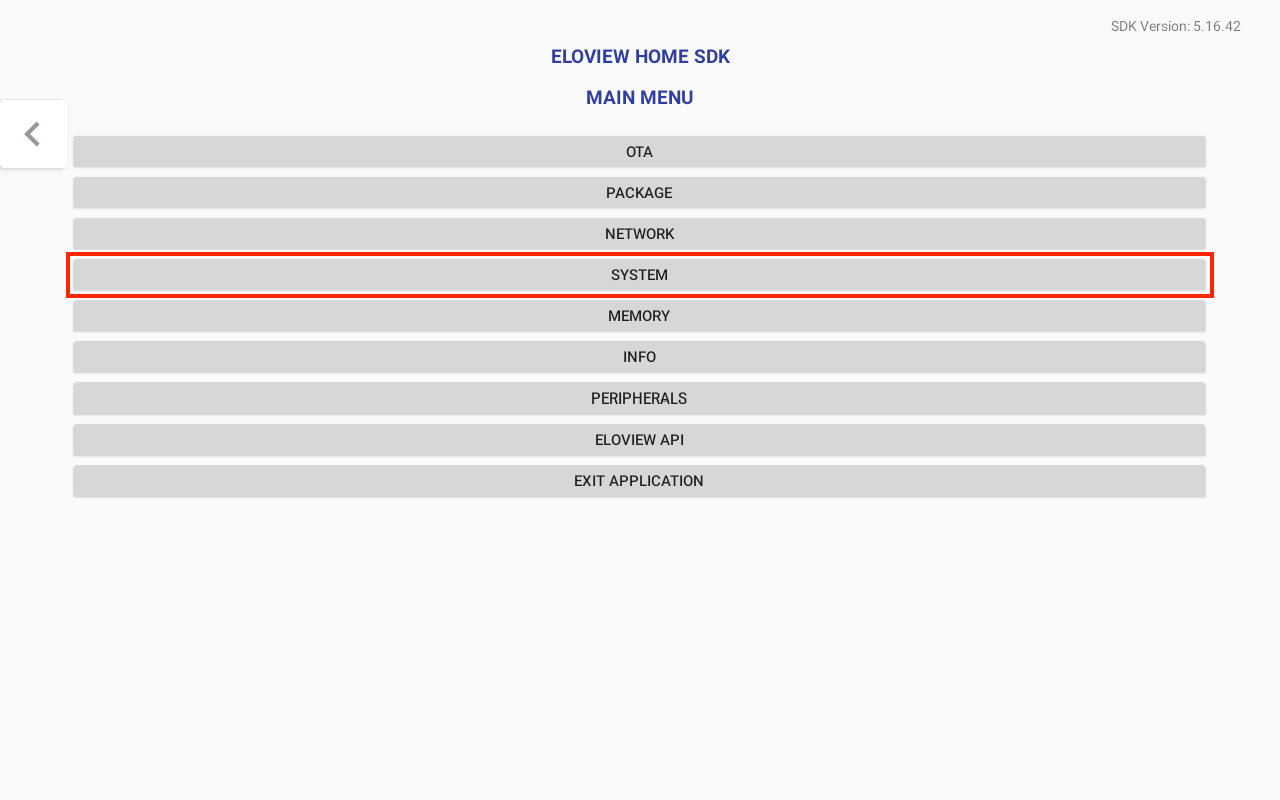

    EloView Home SDK Main Menu selecting System

  4. From the System API menu, select Account Manager:

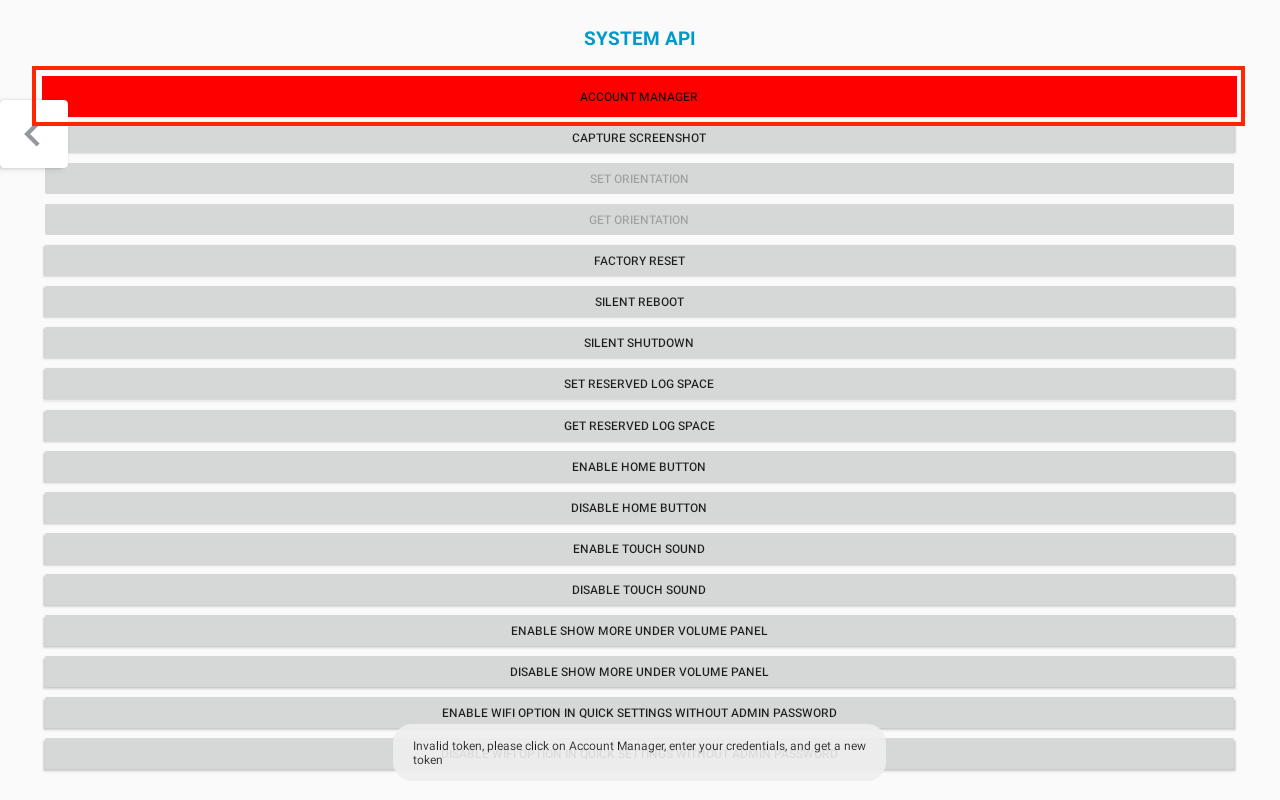

    Selecting Account Manager in System API menu

  5. Tap on Load and Verify Token to authenticate the SDK session:

    Tapping Load and Verify Token in Account Manager
  6. Use the on-screen Android back button to return to the System API Menu.
  7. Scroll down to the Set Navigation Bar API section.

  8. Select the Disable radio button (or Enable to restore), then tap the Set Navigation Bar execution button to apply the change immediately:

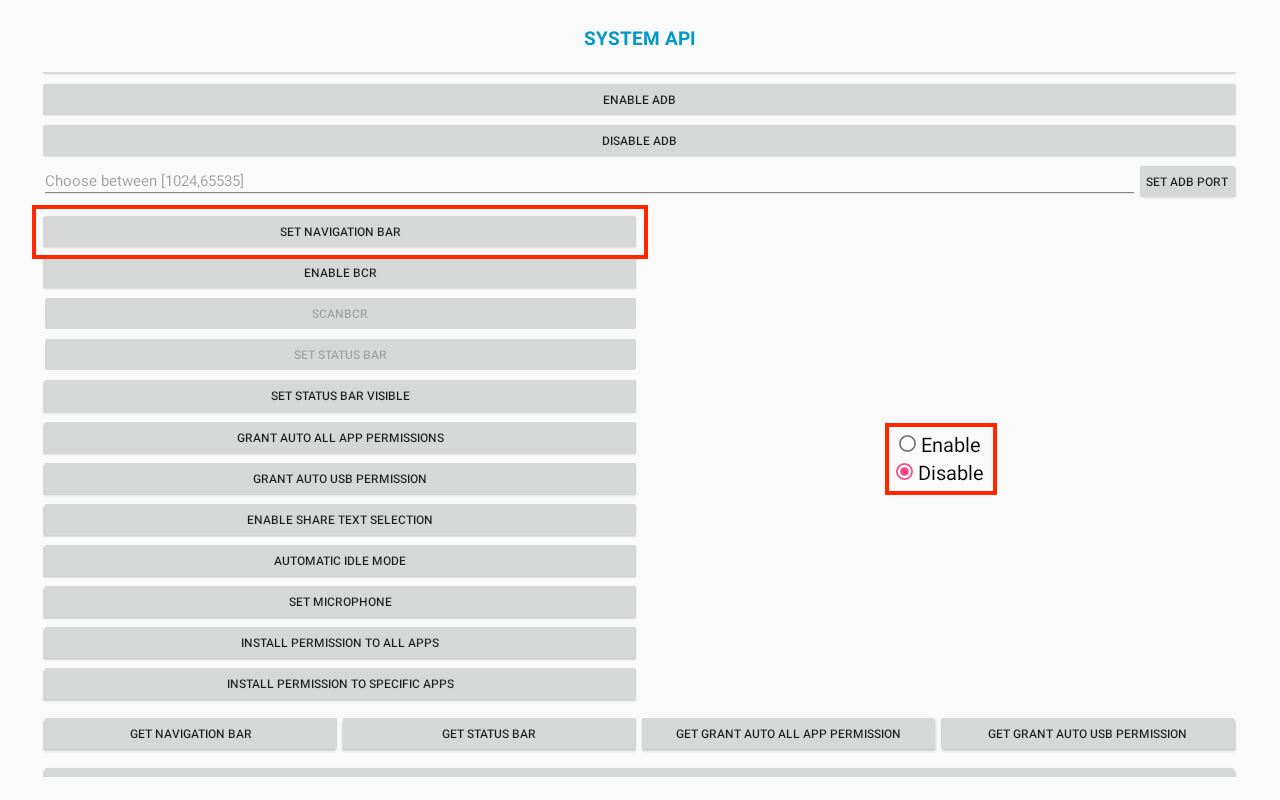

    Setting Navigation Bar to Disable in System API Menu

💻 Application Code Integration:

To implement this programmatically within your custom Android APK, import the EloViewHomeSDK.aar library into your project and invoke the setNavigationBar(boolean enable) method from the System API class following successful token validation.

✔ Result: When disabled, the bottom navigation bar is completely removed from the screen surface, locking the interactive environment into full-screen single-app kiosk mode.

Please report any broken links by emailing elo.support@zebra.com and include a link to the knowledge article
