Connecting 3.5mm Earbuds & Headphones to Elo All-in-One Systems Without an Audio Jack

Audience: Public / Elo Customers, End Users & Integrators

Article Type: Hardware Accessories & Audio Configuration

Certain Elo All-in-One (AiO) touchcomputers and interactive displays are not engineered with a dedicated legacy 3.5mm analog audio port. To connect wired 3.5mm headphones, headsets, or earbuds, use one of the compatible USB audio adapter options detailed below.

1. USB-C to 3.5mm Audio Adapter

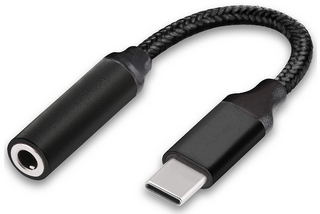

For systems equipped with Type-C connectivity, use a standard USB-C to 3.5mm Headphone Jack DAC Adapter:

2. USB-A to 3.5mm External Sound Card Adapter

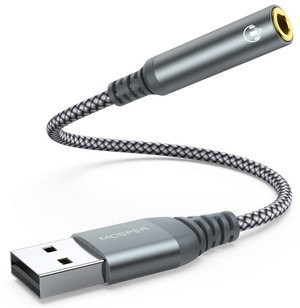

For systems with standard USB-A ports, connect a USB-A to 3.5mm Audio Adapter / Sound Card Dongle:

3. Elo Edge Connect™ 3.5mm Audio Jack Module (I-Series & Compatible Displays)

For Elo I-Series touchcomputers and displays equipped with Elo Edge Connect™ micro-USB peripheral ports, install the official modular Elo Edge Connect Audio Jack Adapter for a clean, integrated commercial finish:
