This article provides information on the 100mm Adaptor Kit – Elo P/N: E388675.

See below for information on the 100mm Adaptor Kit – Elo P/N: E388675. This adapter is intended to be used on the Elo 15-inch i-Series 2.0 with Windows units. This adapts the 75mm VESA on the back of the unit to a 100mm VESA mount to allow mounting to 100mm VESA mounts.

The kit contains the following items:

• 100mm VESA Adapter Plate (1)
• M4x16 screw (4)

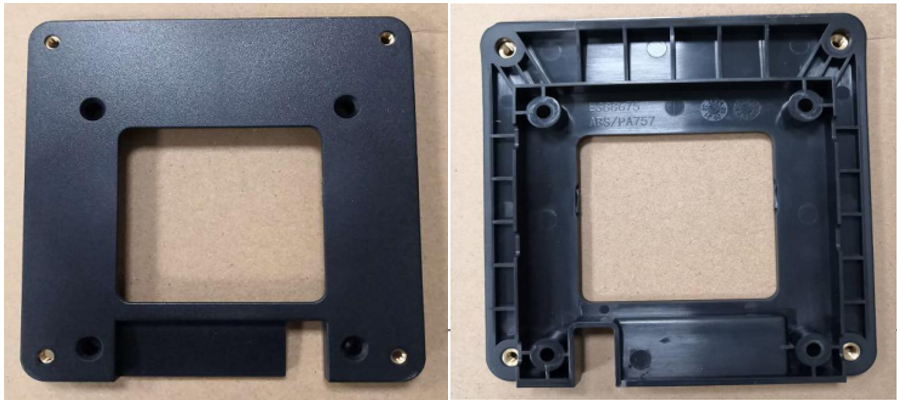

Below are photos of the adapter plate:

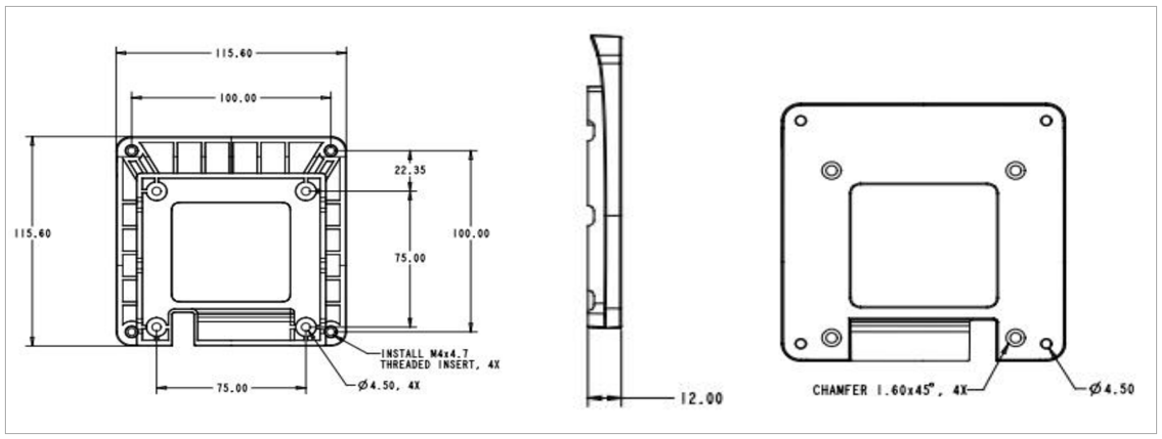

Dimensional Drawing below:

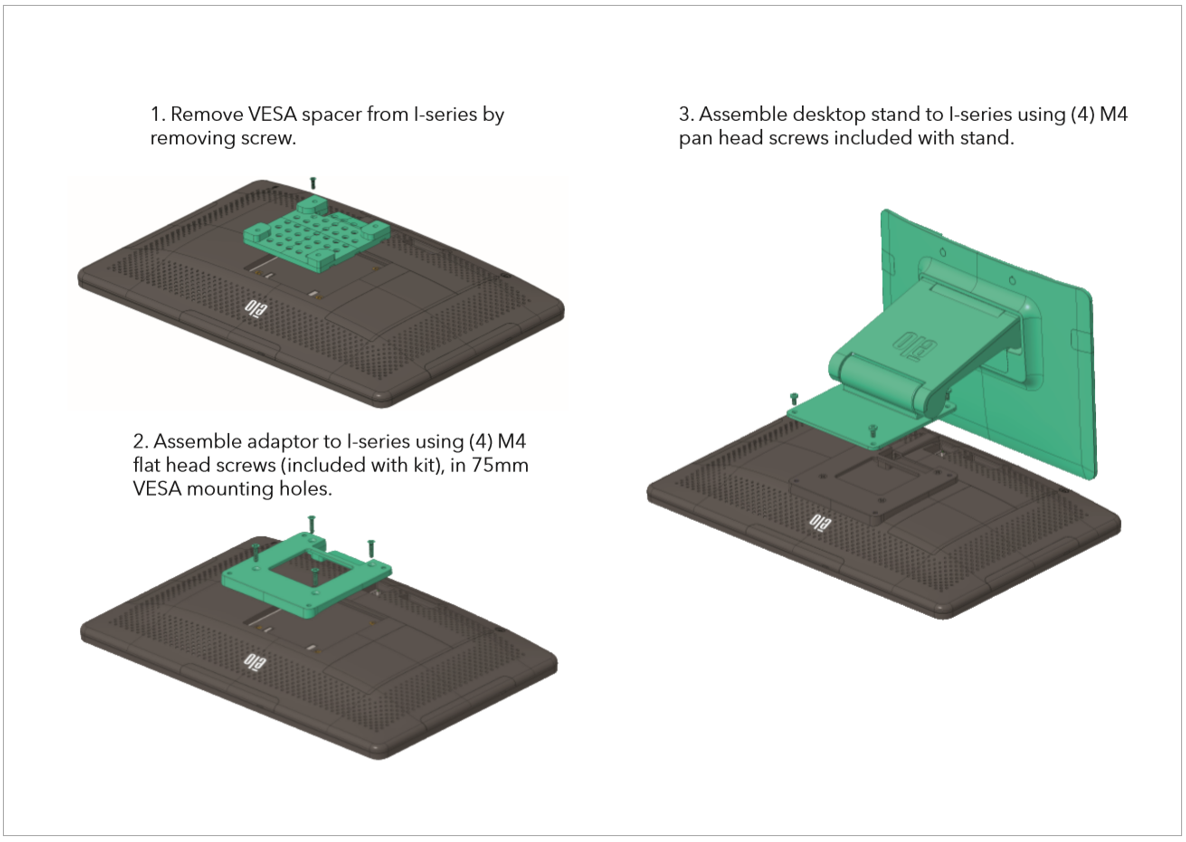

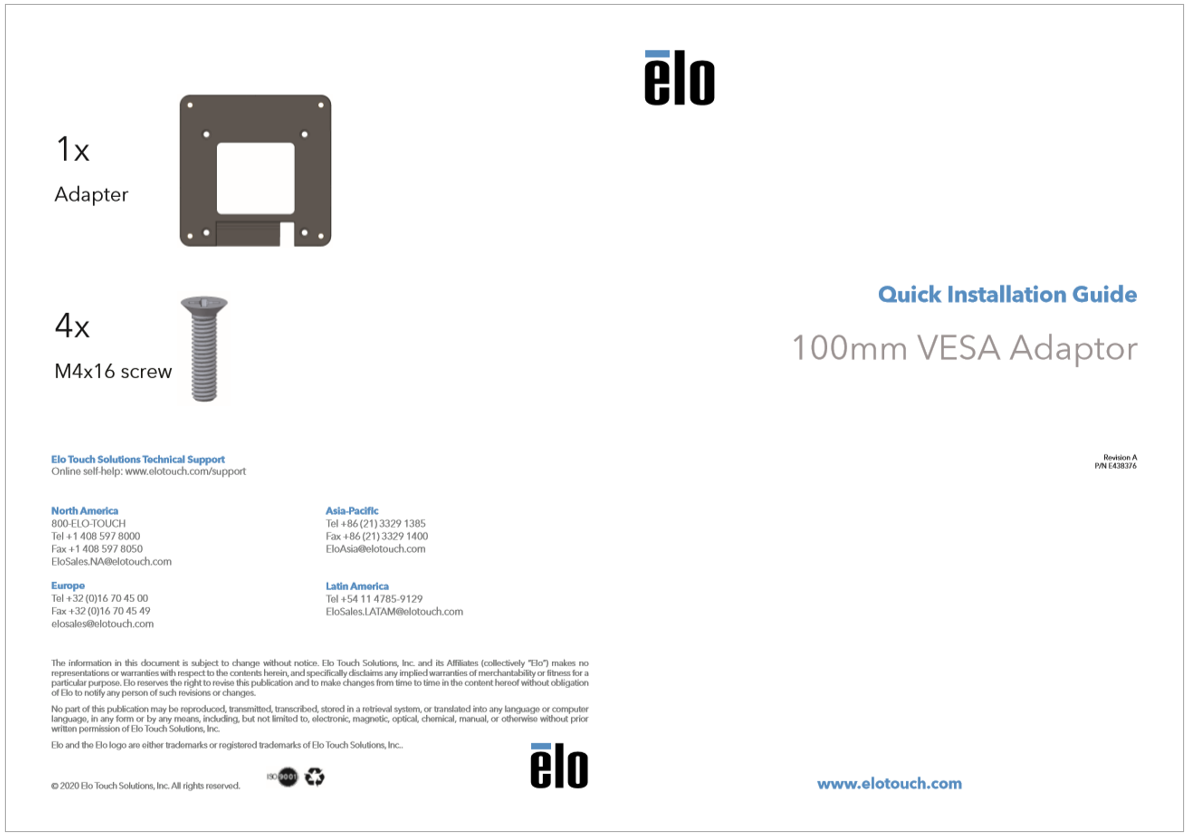

Quick Install Guide Below:
