This article provides information on how to install the Elo Conference Kit

Elo Conference Kit Hardware Quick Installation Guide

What’s Included

Conference Camera
i5 Windows 10 Computer Module with Applications
2x Active Stylus 2x Passive Stylus
Stylus Tray Software License Cards
Elo Hub

Other Accessories
Computer Module - 4x M6x50 screws, 4x M8x50 screws, 4x Spacers | Stylus Tray - 2x thumb screws | Conference Camera - 2x thumb screws | Elo Hub - Reference Guide, Receiver Board with 4x screws, 2x Docking tray covers with 3x screws, 5 meter CAT6 Cable, 1x HDMI Cable, 1x USB C Cable & Type C to A adapter, 2x Cable Locking Bracket with 2x Screws

What’s Needed
Compatible Elo display, wall mount or stand with 600x600 or 400x400 VESA, short Philips head screwdriver

Hardware Installation Steps
Note: Read entire guide before beginning installation in order to plan out mounting location, cable routing, and hub placement. Elo offers recommendations on how to plan display mounting, cable routing, camera location, and conference table positioning in the Elo Collaboration Solution Guide available online at www.elotouch.com
Scan QR Code to view website:

1. Install Elo Computer Module (ECM)

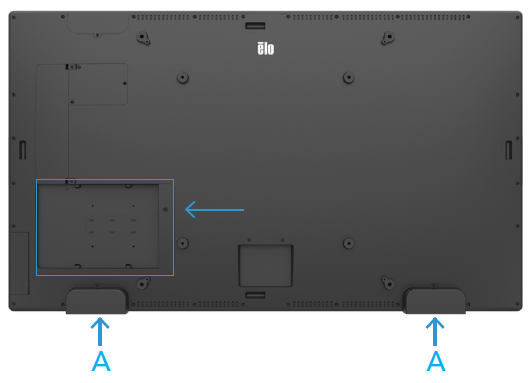

A. Unpack display and carefully lay face down on table. (Do not lift by the speakers or rest the display on the speakers.)

B. Unscrew and remove the (ECM) docking tray cover on back of display.

C. Unpack ECM from huddle kit box. (Be sure to save the two license cards included.)

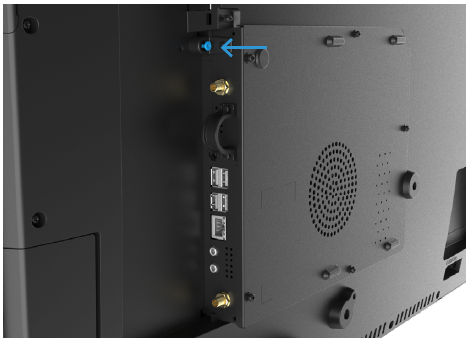

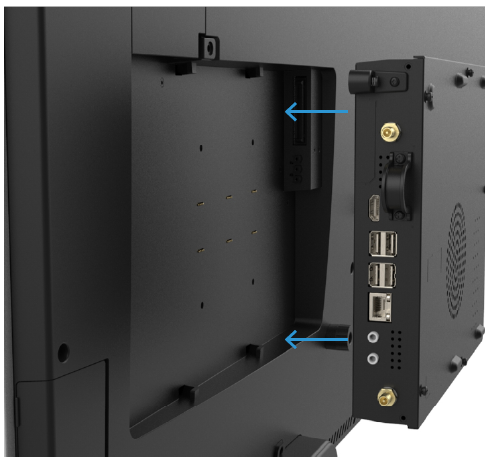

D. Place the ECM over the guides on the rear of display and slide ECM back to seat the connector.

E. Tighten the security screw on the front of the ECM.

2. Install Elo Hub Receiver Board

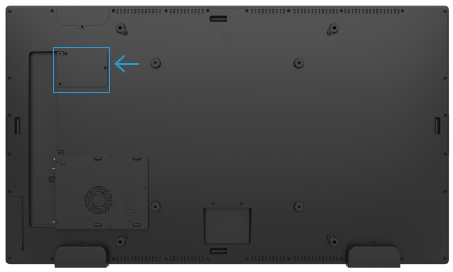

A. Remove the three screws from the receiver board blank cover from the back of the display and discard the cover.

B. Unpack Receiver Board, new 5553 and 6553 Receiver Board covers and screws from conference kit box.

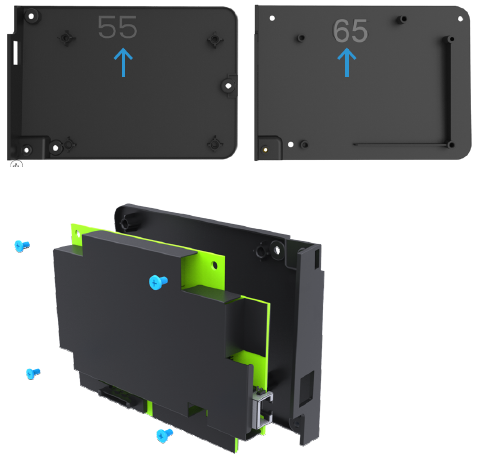

C. Select a new receiver board cover for either 5553L or 6553L display and mount Receiver Board to it with screws provided. Use the cover marked “55” for the 5553L and the cover marked 65” for the 6553L.

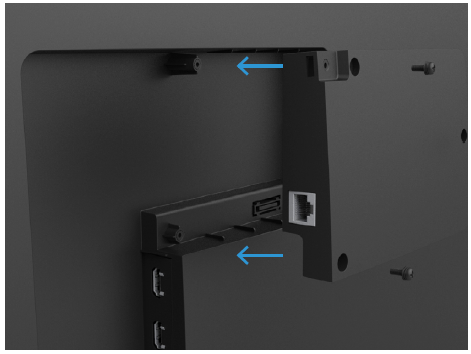

D. Connect the Receiver board (with cover attached) to the docking connector on display. Secure the Receiver board cover with the three screws.

3. Install Conference Camera

A. Unpack Conference Camera from Conference Kit box.

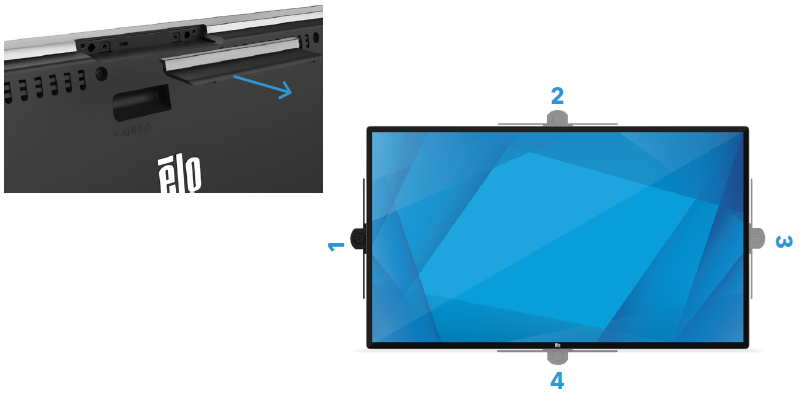

B. Choose one mounting location – top, bottom, or either side. NOTE: If mounting camera on bottom of display, install camera after wall-mounting. Also not stylus tray cannot be used in this configuration.

C. Remove the Elo Edge Connect™ port cover from chosen location.

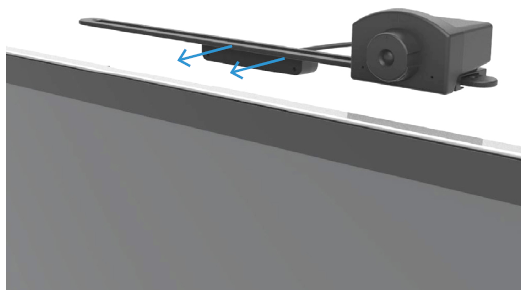

D. Plug the conference camera into the Elo Edge Connect port. Ensure the USB connector on the camera aligns with the connector on the IDS display.

E. Secure the camera to the display by inserting and tightening the long thumbscrews on both sides.

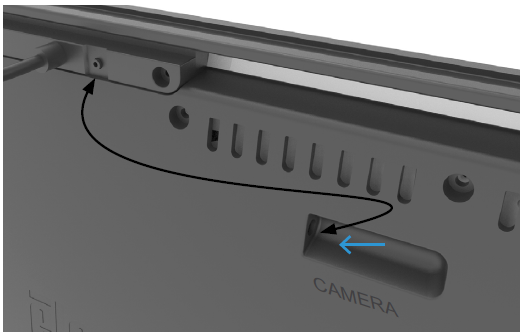

F. Connect the 2.5mm barrel jack cable between the camera and the nearest connection labeled “CAMERA” on the back of the IDS display.

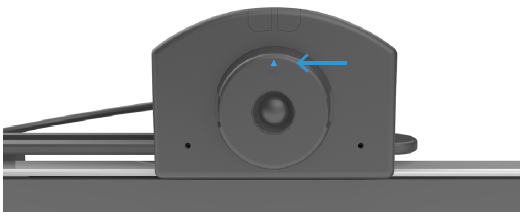

G. Ensure the image sensor is orientated so the arrow points in the upward direction by rotating clockwise or counterclockwise as needed. (For bottom mounting, the arrow must point down)

4. Install Stylus Tray

A. Unpack stylus tray from huddle kit box.

B. Remove bottom Elo Edge ConnectTM port cover.

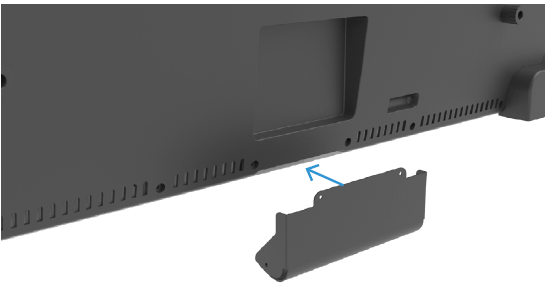

C. Secure the stylus tray to the display by inserting and tightening the stylus tray thumb screws on both sides of the bracket.

D. Place stylus for use into tray. (Use active stylus for PCAP displays and passive stylus for IR displays.)

5. Mount Interactive Display

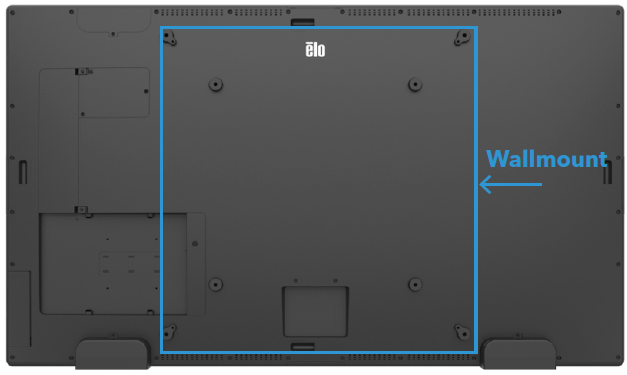

A. Mount display to the wall using Elo low-profile wall mount or third-party wall mount following instructions provided with mount. (Some third-party mounting systems may require 15 mm spacers and longer mounting screws (M6x50mm or M8x50mm) included in huddle kit to avoid interference with the ECM.)

6. Install Elo Hub™

A. Unpack conference hub and accessories from conference kit.
NOTE: A single CAT6 cable is provided for direct hub connection to display. Additional CAT6 interconnect hardware may be added as required (see Elo Hub User Manual for examples). Total length of cable routing should not exceed 35 meters.

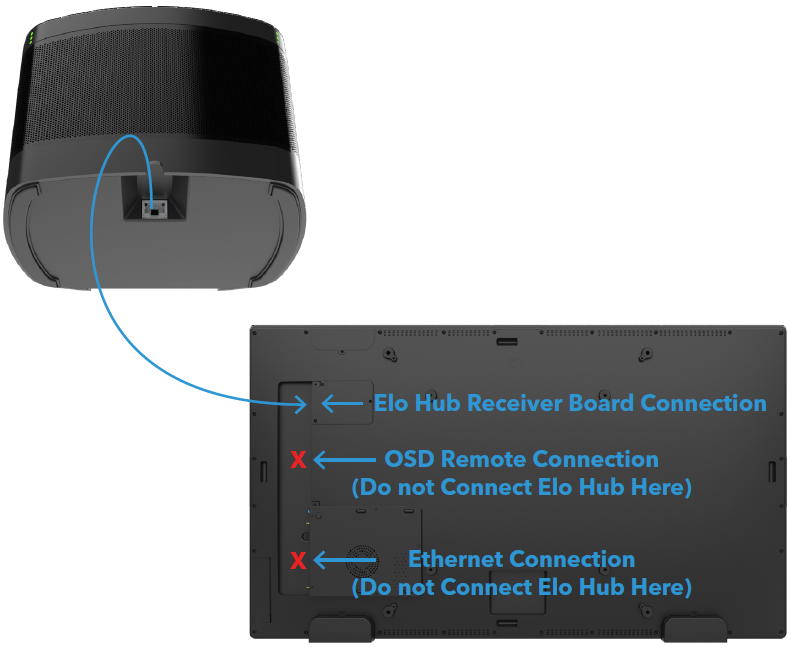

B. Connect one side of the CAT6 cable to the Elo Hub Receiver board on the Display.

C Route the CAT6 cable to the Elo Hub placed on table and connect.

D. Connect supplied HDMI and USB-C cables to the Elo Hub and attach locking brackets with screws to secure the cables to the Elo Hub. Cables are used for device connection.

7. Connect Cables and Power On the System

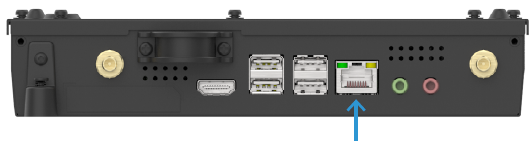

A. Connect an ethernet cable to the ECM for internet (Recommended). For wireless connection, install WiFi antennas on the ECM.

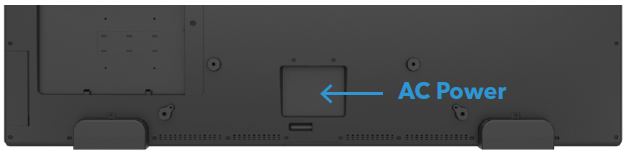

B. Connect AC power cable found in Elo display accessory box.

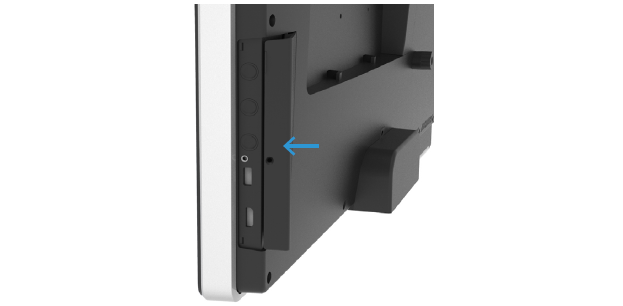

C. Open the side cover on the display and power on the system.

Download a .pdf version of the above QIG HERE

For software quick installation guide article please see KB#000002859
