This article provides information concerning E810917, Elo Cable Kit, Y Cable for IDS and Medical Grade Monitors with DICOM

VGA-RS232 y-cable kit (E810917) can be used on the IDS touchmonitor family that accept RS232 over the VGA port. This cable will allow for serial commands to be sent via the VGA channel. This cable is also used with Elo's Medical Monitors with DICOM and RS232 connections.

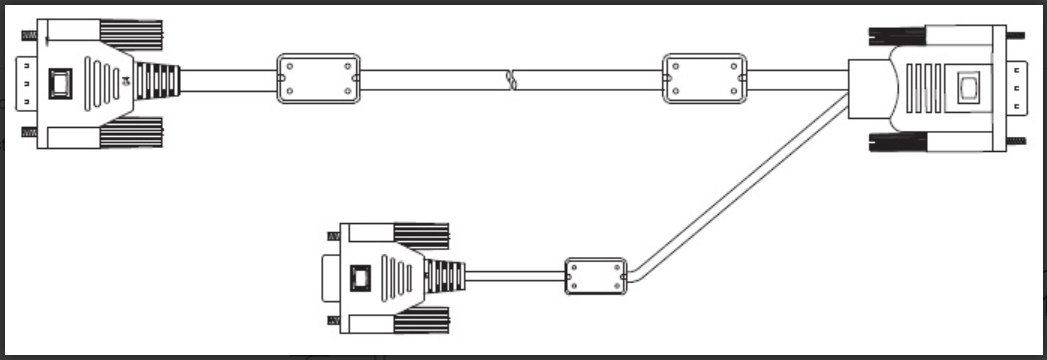

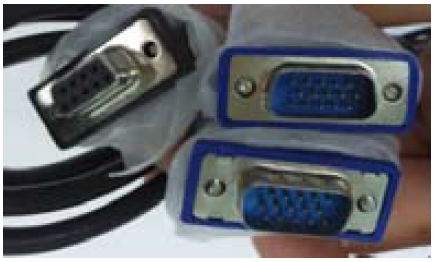

This cable has 1-Female RS232 DB-9 connector and 2-Male VGA 15-pin connectors.







These cables can be purchased from Elo resellers such as the ones below:

• Barcode Giant: https://www.barcodegiant.com/elo/part-e810917.htm
• CDW: https://www.cdw.com/product/Elo-RS-232-Y-Cable-Kit/6164302?pfm=rvi?pfm=rvi
• Gemini Computers: https://www.geminicomputersinc.com/e810917.html
• TouchWindow: https://www.touchwindow.com/p/E810917.html
• Zones: https://www.zones.com/site/product/index.html?id=105341571
