This article provides the specs and pin-out information for Elo's USB-C cable
If you wish to source your own USB-C cable from a 3rd party, see below for electrical and wire gauge specs.
- Backwards compatible with USB 2.0 and USB 3.1
- Power delivery 5V 3A/9V 3A/15V 1.8A/20V 1.35A

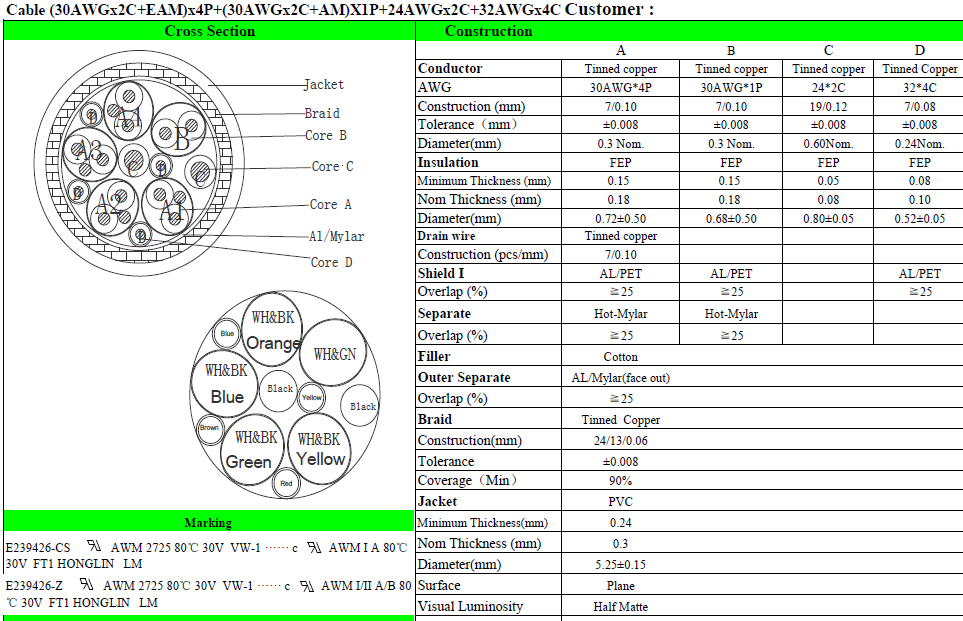

- Wire gauge, see below for Elo's P/N: E710364 cable design/guage
Please see the table below for pinout information regarding the USB-C cable (E710364).
| P1 (USB TypeC) | P2 (USB TypeC) | |
| GND | GND | |
| TX1+ | TX1+ | |
| TX1- | TX1- | |
| VBUS | VBUS | |
| CC1 | CC1 | |
| D+ | D+ | |
| D- | D- | |
| SBU1 | SBU1 | |
| VBUS | VBUS | |
| RX2- | RX2- | |
| RX+ | RX+ | |
| GND | GND | |
| GND | GND | |
| TX2+ | TX2+ | |
| TX2- | TX2- | |
| VBUS | VBUS | |
| CC2 | CC2 | |
| D+ | D+ | |
| D- | D- | |
| SBU2 | SBU2 | |
| VBUS | VBUS | |
| RX1- | RX1- | |
| RX1+ | RX1+ | |
| GND | GND |
