Where can I find information about E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M?

This article provides information about E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

Below information is for Elo P/N: E214282: ELO-KIT-YCABLE-PUSB-12V-to-DC-USBC, 3.0M

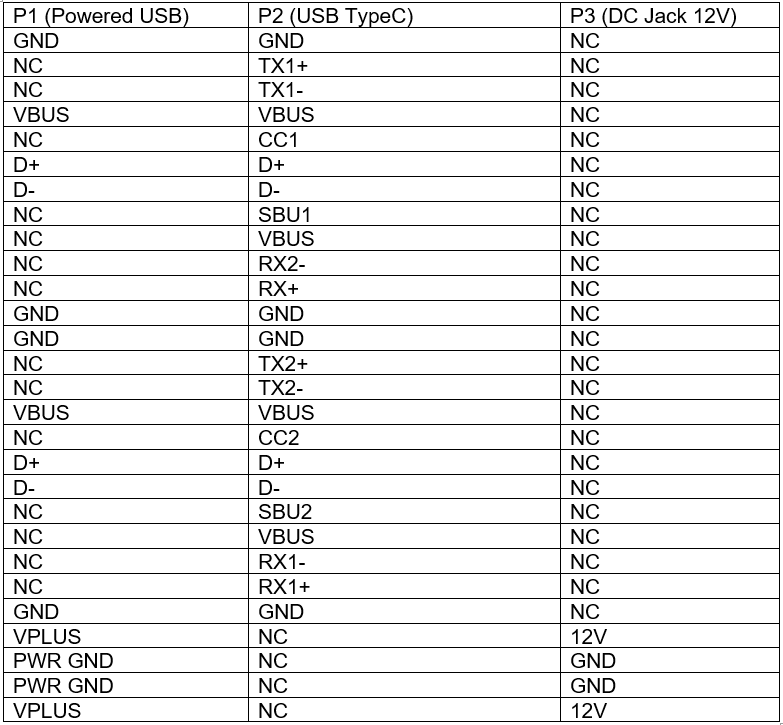

Specifications:

  • The Power-via-USB for TypeC cable shall include three types of plugs on the cable.
    • One (P1) side shall be a standard Powered USB male plug
    • Another side shall be USB TypeC (P2) and DC jack 12V(P3)
    • The cable must be 3.0 m long, black

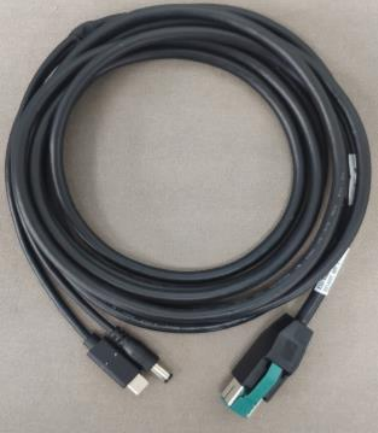

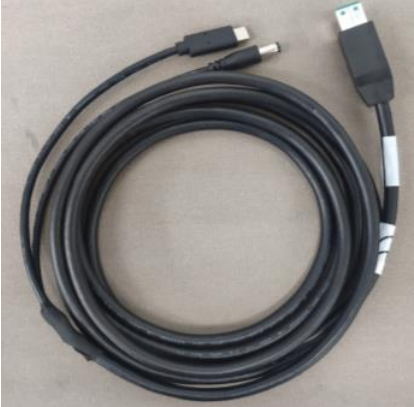

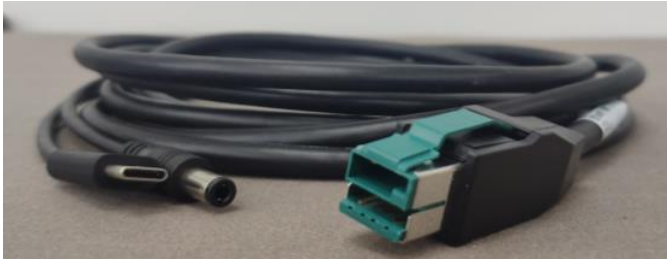

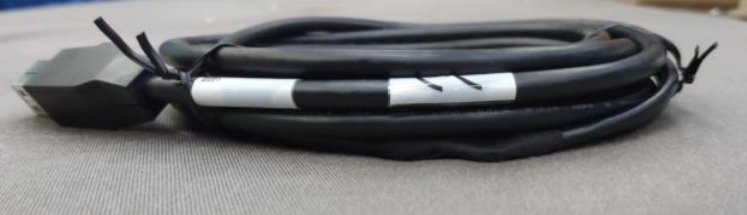

Photos
