This article describes how to install OPOS and JPOS cash drawer test solutions for PayPoint Plus for Windows

PayPoint Plus for Windows - Cash Drawer Setup and Testing Instructions

Hardware Requirements

Software Requirements

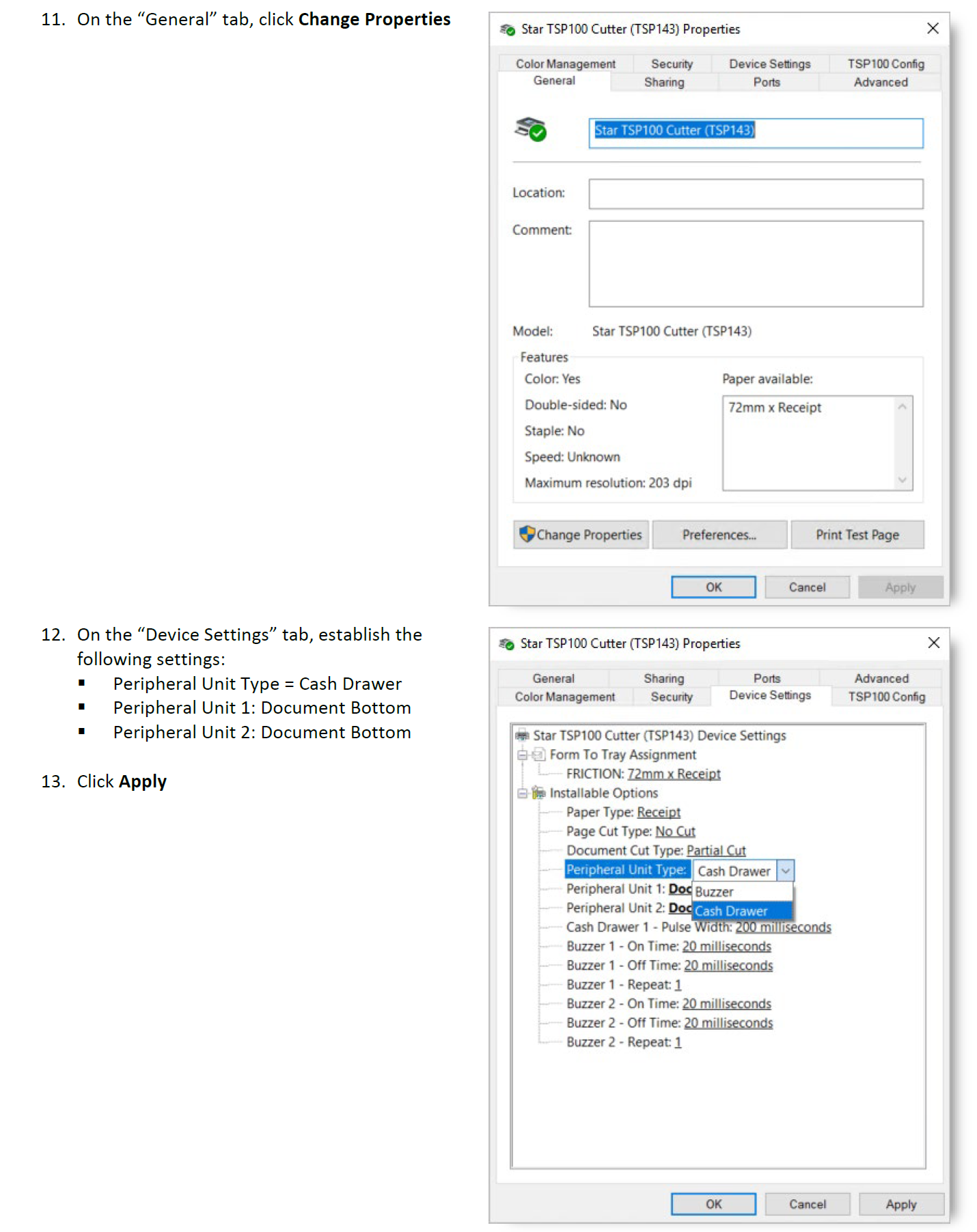

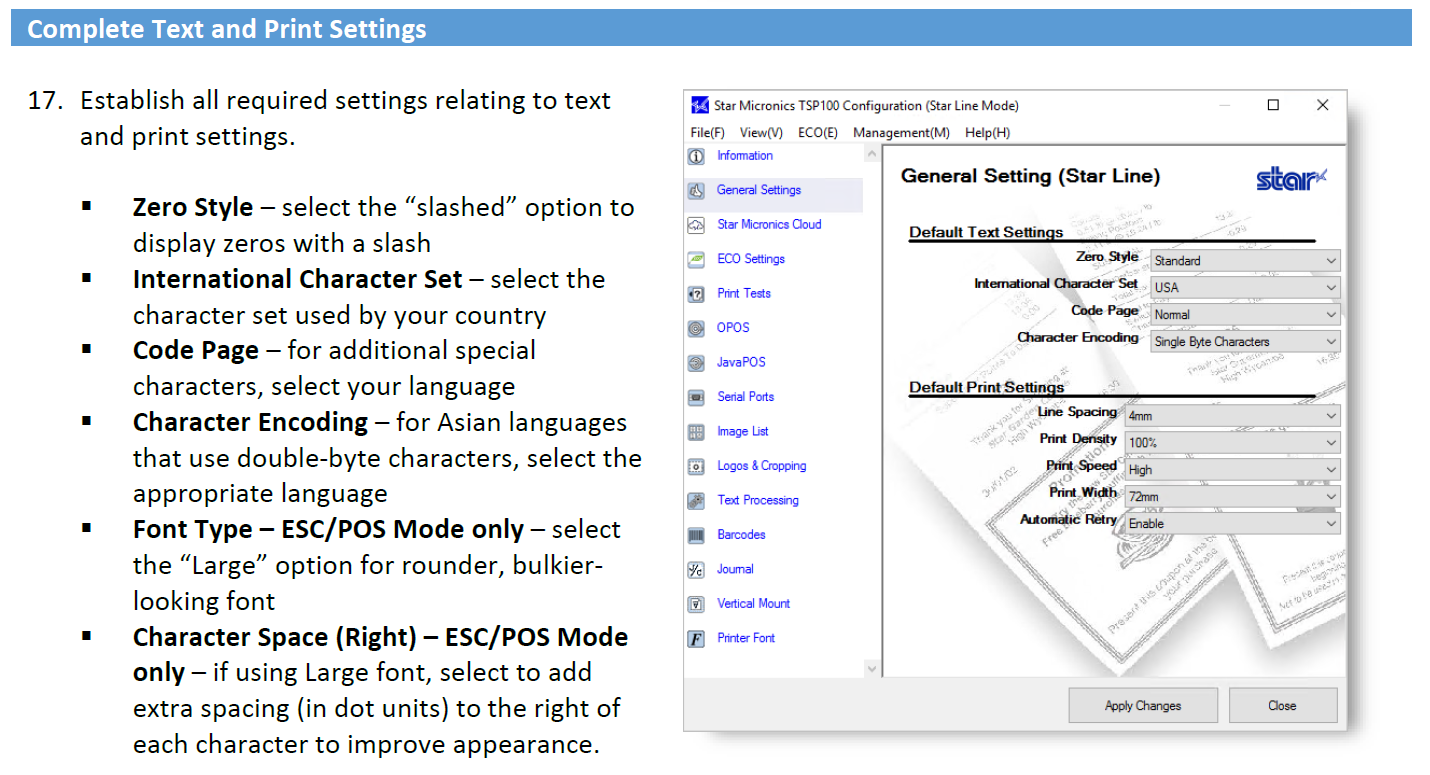

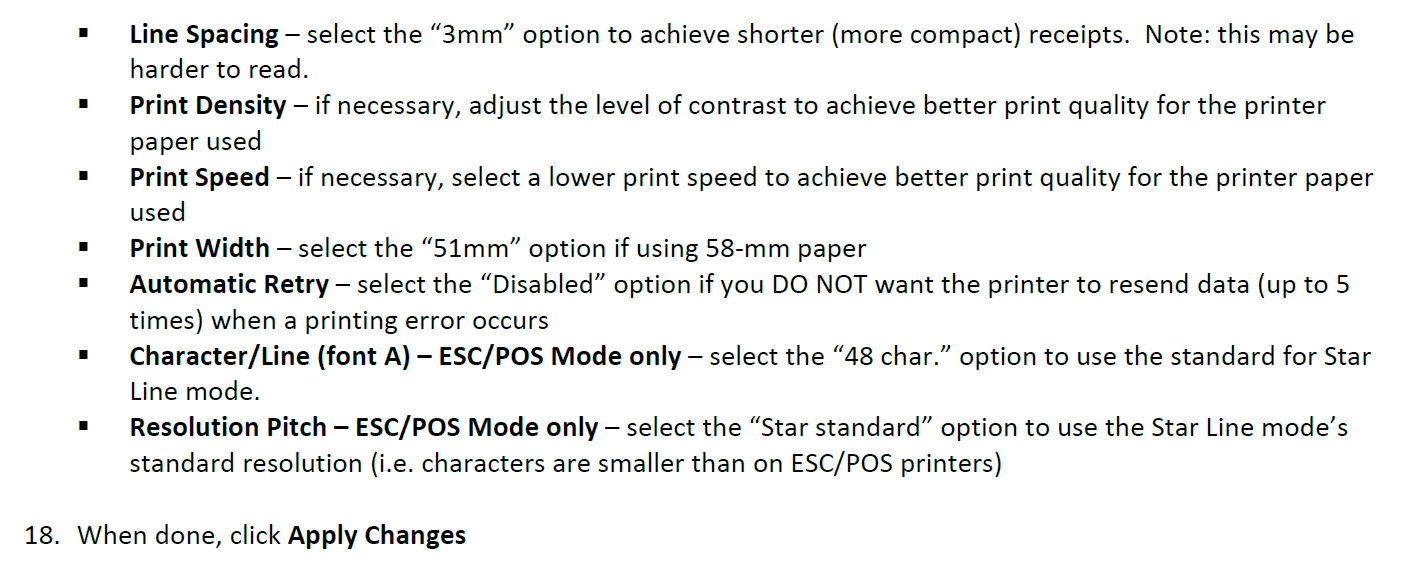

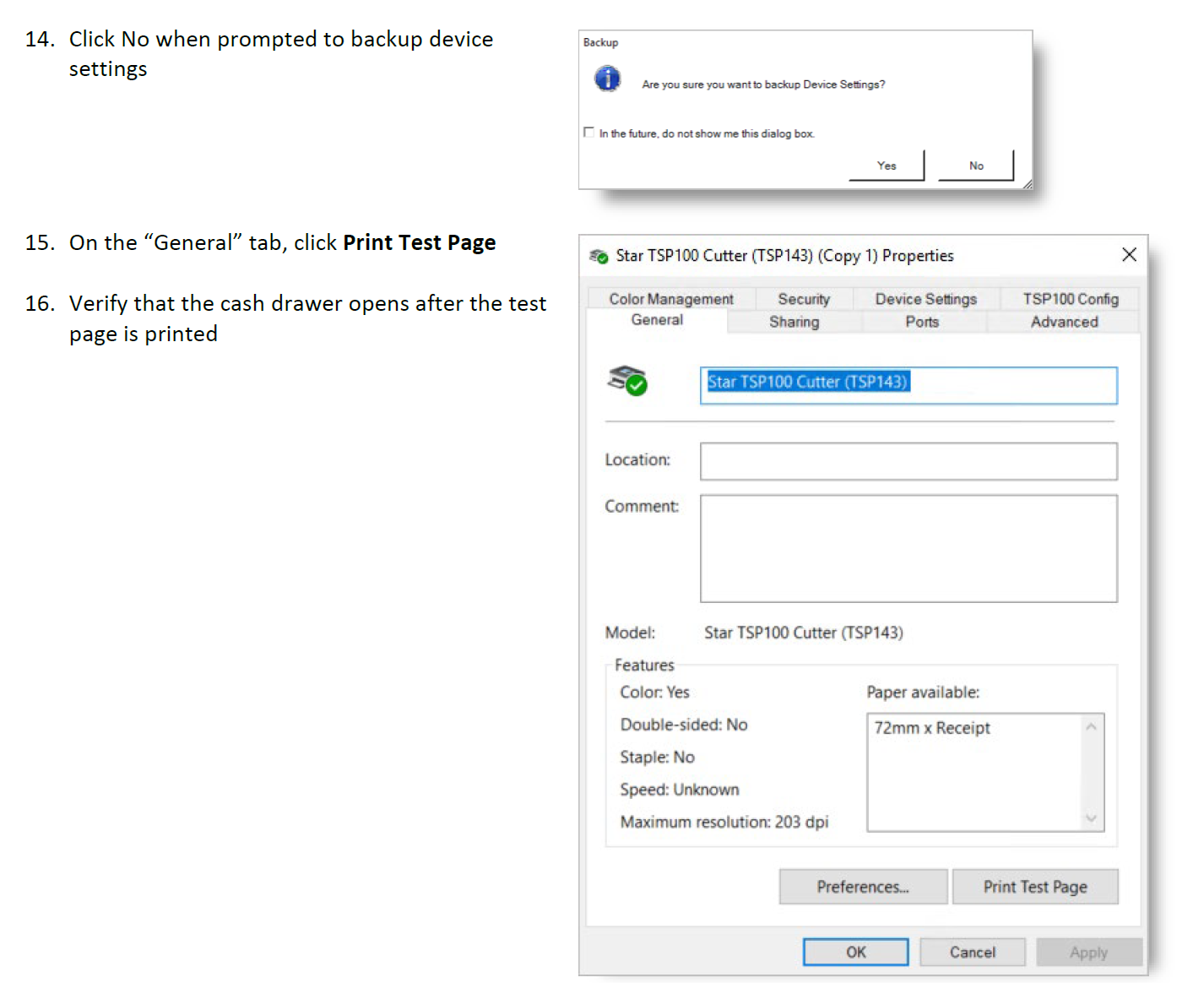

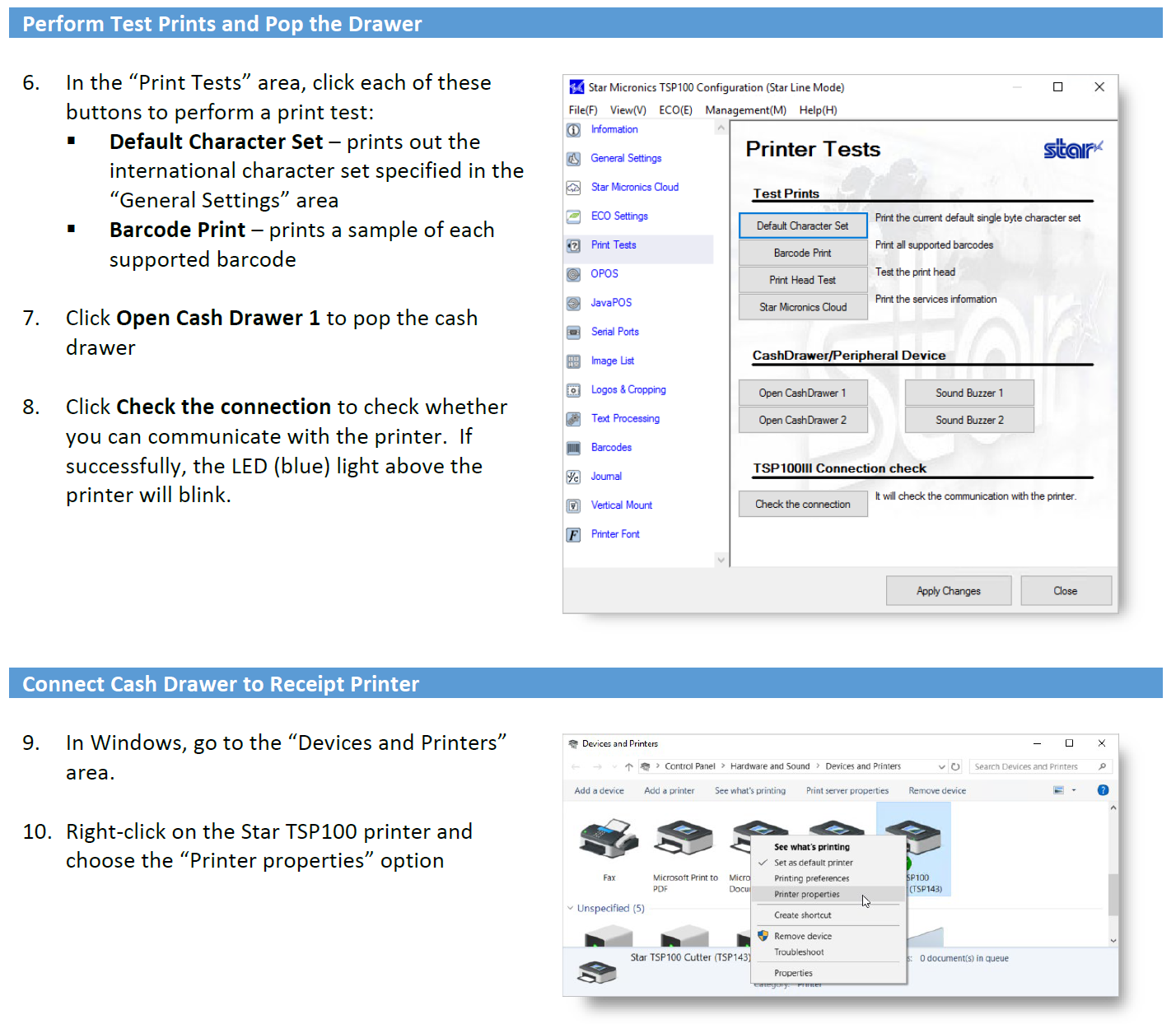

Instructions for Star Printer (OPOS) Solution

Instructions for JPOS Solution

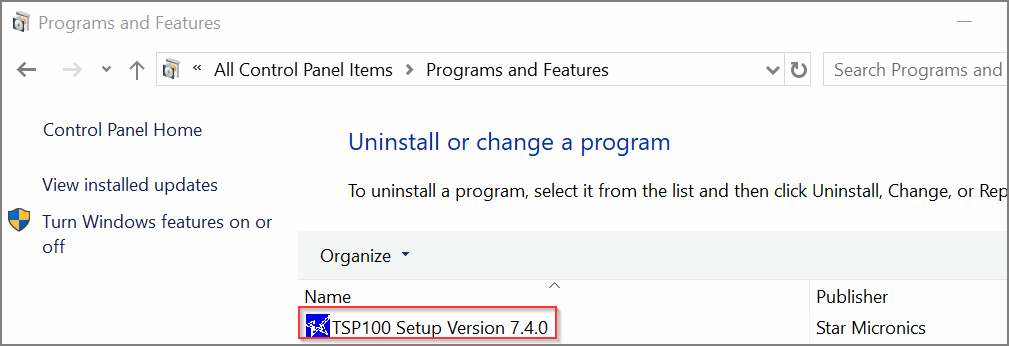

1.    Verify if the Star TSP100 printer application has been installed.

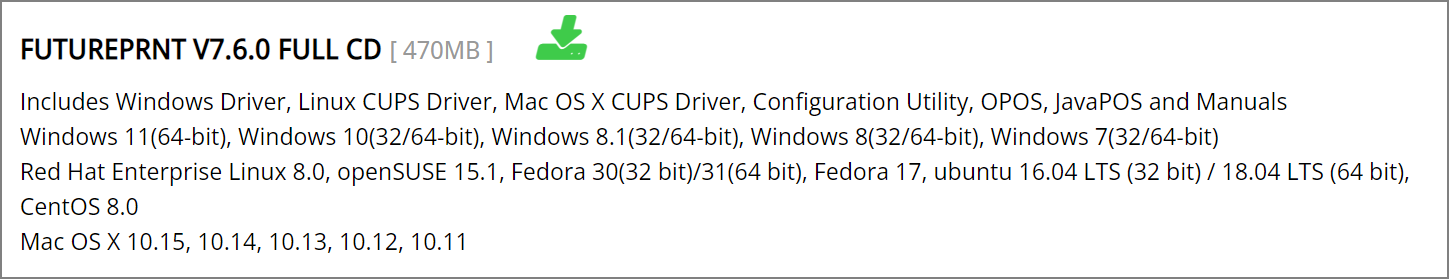

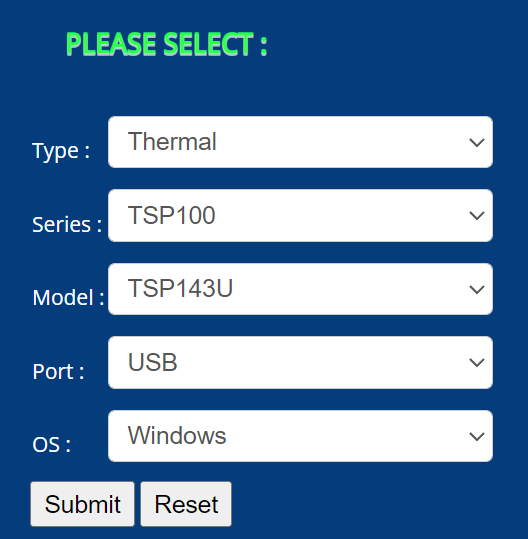

2.    If the Star printer application has not been installed, find a copy of the installer (tsp100_v740.zip) located at C:\EloTouchSolutions\Peripherals\Printer or download it from directly from the printer manufacture.
http://www.starasia.com/Download.asp




3.    Download jdk-7u80-windows-x64.exe and install

• Find a copy of the installer in the Files section of this article

4.    Download EloJPOS_v2.0-stable.zip and extract the file

• Find a copy of the application in the Files section of this article

5.    Install EloJPOS.msi, and an EloJPOS app shortcut will be created on the desktop

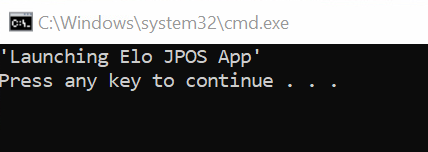

6.    Launch the EloJPOS app, and a console window will automatically open

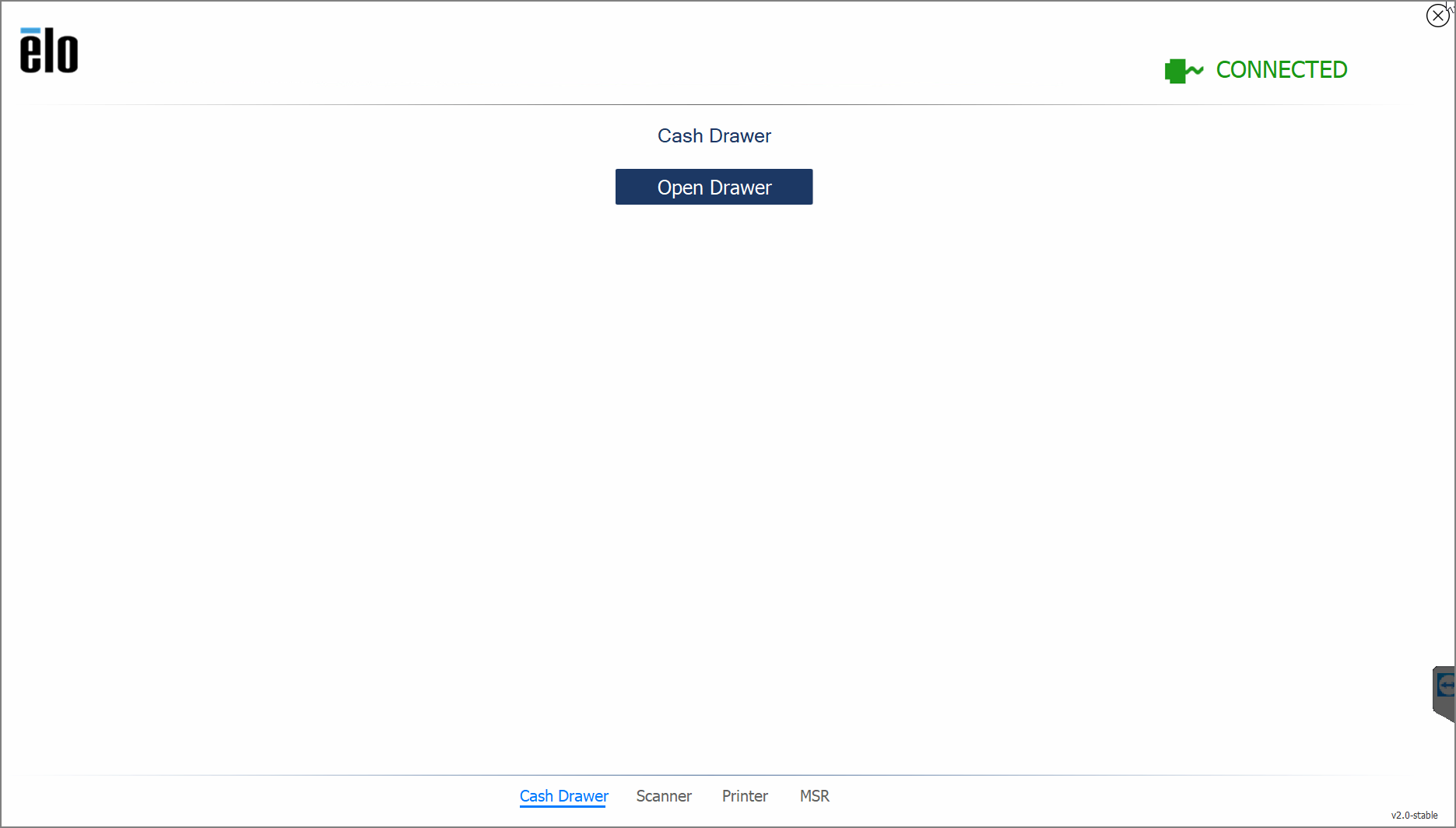

7.    The EloJPOS app will appear like the image shown below

8.    Click Open Drawer


Troubleshooting:

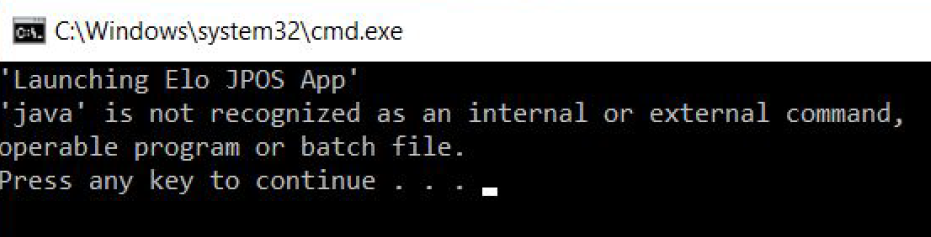

If the console window shows an error ‘java’ is not recognized, it means that the JDK installer is not installed yet. Install the Java Development Kit 1.7 (JDK) and relaunch the EloJPOS app. If JDK has been successfully installed and ‘java’ is not recognized, the Java bin folder will need to be added to System Environment Variable.
