This article lists information for Elo External 80W power brick and cable kits for outdoor open frames

Kit Contents:

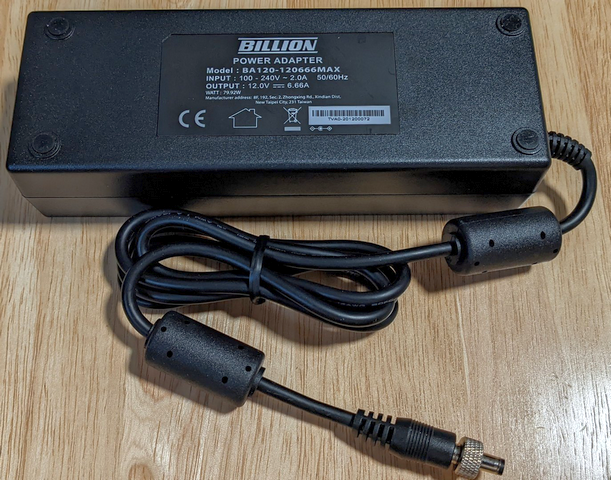

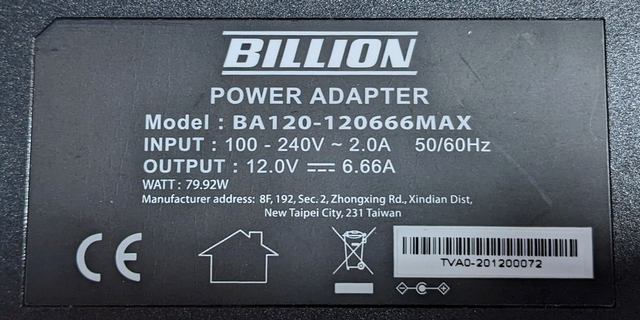

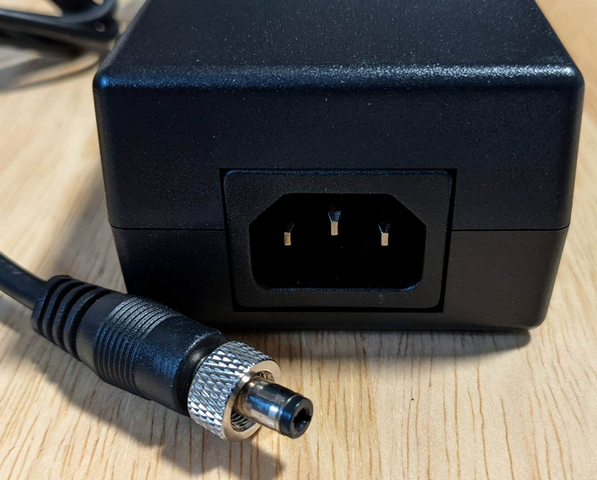

• DC Power Brick: E679339, ELO-PWR-BRICKCAB-LVL6-NA,12V,6.7A,80W-R
• AC Power Cord - Part Number will vary depending on which region purchased for, see below:

The same power adapter is used in the below kits. The only difference is the supplied AC power cord will be different for each region:

• North America: External 80W power brick and cable, LVL6 America – Elo P/N: E596619, ELO-PWR-BRICKCAB-LVL6-NA,12V,6.7A,80W-R North America E679339 Black, 1.8m, NA plug to IEC 60320-C13
• Europe/Korea: External 80W power brick and cable, LVL6 Europe – Elo P/N: E596821, ELO-PWR-BRICKCAB-LV6-EUKR,12V,6.7A,80W-R Europe or Korea E679339 Black, 1.8m, EU/KR plug to IEC 60320-C13
• United Kingdom: External 80W power brick and cable, LVL6 UK – Elo P/N: E597014, ELO-PWR-BRICKCAB-LVL6-UK,12V,6.7A,80W-R United Kingdom E679339 Black, 1.8m, UK plug to IEC 60320-C13
• China: External 80W power brick and cable, LVL6 China – Elo P/N: E597205, ELO-PWR-BRICKCAB-LVL6-CH,12V,6.7A,80W-R China E679339 Black, 1.8m, CH plug to IEC 60320-C13
• Taiwan: External 80W power brick and cable, LVL6 Taiwan – Elo P/N: E597410, ELO-PWR-BRICKCAB-LVL6-TW,12V,6.7A,80W-R Taiwan E679339 Black, 1.8m, TW plug to IEC 60320-C13
• Japan: External 80W power brick and cable, LVL6 Japan – Elo P/N: E597608, ELO-PWR-BRICKCAB-LVL6-JP,12V,6.7A,80W-R Japan E679339 N/A
• Argentina: External 80W power brick and cable, LVL6 Argentina – Elo P/N: E597792, ELO-PWR-BRICKCAB-LVL6-AR,12V,6.7A,80W-R Argentina E679339 Black, 1.8m, AR plug to IEC 60320-C13
• Australia: External 80W power brick and cable, LVL6 Australia – Elo P/N: E597994, ELO-PWR-BRICKCAB-LVL6-AU,12V,6.7A,80W-R Australia E679339 Black, 1.8m, AU plug to IEC 60320-C13

Photos:

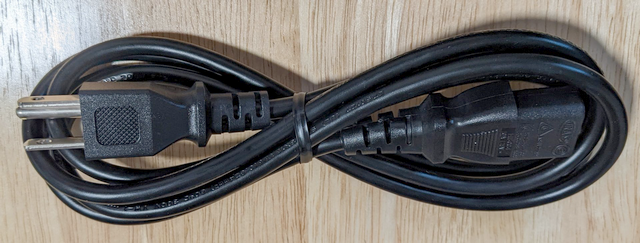

U.S. Power Cord

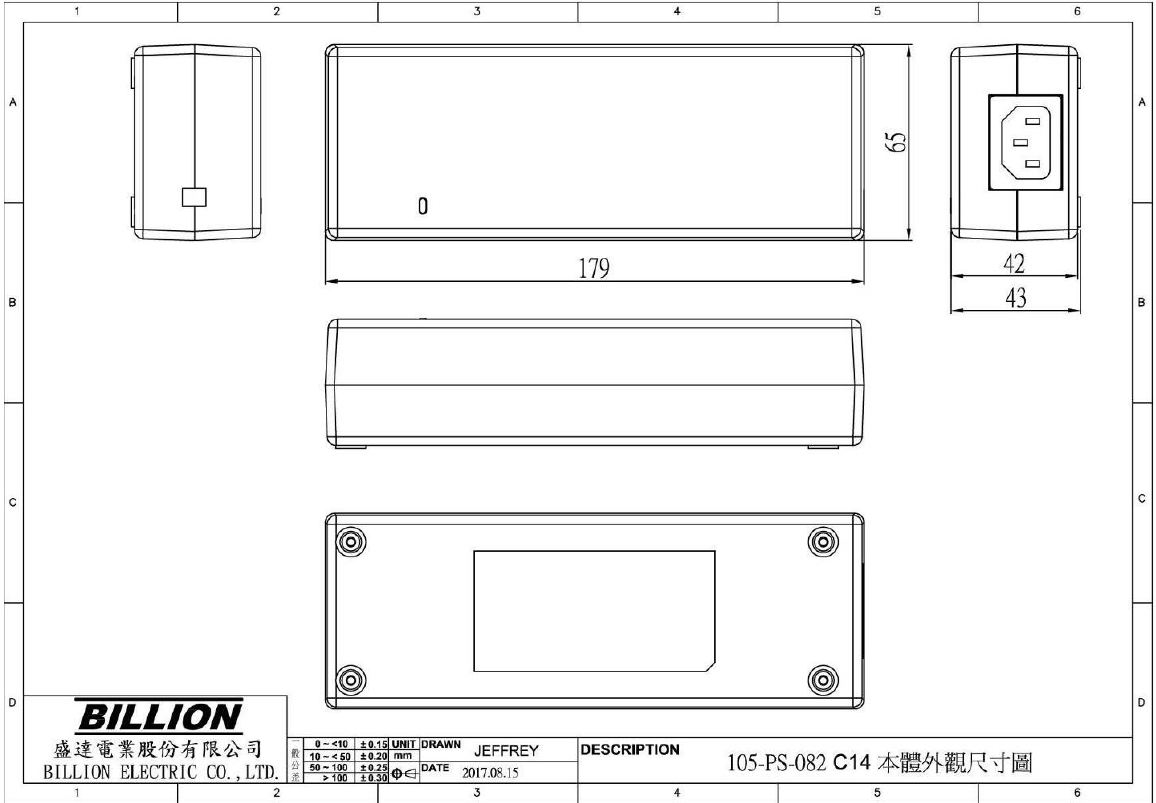

Drawings
