This article provides information for the 12V Powered USB Cables currently sold for the Elo 1002L and 1502L touchmonitors.
Part Numbers and Descriptions:
- E763022: Cable, USB 12V Pwd, 3M, 12V powered USB Y-cable 3m
- E752302: Cable, pUSB 12V 2.5mm 1.8m, Elo 12V powered USB Y-cable 1.8m

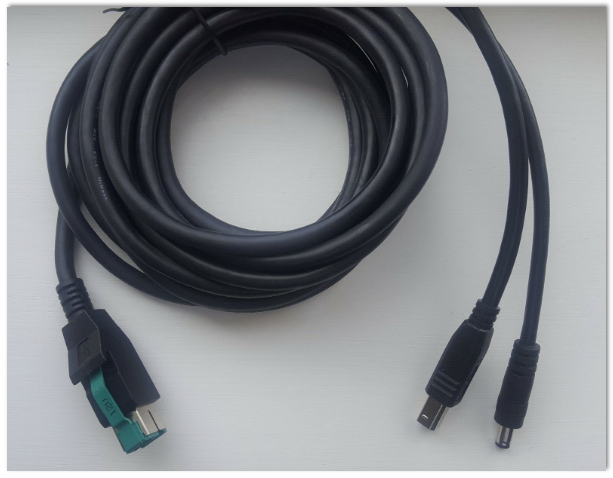

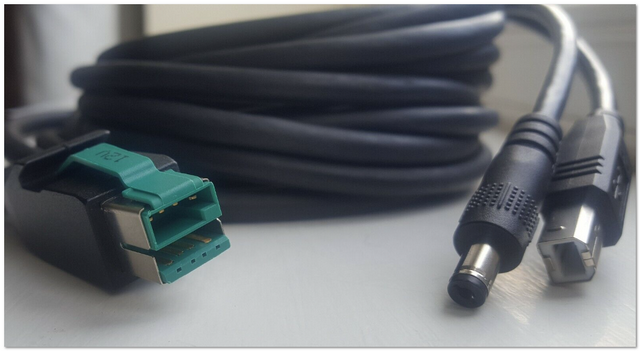

Photos (3m cable shown. The 1.8m is identical except for cable length).

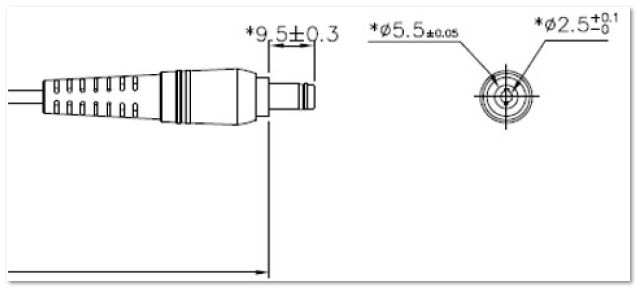

Pinout of 5.5mm x 2.5mm Barrel connector for 12V DC output
