This article provides the connections on the 2799L Outdoor Open Frame Monitor

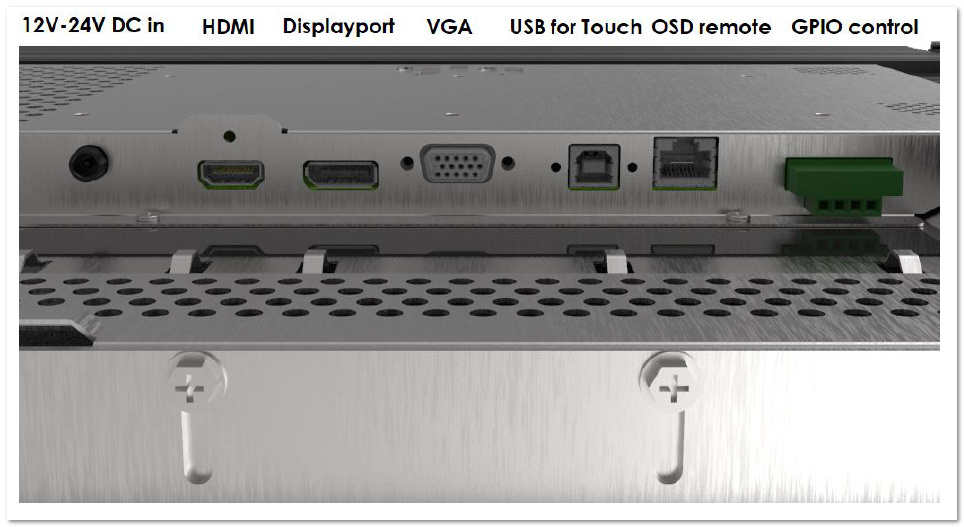

Connector Panel & Interfaces
Touchscreen Display Connections
1. Connect the HDMI, DP, or VGA video cables between the monitor’s HDMI, DP, or VGA input connector and your HDMI/DP/VGA video source. Tighten the video cable’s screws to prevent accidental disconnection when using the HDMI or VGA connector.
2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port, or connect the VGA Y-cable (optional cable kit E810917) between the monitor’s VGA connector and your PC’s COM (Serial) port. Tighten the USB cable’s screws to prevent accidental disconnection.
3. Connect a 12-24VDC power supply to the monitor’s input power jack. Elo offers a 12VDC power adapter with locking connector and regional power cable kits separately.
4. The touchscreen display ships in an ON state, video should be displayed on your monitor once the cables are connected.
2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port, or connect the VGA Y-cable (optional cable kit E810917) between the monitor’s VGA connector and your PC’s COM (Serial) port. Tighten the USB cable’s screws to prevent accidental disconnection.
3. Connect a 12-24VDC power supply to the monitor’s input power jack. Elo offers a 12VDC power adapter with locking connector and regional power cable kits separately.
4. The touchscreen display ships in an ON state, video should be displayed on your monitor once the cables are connected.
