Where can I find dimensional drawings for the 2799L Outdoor Open Frame monitor?

This article provides the dimensional drawings for the 2799L Outdoor Open Frame monitor

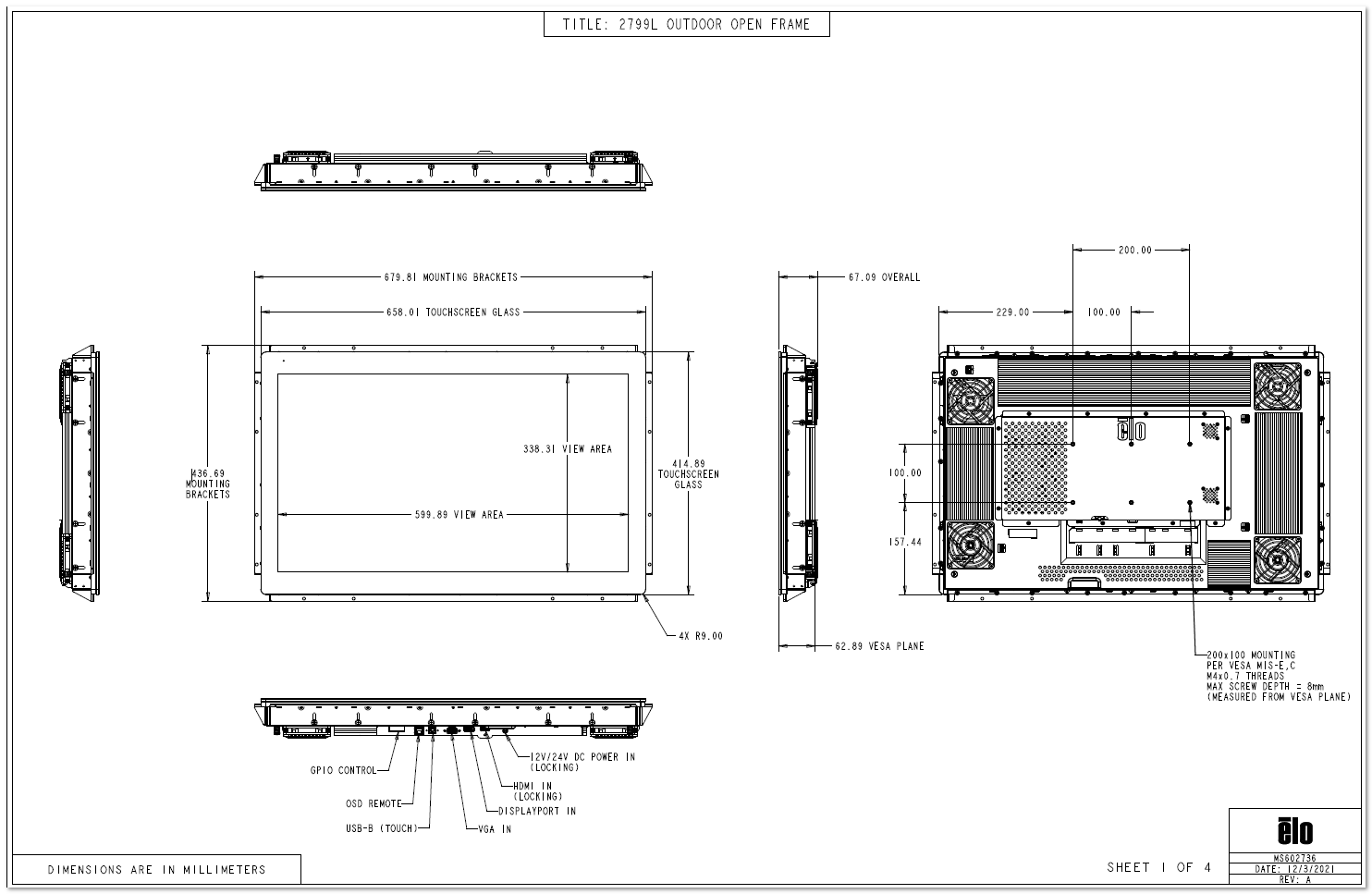

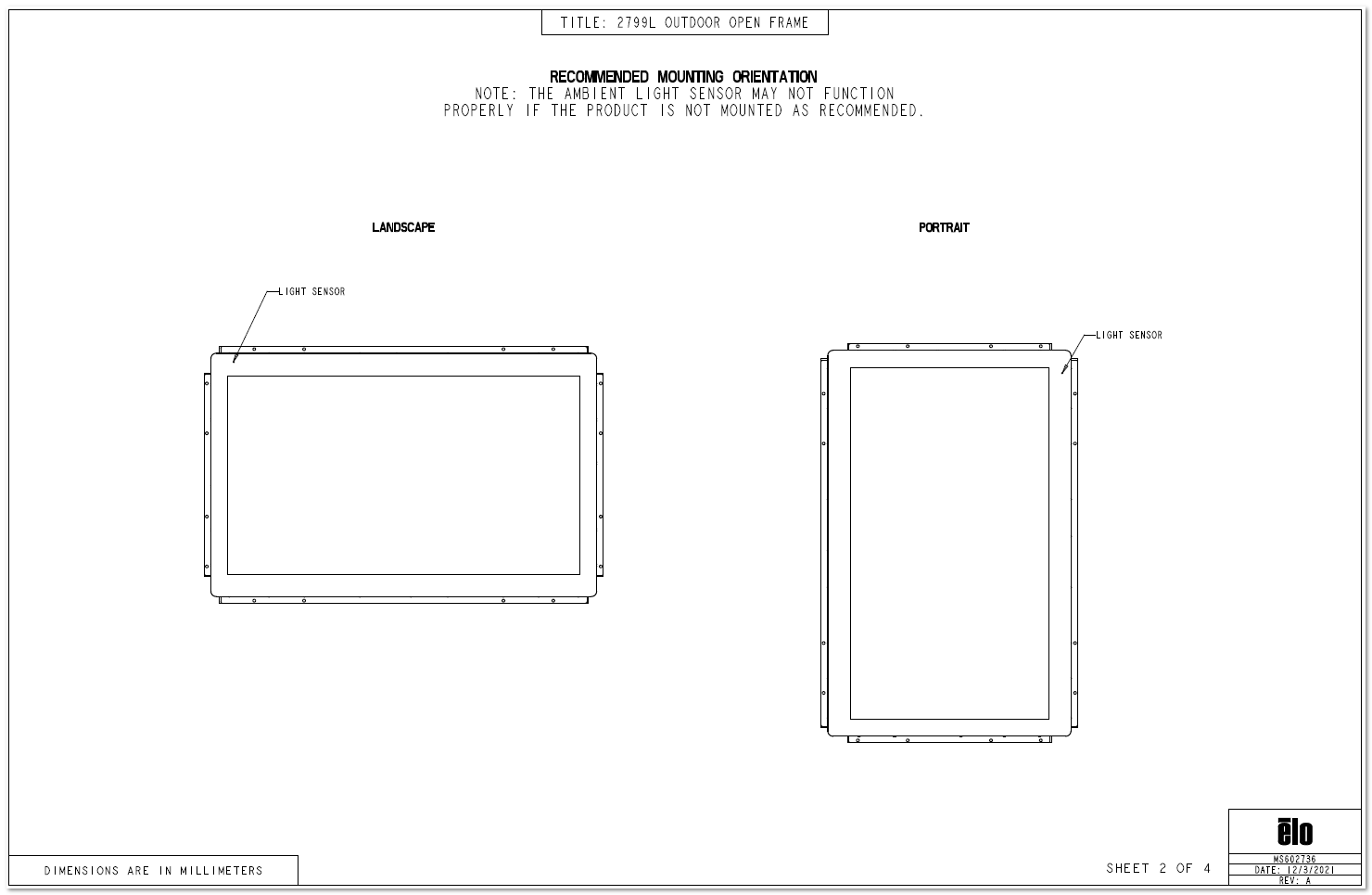

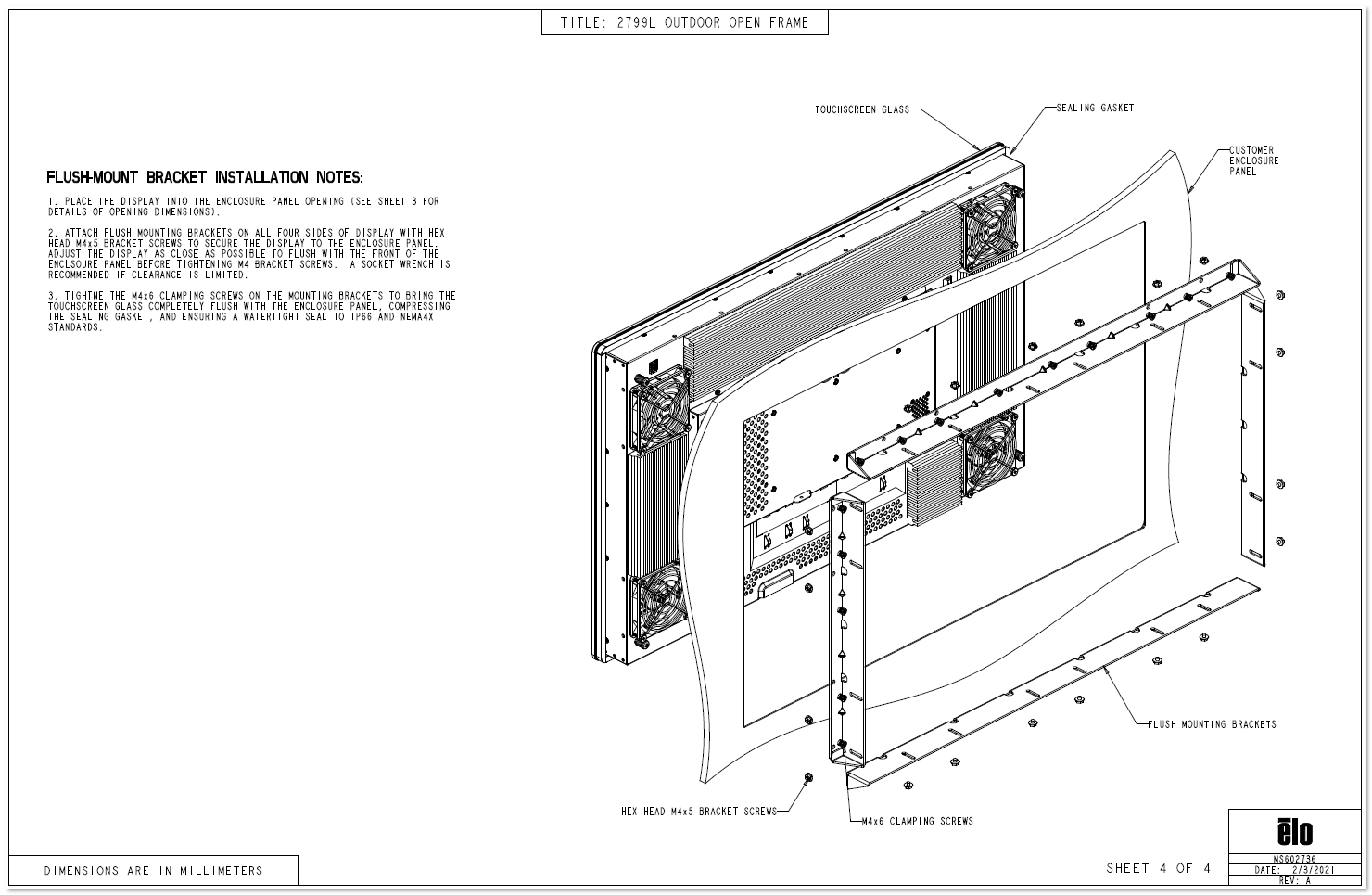

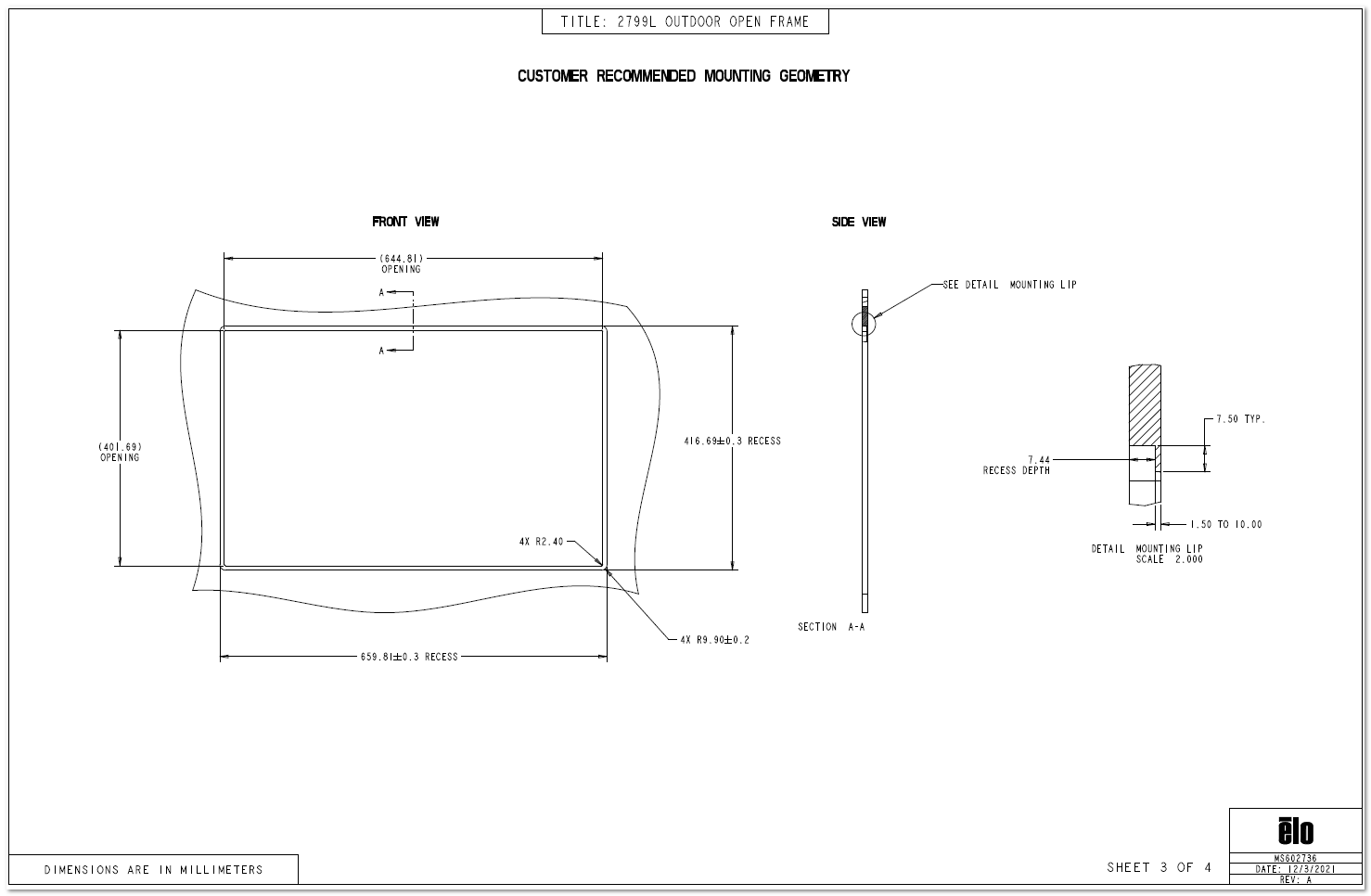

Drawings:





Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
